Weller PT D8 (Item No. 4PTD8-1) — technical description
The 4PTD8-1 is a Weller PT D8 chisel soldering tip specified for 425°C. The product is supplied individually (quantity per pack: 1) and is intended as a replaceable tip for selected Weller soldering irons. The description below is based on the manufacturer's information.

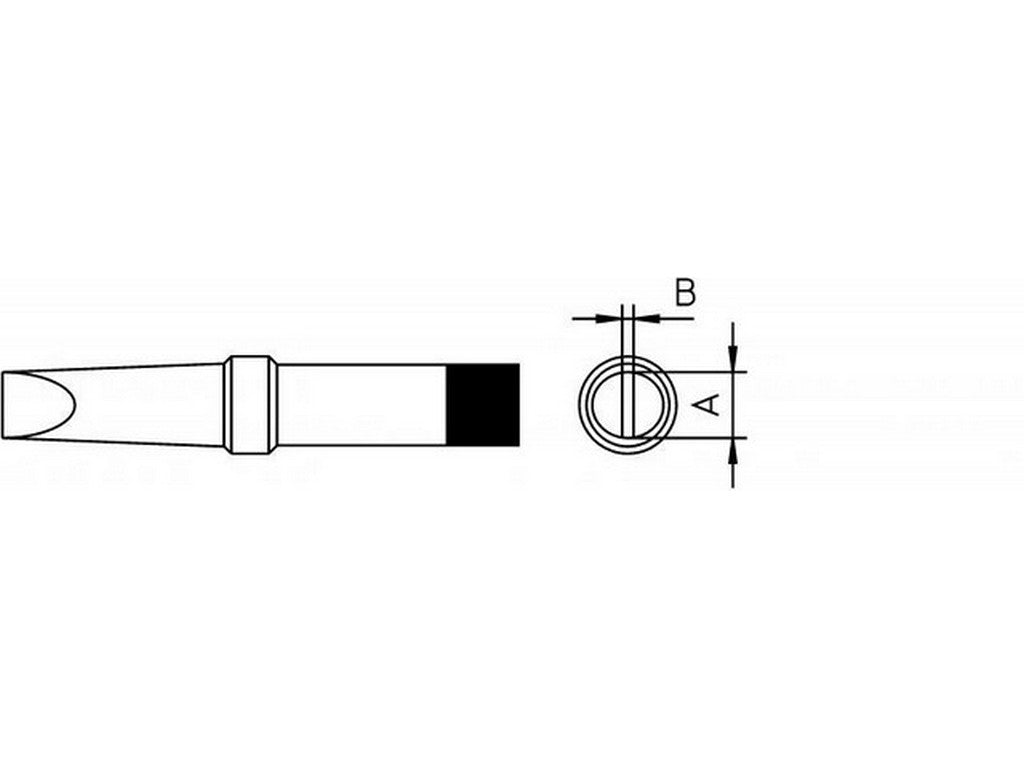

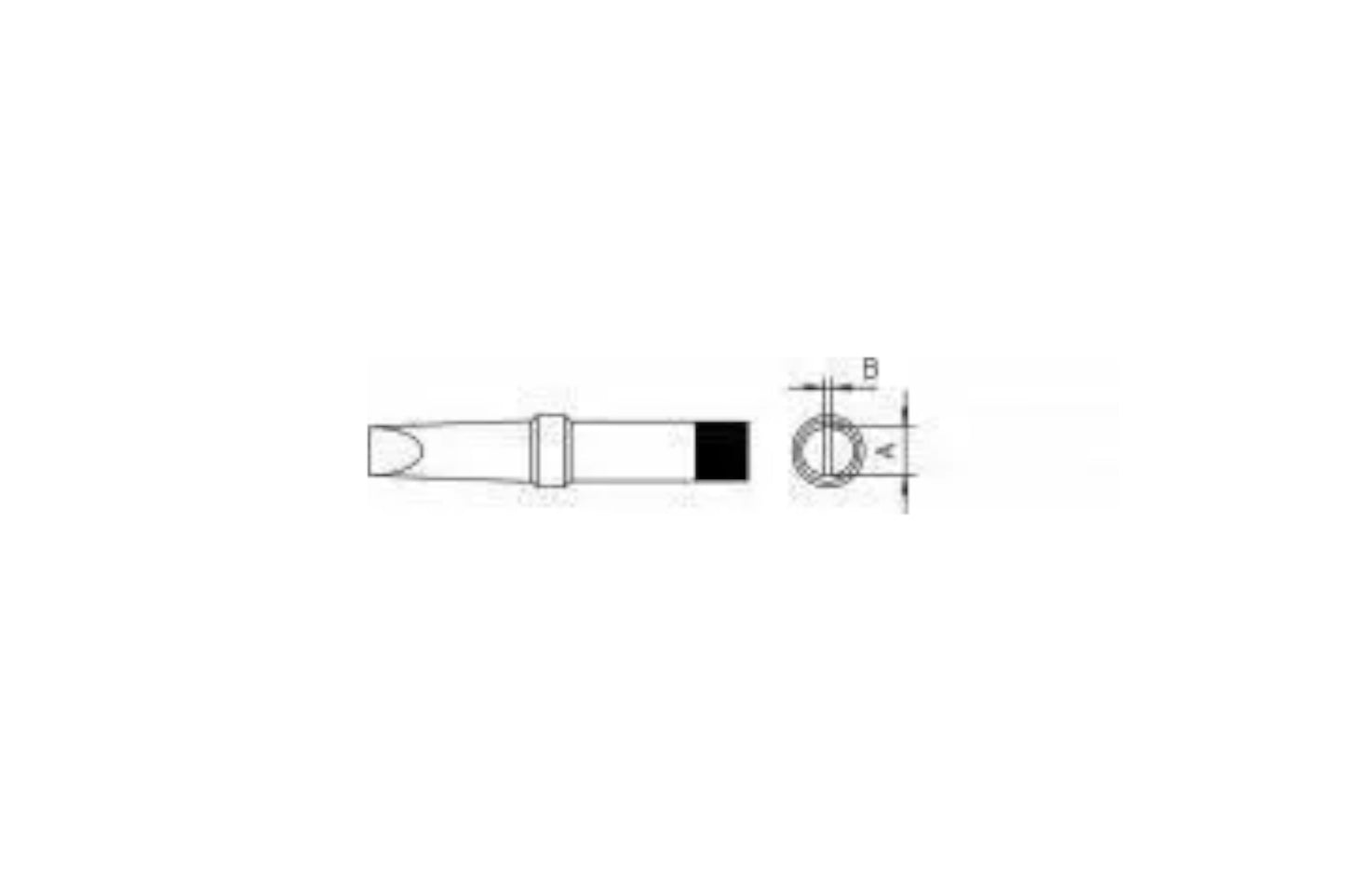

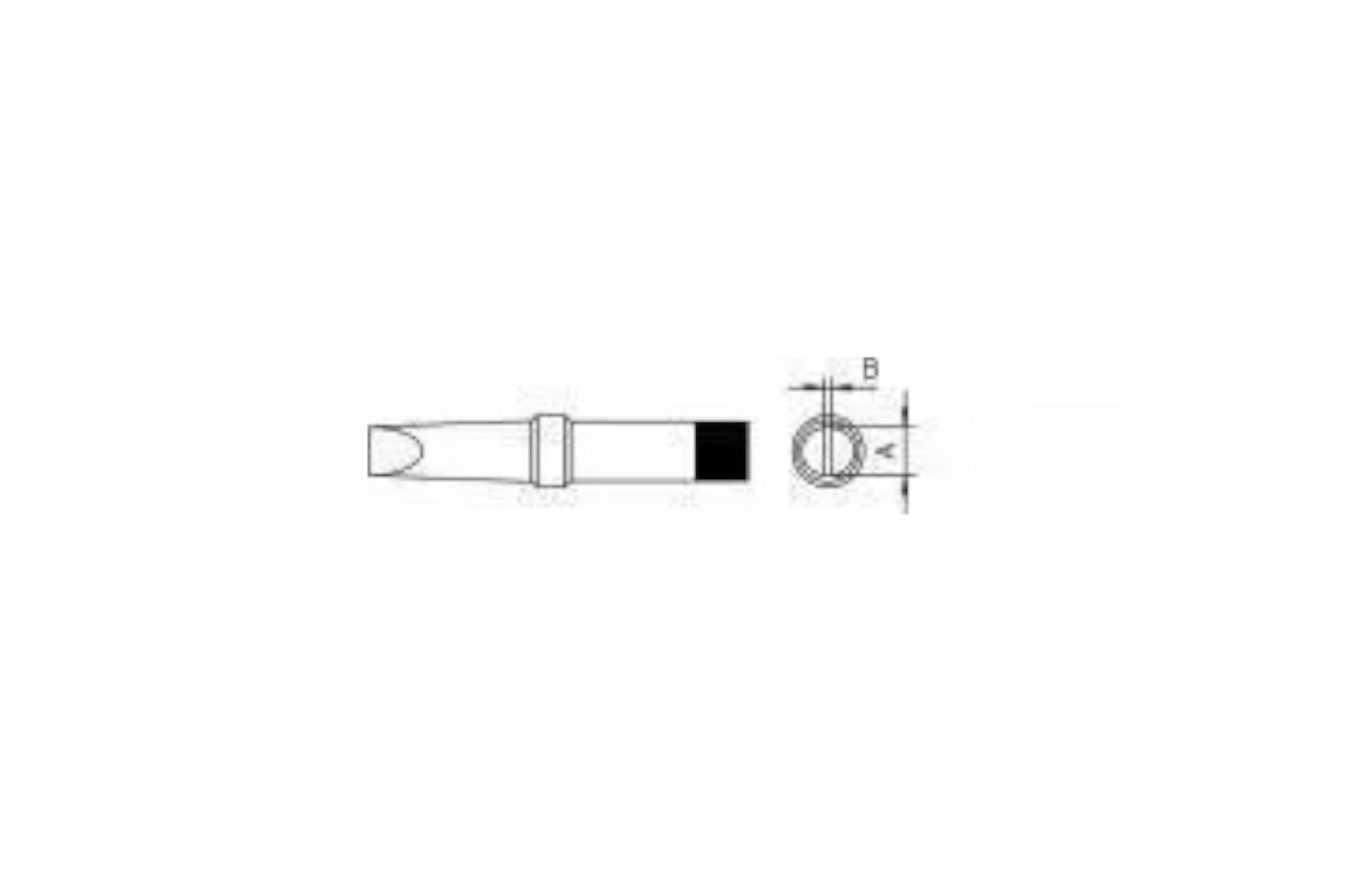

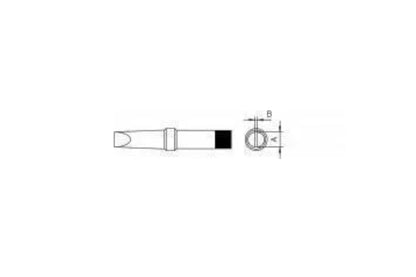

Physical dimensions and compatibility
- Tip width (A): 4.6 mm
- Tip thickness (B): 0.8 mm
- Overall length: 33 mm
- Outer diameter: 6.9 mm
- Compatible with: TCPS, TCP 12, TCP 24, TCP 42, and FE 50M
- Packaging size: 1 pc. per pack
- UPC: 4003019432516
Temperature and function
The tip is rated with a temperature classification of 425°C. Weller describes that PT tips are part of the Magnastat system, where a ferro-magnetic sensor in the tip changes properties at specific temperatures, activating or deactivating the heating element's power supply to control performance and idle state. The working temperature is selected by switching to tips with the desired temperature characteristics.
Documentation
Typical applications
Based on the manufacturer's information, the 4PTD8-1 is used as a replaceable chisel soldering tip for soldering operations where a chisel tip with a width of 4.6 mm and a temperature classification of 425°C is relevant. The choice of this tip type allows for working temperature control by switching temperature-sensitive tips in the Magnastat system.
Specifications
- Item No: 4PTD8-1
- Product designation: PT D8 chisel soldering tip
- Temperature: 425°C
- Width A: 4.6 mm
- Thickness B: 0.8 mm
- Length: 33 mm
- Diameter: 6.9 mm
- Compatibility: TCPS, TCP 12, TCP 24, TCP 42, FE 50M
- Quantity per package: 1
- UPC: 4003019432516
- Product family: PT Soldering Tips
