Chisel Soldering Tip from Weller

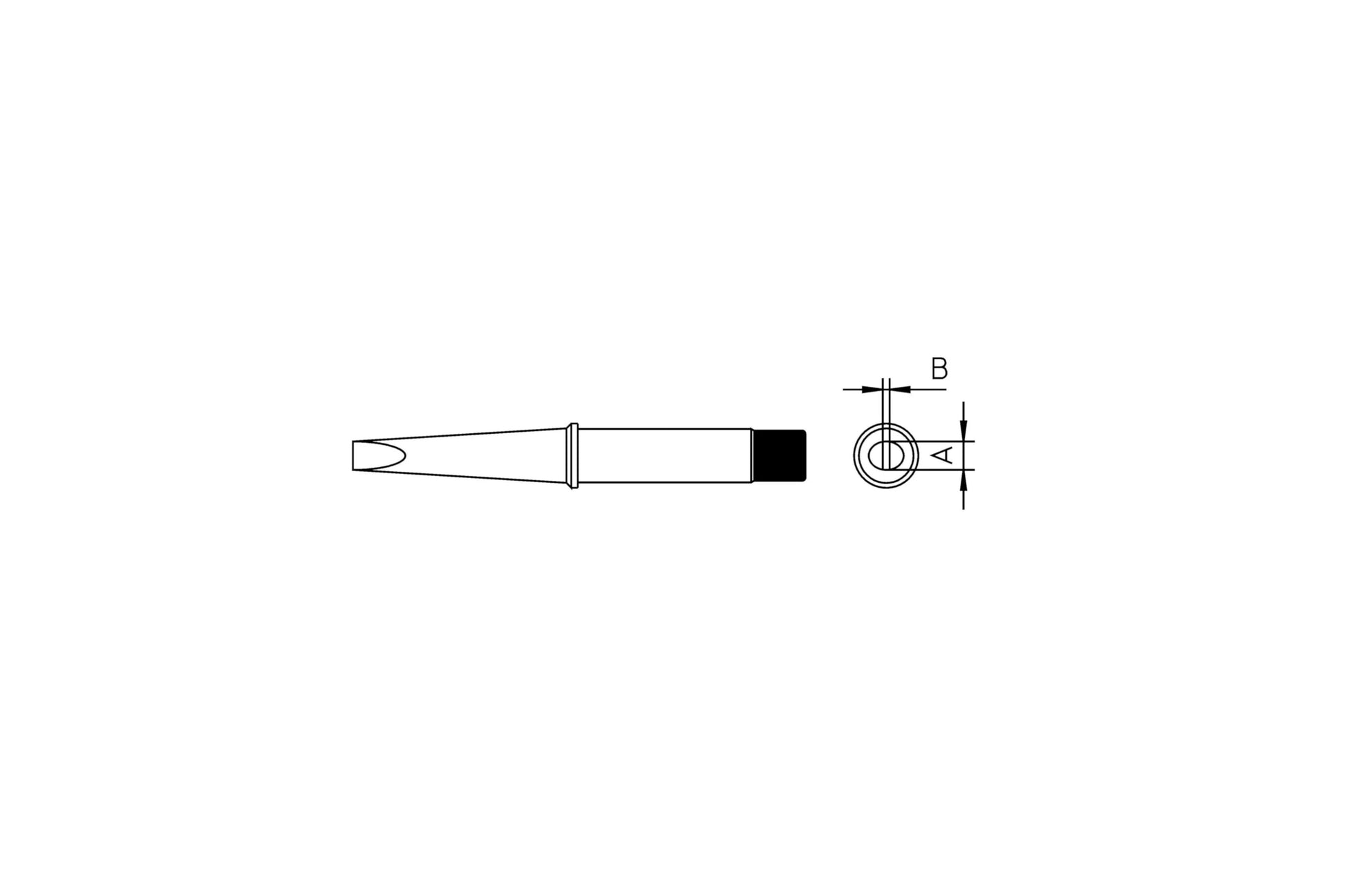

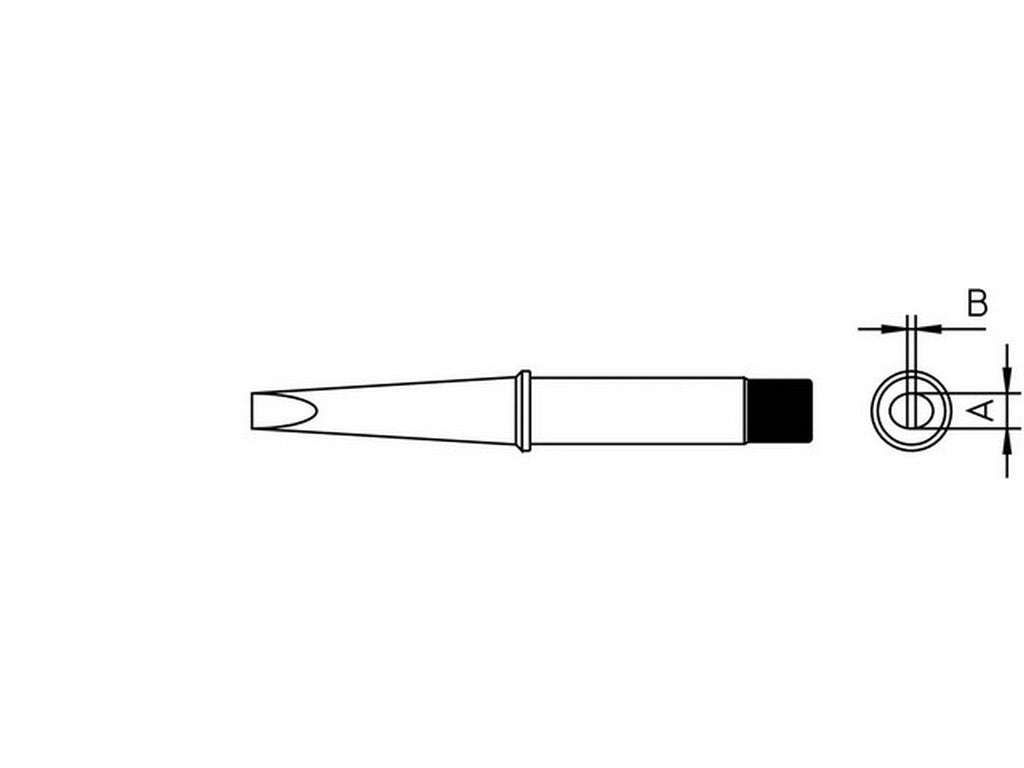

The CT2 E8 is a chisel soldering tip from Weller, specified as "Soldering Tip Chisel 425°C" and identified by item number T0054240899N. The tip is designed as part of the Weller Magnastat system, where temperature sensing is performed by ferromagnetic temperature-sensitive tips that activate the interruption or supply of power to the heating element at specific temperatures.
Technical description
- Product name: CT2 E8
- Item number: T0054240899N
- Type: Chisel soldering tip
- Temperature rating: 425°C (operating temperature depends on the tool)
- Tip Type: HM
- Packing quantity: 1
- Product family: CT Soldering Tips
Weller Magnastat system
The CT2 E8 is listed as a replaceable temperature-sensitive tip for the Weller Magnastat system. The system uses a ferromagnetic sensor in the tip, which changes characteristics at a given temperature, thereby affecting a permanent magnet, which in turn controls a power interrupter. This quickly switches between applied power during soldering and reduced power during inactivity. The CT2 E8 is specified as one of the pre-selected tip temperatures in the system.
Typical applications
The CT2 E8 is used for soldering operations where an operating/setting value corresponding to 425°C is required within the Weller Magnastat system. The tip's function as a temperature-sensitive unit is used to switch heating power according to the system's ferromagnetic control principle.
Specifications
- Item No: T0054240899N
- Name: CT2 E8
- Description: Soldering Tip Chisel 425°C
- Temperature: 425°C
- Tip Type: HM
- Quantity Per Package: 1
- Product Family: CT Soldering Tips
- UPC: 037103269140
Sources
Content generated using AI – we reserve the right for errors.
Contact HIN for further information about the product.
