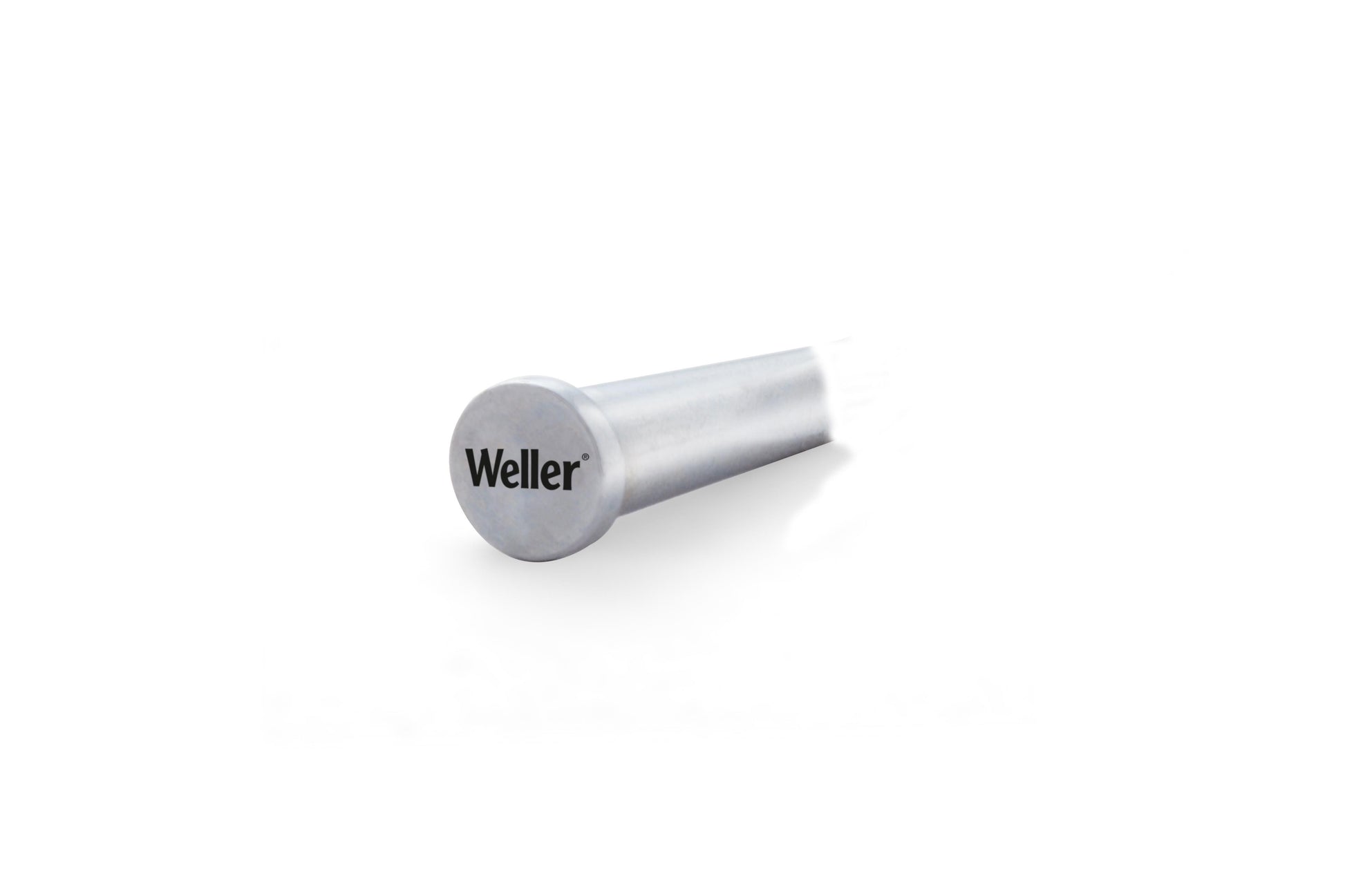

Weller LT A HPB Soldering Tip (T0054443199)
This product is a Weller LT A HPB soldering tip, Item No. T0054443199. The product is a chisel (screwdriver) tip designed for high-melting (lead-containing) solder and specified for use with the WP 80, WSP 80, MPR 80, and FE 75 equipment. Weller explicitly states: "Do not use for lead-free soldering" and notes that the tip is not qualified for lead-free solder baths or other lead-free electronic soldering.
Technical Characteristics
- Tip type: HPB
- Shape: Chisel (chisel / screwdriver)
- Diameter: 4.6 mm
- Length: 13 mm
- Quantity per pack: 1
- UPC: 4003019027507
Documentation
Details and technical data can be found in the manufacturer's datasheet. See datasheet from manufacturer
Typical Applications
Used for soldering with high-melting (lead-containing) solder in conjunction with the following Weller units: WP 80, WSP 80, MPR 80, and FE 75. The product is intended for use as a chisel/tip for transferring heat and solder material with the mentioned soldering units.
Specifications
- Item number: T0054443199
- Product family: LT Soldering Tips
- Tip type: HPB
- Diameter: 4.6 mm
- Length: 13 mm
- Compatibility: WP 80, WSP 80, MPR 80, FE 75
- Quantity per pack: 1
- UPC: 4003019027507
- Warning: Not to be used for lead-free soldering (not qualified for lead-free solder bath or other lead-free electronic soldering)
Source: Weller product data page
