Product Overview

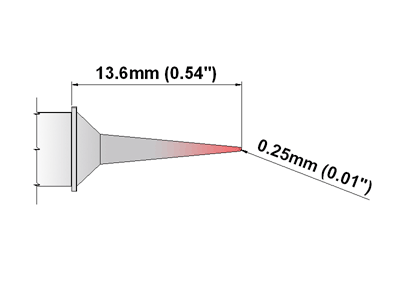

This soldering tip from THERMALTRO is a K Series micro fine soldering tip designed for precision soldering. K80MF003 identifies the tip geometry as Micro Fine with a tip width of 0.25 mm and a tip length of 13.60 mm. The K80MF003 is an 80-series cartridge engineered to deliver high thermal performance during demanding soldering tasks.Technical Description
The K80MF003 utilizes Thermaltronics Curie Heat Technology (as stated in the manufacturer's text), which ensures an instantaneous response to the thermal load for each solder joint. Data specifications indicate a typical idle temperature range for the 80-series of 420°C - 475°C, and material information specifies that all components are RoHS compliant and lead-free. The product text also states that the unit is ESD-safe.Documentation
View datasheet from manufacturerTypical Applications
This K80MF003 soldering tip is suitable for micro-fine soldering and precision work on small solder joints, which may require a tip width of 0.25 mm. It is listed for use with specific Thermaltronics control systems, indicating compatibility with the stated stations.- Compatible with: TMT-1000S-K, TMT-2000S-K, TMT-2200S-2KM, MFR systems with SHP-KM and PS900 with SHP-K.
Specifications
- Product Name: K80MF003
- Manufacturer: THERMALTRO
- Tip Style: Micro Fine
- Tip Width: 0.25 mm (0.01")
- Tip Length: 13.60 mm (0.54")
- Series: 80 Type Cartridge
- Typical Idle Temperature Range: 420°C - 475°C
- RoHS Compliant / Lead-Free: Yes
- ESD: Stated as ESD-safe
- Compatibility: TMT-1000S-K, TMT-2000S-K, TMT-2200S-2KM, MFR systems w/SHP-KM, PS900 w/SHP-K
- Source: Thermaltronics technical datasheet
