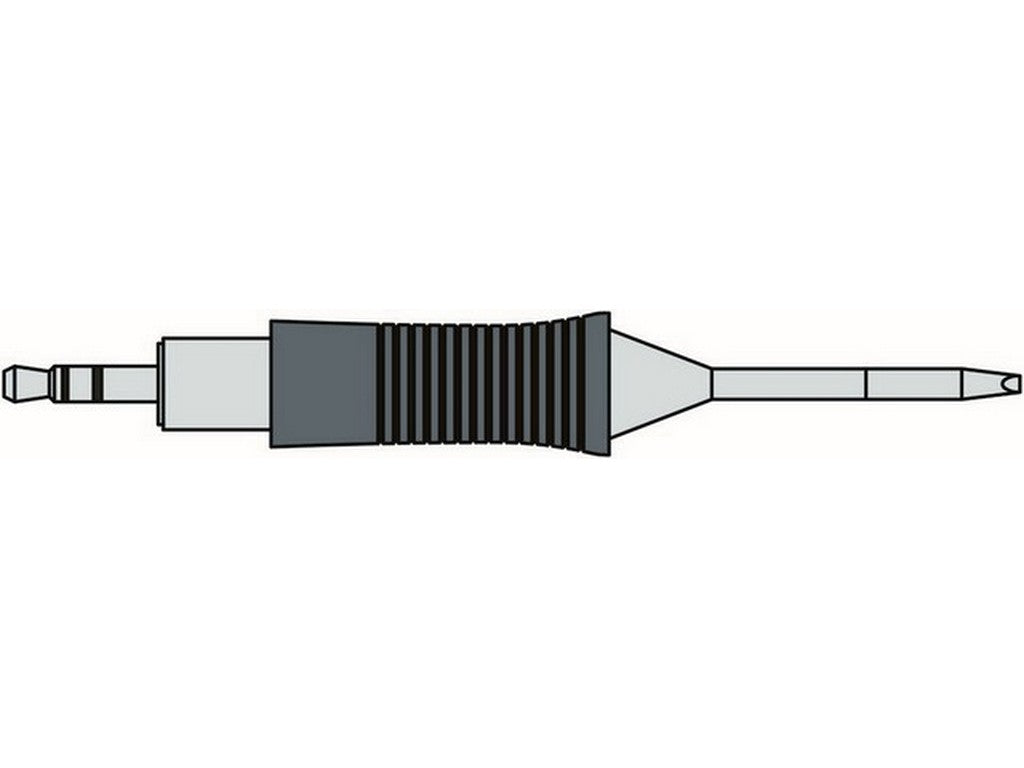

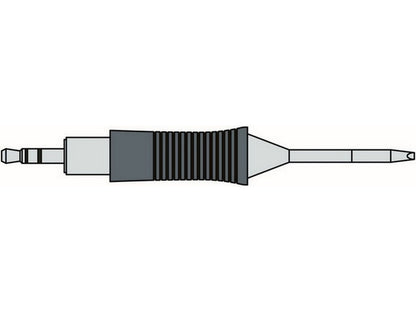

RT Micro Soldering Tip from WELLER
This Weller RTM 015 S MS is an RT Micro soldering tip designed for precision soldering. The product is marked as model T0054461899N and is specified as an MS (MIL-SPEC) version with a chisel geometry. The Weller RTM 015 S MS is indicated for use with WXMP MS and WMRP MS soldering irons and has a nominal power of 40 W.
Technical Overview
- Tip-geometry: chisel
- Tip-type: MS (MIL-SPEC)
- Compatibility: shown for use with WXMP MS and WMRP MS
- Nominal power: 40 W
Further technical details and manufacturer documentation are available from Weller. For complete specification overview and manufacturer information: See manufacturer's datasheet.
Typical Applications
- Used for soldering tasks where reduction of risk of damage to sensitive micro-components and workpieces is necessary (as stated by the manufacturer).
- Designed for use with the specifically mentioned WXMP MS and WMRP MS soldering irons.

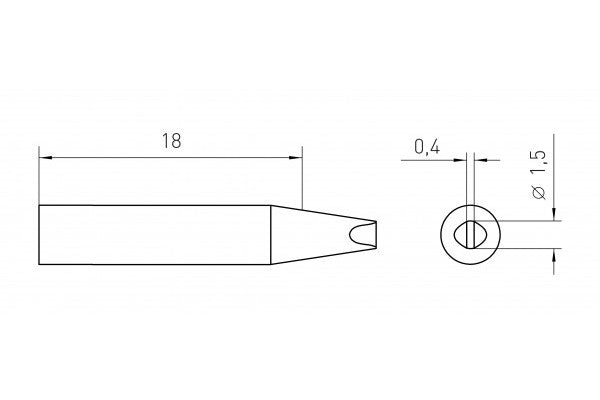

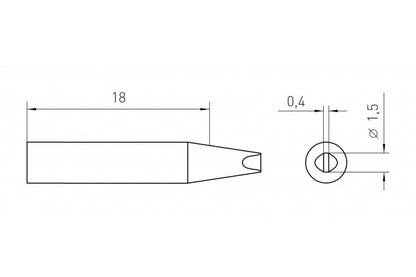

- Product name: Weller RTM 015 S MS (item no. T0054461899N)
- Tip shape: Chisel
- Tip-type: MS
- Width: 1.5 mm (0.059 in)
- Thickness: 0.4 mm
- Length: 19 mm (0.748 in)
- Power: 40 W
- Packaging unit: 1
Notes
The product's active tip technology and sensor placement are mentioned in the manufacturer's documentation as reasons for rapid heating and quick temperature recovery, but more detailed electrical or thermal characteristics beyond the stated nominal power are not provided here.
Specifications
Source: Manufacturer's product information and technical data (Weller Tools GmbH).
Content generated using AI – we reserve the right for errors.
Contact HIN for further product information.
