This soldering tip from WELLER

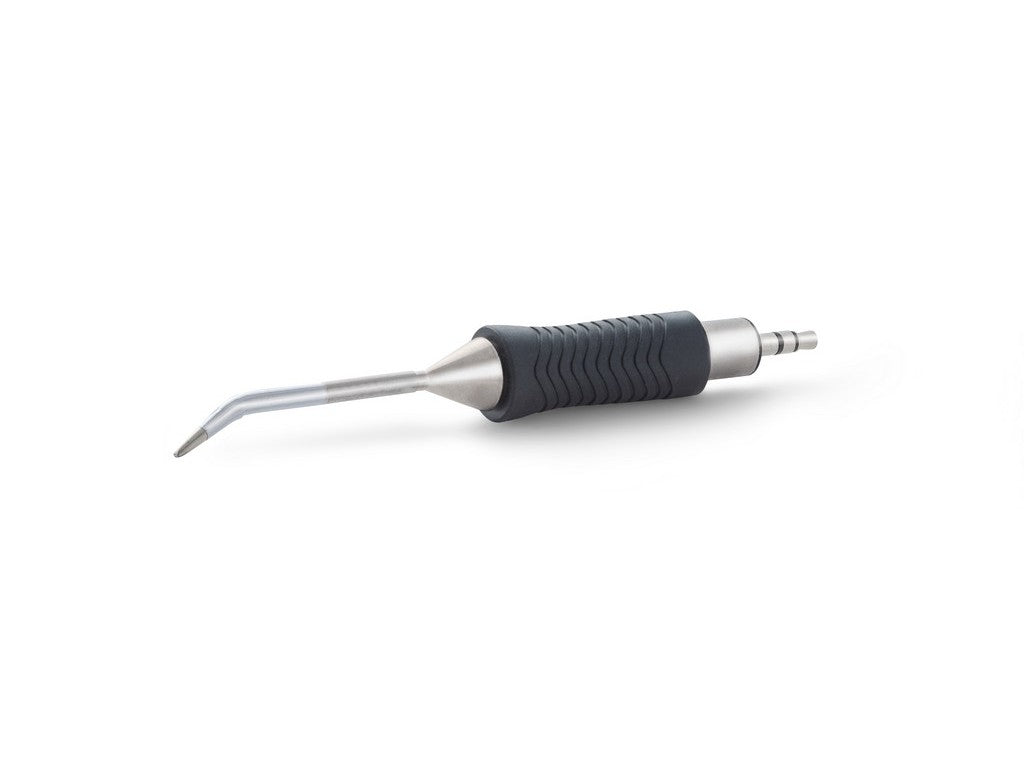

The RTM 013 S x MS (Item No. T0054460373N) is an RT Micro active soldering tip from WELLER. The product is listed as a sloped chisel and is specified for micro and standard components. The RTM 013 S x MS is an MS version, which according to the manufacturer is MIL-SPEC / IPC compliant and intended for use with selected Weller handles.
Technical description
- Type: RT Micro active soldering tip, chisel (sloped)
- Nominal dimensions: Ø 1.3 x 0.5 mm
- Tip angle: 30°
- Length: 1.1 in
- Power: 40 W
- Tip finder size: 1.0–1.5 mm
- Tip type: HM
- Mil-Spec / IPC: Yes (MS version)
- Compatibility: WTMP-MS, WMRP-MS, WXMP-MS
- Quantity per package: 1
- Item No.: T0054460373N
Documentation
Technical details and further product information can be found in the manufacturer's datasheet: See datasheet from the manufacturer.
Typical applications
According to the manufacturer's product text and datasheet, the RTM 013 S x MS is intended for working with micro and standard components and is specifically listed for the following areas of application:
- Aerospace
- Military (MS versions only)
- Electronics
- Sensors
- Medical devices
- Automotive
Specifications
- Product: RTM 013 S x MS (Item No. T0054460373N)
- Type: RT Micro Soldering tip, chisel, sloped
- Dimensions: Ø 1.3 x 0.5 mm
- Tip angle: 30°
- Length: 1.1 in
- Power: 40 W
- Tip finder size: 1.0 - 1.5 mm
- Tip type: HM
- MIL-SPEC / IPC: Yes (MS version)
- Compatible with: WTMP-MS; WMRP-MS; WXMP-MS
- Quantity per package: 1
- UPC: 037103303837
