Product Description
Stannol Ecoloy TSC is a lead-free, eutectic solder alloy from STANNOL with a chemical composition of Sn95.5Ag3.8Cu0.7. The product is specified according to ISO 9453 as alloy number 713 and has a defined melting temperature of 217 °C. Stannol Ecoloy TSC is formulated to replace traditional tin-lead and tin-lead-silver alloys in electronics soldering, with a focus on enabling complete lead-free assembly.Technical Profile
- Eutectic, defined melting point: 217 °C.
- Composition: Sn95.5Ag3.8Cu0.7.
- Specified to ISO 9453, alloy no. 713.
- Recommended for wave soldering with solder bath temperatures approx. 260–280 °C.
Typical Applications
- Recommended for wave soldering with solder bath temperatures around 260–280 °C, as indicated by the manufacturer.
- The alloy is described as suitable for rework and hand soldering, with solder wire in the same alloy offered for consistent joint properties (information from the manufacturer's technical documentation).
Delivery Forms and Documentation

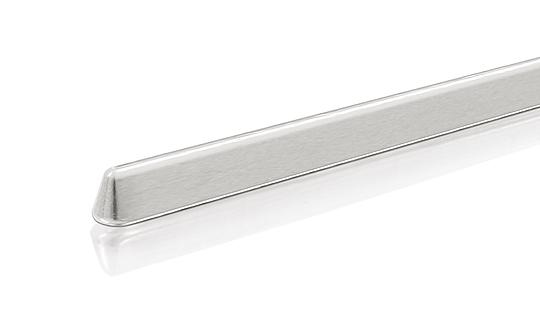

The product page indicates delivery forms, including cast triangular bar (Dreikantstange), form block 7, and kg bars. For detailed, manufacturer-verified information and further technical values, please refer to the manufacturer's technical data sheet.
Sources
See data sheet from the manufacturer
Specifications
- Product Name: Stannol Ecoloy TSC
- Manufacturer: STANNOL
- Composition: Sn95.5Ag3.8Cu0.7
- ISO 9453 alloy number: 713
- Melting temperature (defined): 217 °C
- Recommended solder bath temperature for wave soldering: approx. 260–280 °C
- Stated delivery forms: Dreikantstange (cast triangular bar), form block 7, kg bars
