Product Overview

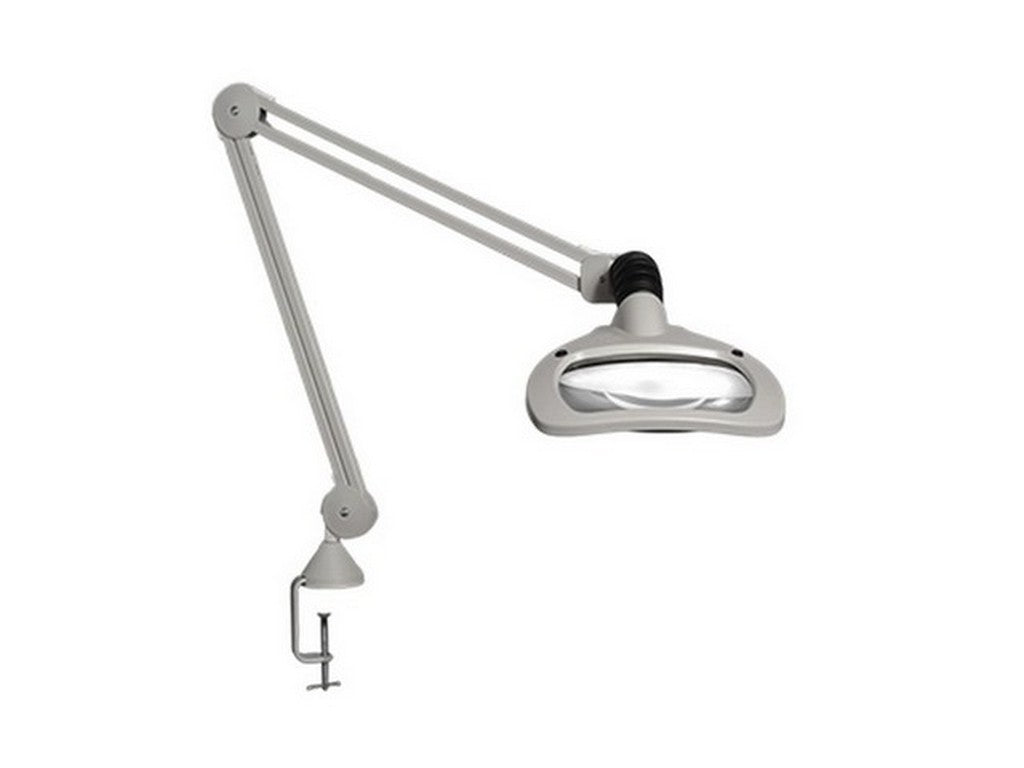

Wave (WAL025948) is an illuminated magnifier for industrial applications from LUXO. The product combines an optical glass lens with integrated LED light sources and a flexible, self-balancing arm to provide controlled, shadow-free magnification or three-dimensional illumination from one side.
Function and Construction
Wave is equipped with two LED modules (2x400 lumens) and a primary glass lens of 3.5 diopters in its standard configuration. The arm's reach in the standard version is 100 cm, and the housing is supplied in white (WH) as standard. The lamp has a maximum system power of 13 W and a measured light output of 682 lumens. The color temperature is stated as 4000 K, and the color rendering is RA >80. The brightness can be dimmed in the range of 10–100%, and there is an option for programmable automatic shut-off after either 4 or 9 hours.
- 2x400 lumen LED modules
- Primary glass lens 3.5 diopters
- Flexible, self-balancing arm — standard length 100 cm
- Dimming 10–100% and programmable auto-off (4 or 9 hours)
Application Characteristics
Wave provides shadow-free magnification with illumination from both sides, as well as the option for three-dimensional magnification with illumination only from the left or right side. This allows the light direction and intensity to be changed without changing the lens's position. The product name Wave is used in the product documentation as identification (WAL025948).
Specifications
- Product: Wave (WAL025948)
- Manufacturer: LUXO
- GTIN: 7040670259486
- Primary lens: Glass lens, 3.5 diopters
- LED light: 2x400 lumens
- Measured light output: 682 lumens
- Max system power: 13 W
- Color temperature: 4000 K
- Color rendering: CRI Ra >80
- Dimming: 10–100%
- Programmable auto-off: 4 or 9 hours
- Standard housing color: White (WH)
- Arm length (standard): 100 cm
The content is generated using AI – we reserve the right for errors.
Contact HIN for further information about the product.
