Product Overview

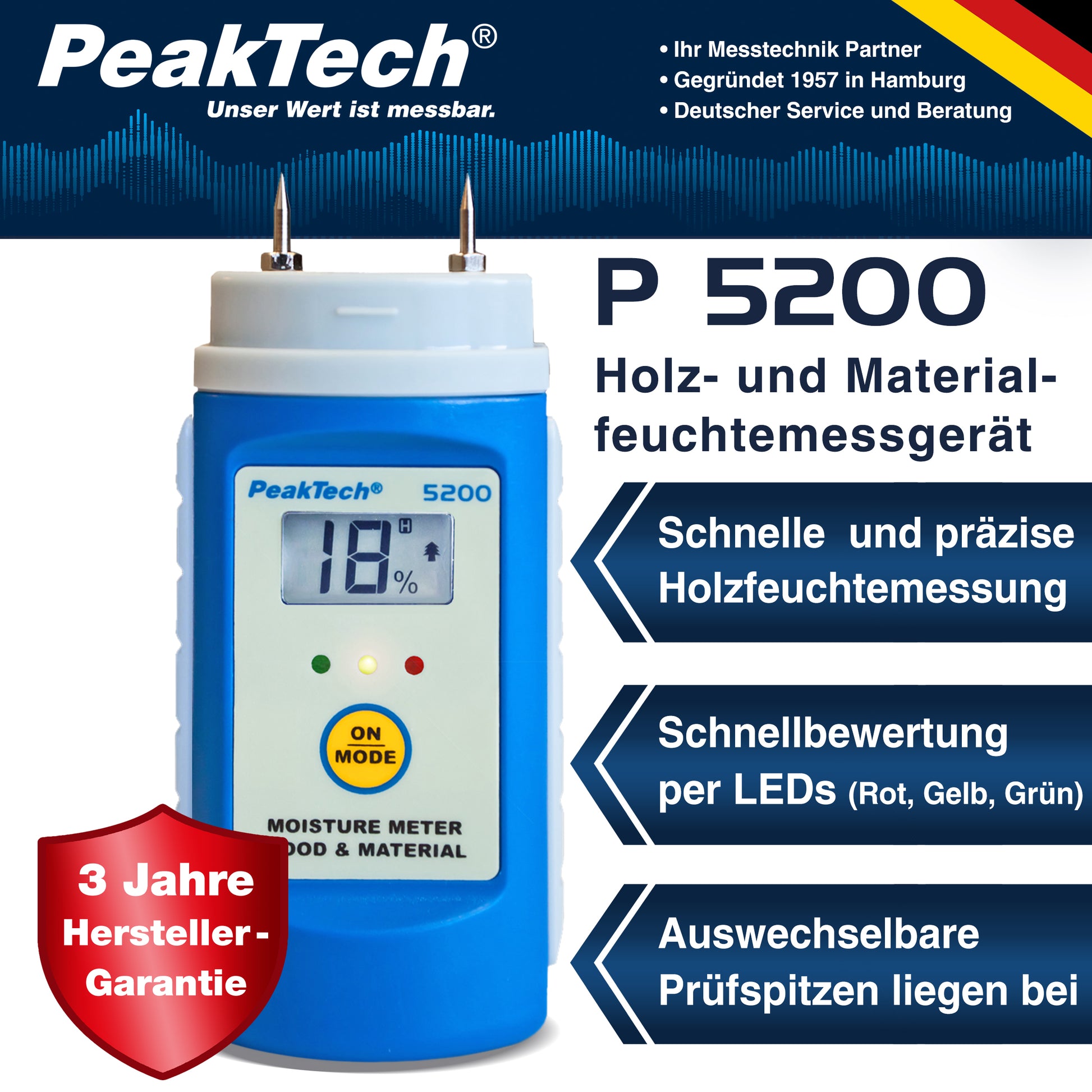

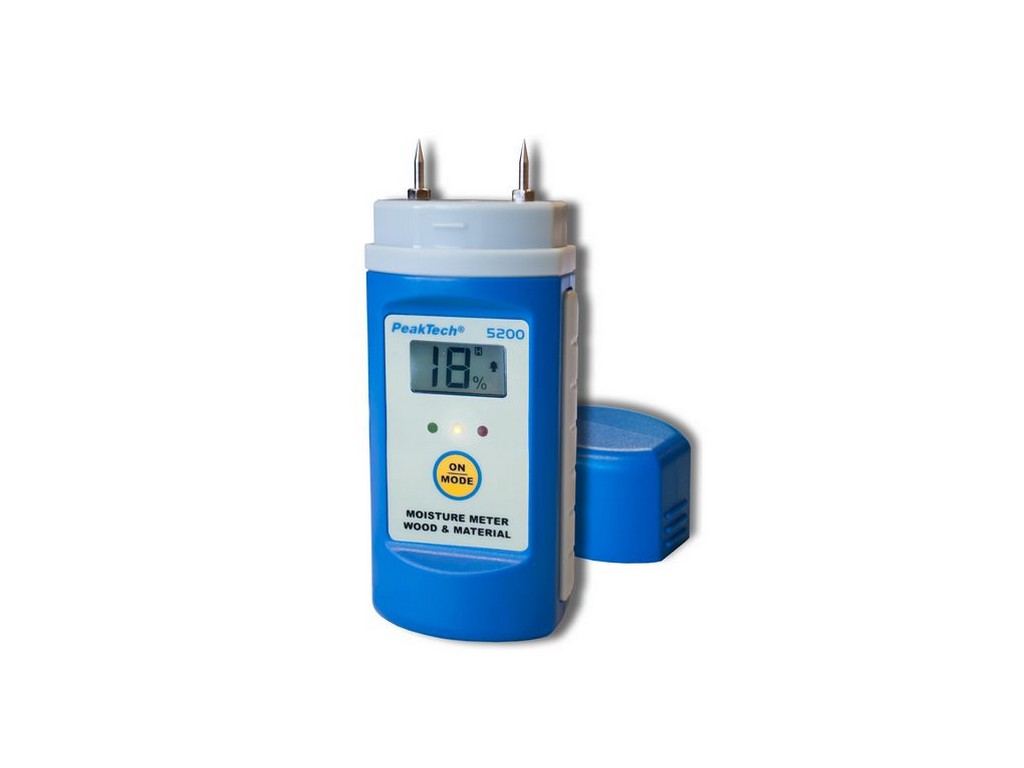

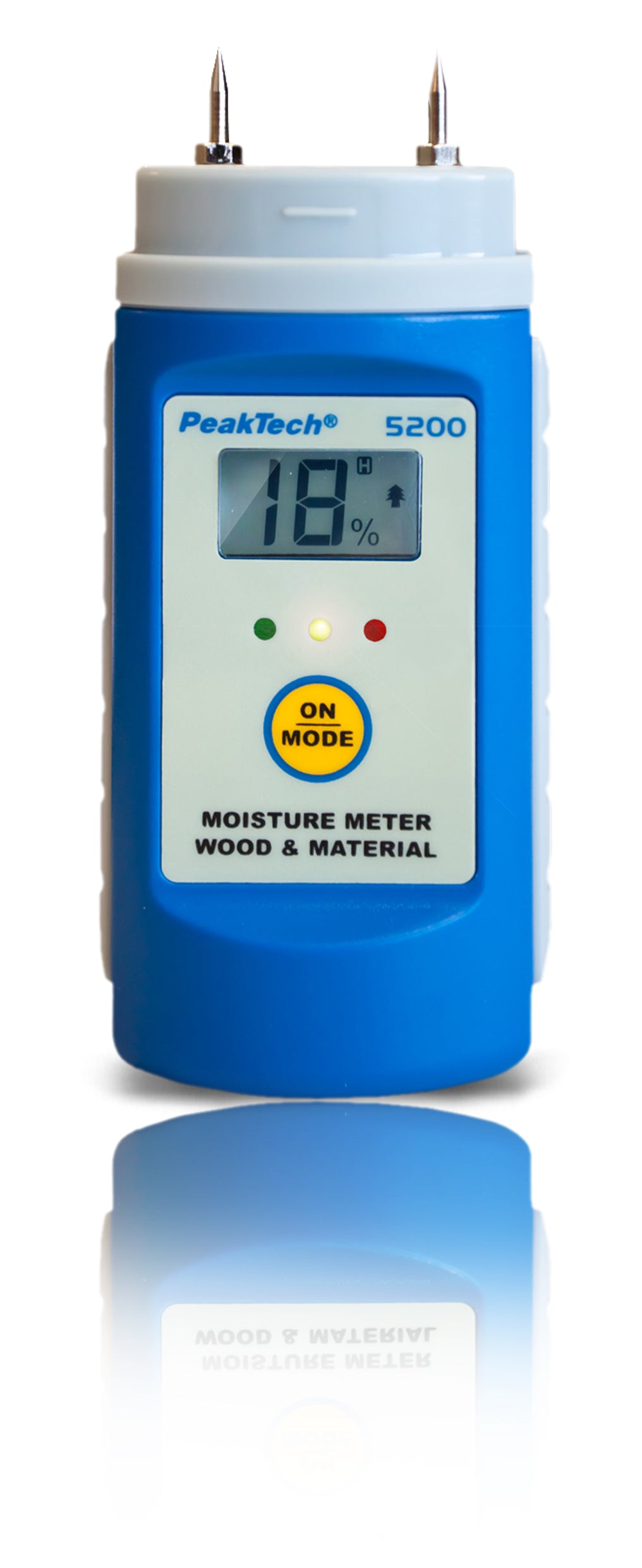

The PeakTech P 5200 is a moisture meter for wood and building materials, designed for spot measurements using probe sensors. The PeakTech P 5200 simultaneously displays the measured moisture content and ambient temperature on a backlit LCD screen and has three LEDs (green/yellow/red) for a quick assessment of the measured value.Function and Measurement Principle
The device operates with a probe that is inserted into the test material during measurement. Readings are shown on the LCD display, and LED indicators show the status based on fixed thresholds: below 6% all LEDs off, 6–16% green on, 16–20% yellow on, and >20% red on. The instrument features data hold and automatic shutdown after 15 seconds. The device comes with a 9V battery power supply and two replaceable test probes according to the product information.Typical Applications
- Measuring moisture in cut timber, paper, and cardboard.
- Measuring moisture in cured building materials such as mortar, concrete, and plaster.
Documentation
See data sheet from the manufacturer
Specifications
- Measurement range wood: 6–60 %
- Measurement range building materials: 0.2–2.9 %
- Temperature range (ambient): 0–40 °C
- Resolution: wood 1 %; building material 0.1 %; temperature 1 °C / 2 °F
- Accuracy: wood ±2.0 %; building material 0.1 %
- LCD display with backlight and battery indicator
- LED indicators: green/yellow/red with thresholds as specified
- Functions: DATA-HOLD; automatic shutdown after 15 s
- Power supply: 9 V battery (6F22 or equivalent)
- Operating and storage temperature: operation 0 °C–40 °C; storage -10 °C–50 °C (both <85 % RH)
- Dimensions (WxHxD): 45 x 122 x 51 mm
- Weight: 115 g
