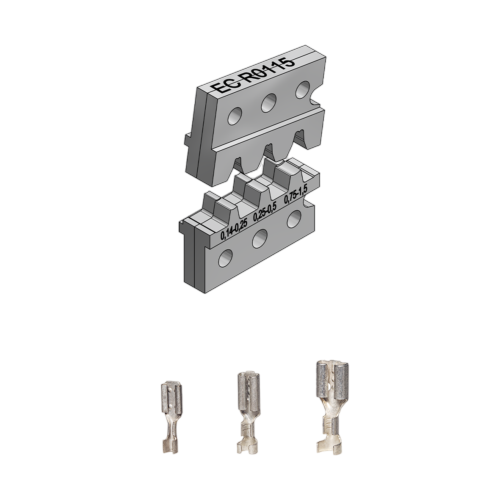

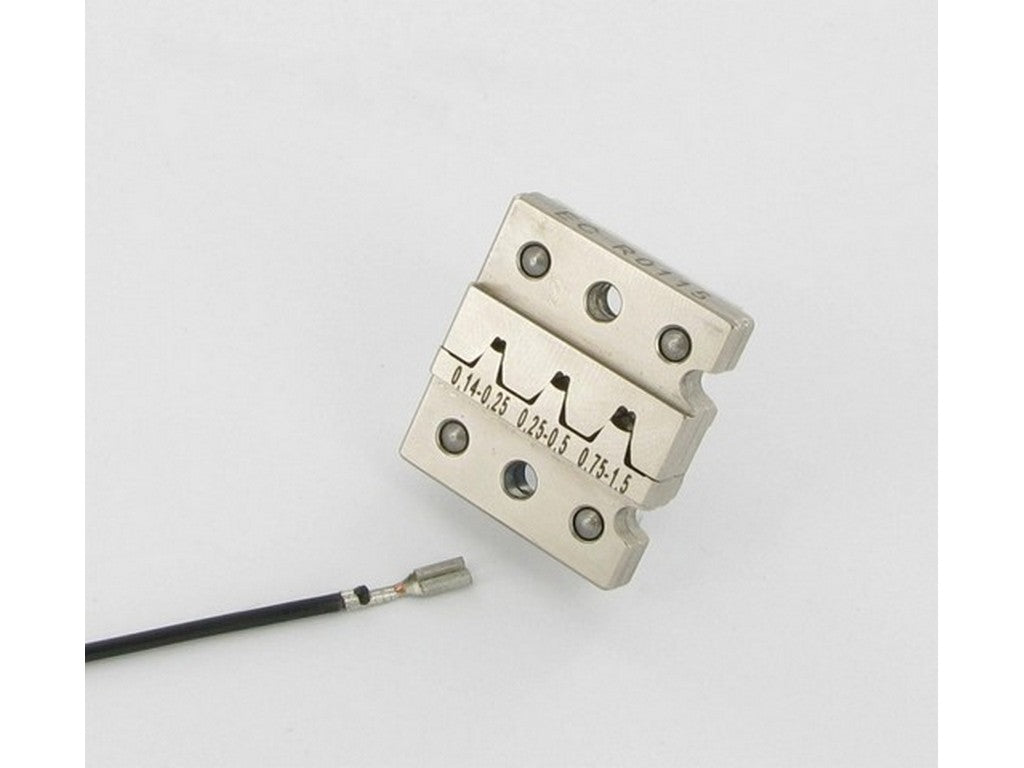

Crimping die set EC R0115
The Crimping die set EC R0115 is a crimping die designed for roll crimp contacts. The product is specified for conductor cross-sections of 0.1 - 1.5 mm² and is listed by the manufacturer under item number 006760. The die set is intended for use with specific locator tools and refers to a matching protective cap.
Function and compatibility
The Crimping die set EC R0115 forms roll crimp contacts by crimping and is intended for the specified conductor cross-sections. According to the manufacturer, the die set is intended for use with Locators EC LOC02, EC LOC03, and EC LOC04. The product text also mentions the protective cap EC PC02 in connection with this die.
Typical applications
- Crimping of roll crimp contacts with conductor cross-sections of 0.1–1.5 mm².
- Use in combination with Locators EC LOC02, EC LOC03, or EC LOC04.
- Referenced with protective cap EC PC02.
Notes on integration
The product is identified by the manufacturer as item number 006760. When incorporating it into existing workflows, it should be ensured that the listed locator models are used, as compatibility is explicitly stated by the manufacturer.
Specifications
- Product: Crimping die set EC R0115 (crimping die for roll crimp contacts).
- Manufacturer: GLW.
- Item number (Art. No.): 006760.
- Specified conductor cross-section: 0.1 - 1.5 mm².
- Specified compatibility: Locator EC LOC02, EC LOC03, EC LOC04.
- Reference: Protective cap EC PC02.
