Product Overview

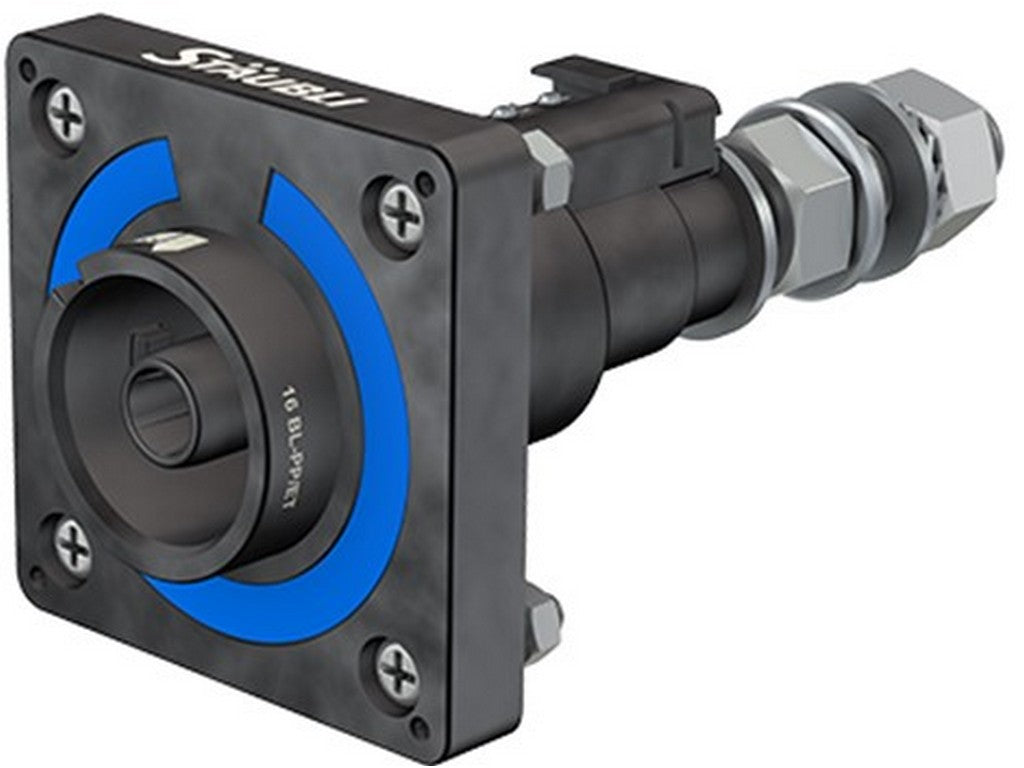

This single-pole, insulated circular connector solution from Stäubli (Stäubli 16BL-PP/ET) has been developed for low-voltage, high-current applications. The Stäubli 16BL-PP/ET is a panel-mount plug variant in the 16BL series with an M16 threaded connector and uses 45° bayonet locking. The product is based on Stäubli MULTILAM contact technology as stated in the manufacturer's catalog.Technical Description
The Stäubli 16BL-PP/ET is a single-pole insulated circular connector family with a diameter category of Ø 10–21 mm. The series is specified for operation up to AC 1000 V / DC 1500 V, and the 16BL family includes variants with rated powers up to 630 A (IEC). For the 16BL-PP/ET, there are mechanical and color coding options (C1–C5) as well as an expected lifespan of up to 5,000 mating cycles. See datasheet from the manufacturerTypical Applications
- Temporary power supply.
- Emergency power supply.
- Use in systems, units, or test stands (as stated in the manufacturer's catalog).
Design and Functional Characteristics
- Single-pole, insulated circular connector design.
- 45° bayonet locking for plug-and-play operation.
- Panel-mount variant with M16 threaded connector (16BL-PP/ET).
- Mechanical and color coding (C1–C5 for 16BL-PP/ET).
- Based on MULTILAM contact technology (stated in the manufacturer's catalog).
Specifications
- Manufacturer: STAUBLI
- Product Series: 16BL
- Variant: 16BL-PP/ET (panel-mount plug with M16 threaded connector)
- Manufacturer Part Number: 140066C5
- Diameter Range: Ø 10–21 mm
- Voltage Range: up to AC 1000 V / DC 1500 V
- Current Rating: variants up to 630 A (IEC) as stated in the catalog
- Locking System: 45° bayonet locking
- Coding: mechanical and color coding (C1–C5 for 16BL-PP/ET)
- Durability: up to 5,000 mating cycles
- Contact Technology: MULTILAM (stated in the manufacturer's catalog)
- Source: Stäubli product catalog for insulated circular connectors (see datasheet link above)
