STAUBLI 140066C1

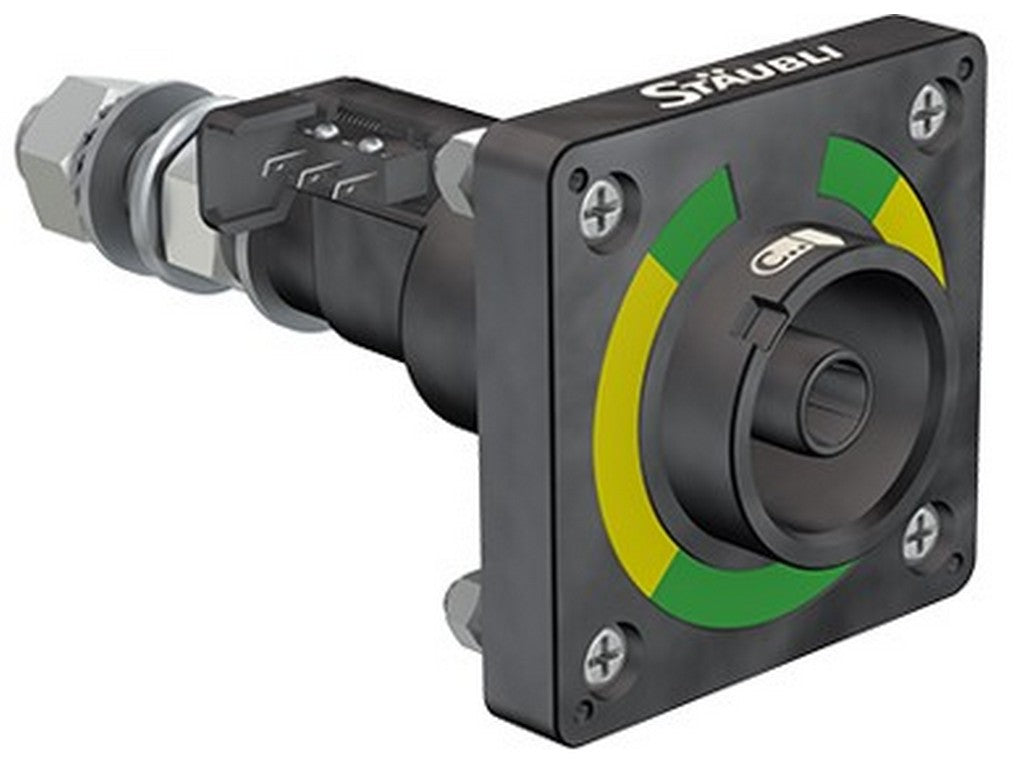

The STAUBLI 140066C1 is a panel-mounted, single-pole, insulated circular receptacle from the 16BL series. It is used as a fixed connection in a panel where a secure and space-saving connection for high current and high voltage is required. The threaded M16 stud makes installation in a cabinet or front panel simple.
The hallmark of the 16BL series is the patented bayonet lock with a 45° twist, allowing the connection to be quickly and controllably assembled and disassembled. In practice, this means a robust connection that is easy to work with, even with frequent daily connections and disconnections.
The series is rated for operation up to AC 1000 V and DC 1500 V according to IEC, and the catalog indicates up to 630 A for variants in the series. This version features mechanical coding C1, which helps prevent incorrect mating. Additionally, color coding is available to help identify connections more easily in the system.
Material selection is also relevant in a professional context: the insulation is made of PA, and the metal parts are made of CuZn with silver plating. The stated operating temperature ranges from -40 °C to +120 °C, so it is designed for demanding environments.
Typical Applications
- Panel mounting in industrial installations
- High-current connections in power supply and plant construction
- Applications requiring quick and secure disconnection
See datasheet from the manufacturer
Specifications
- Manufacturer: STAUBLI
- MPN: 140066C1
- Series: 16BL
- Type: panel receptacle plug
- Mounting: panel mounting with M16 threaded stud
- Number of poles: single-pole
- Insulated circular connector
- Rated voltage: AC 1000 V / DC 1500 V (IEC)
- Rated current for the series: up to 630 A (IEC)
- Bayonet locking: 45°
- Material, insulation: PA
- Material, metal parts: CuZn, silver-plated
- Operating temperature: -40 °C to +120 °C
- Mechanical coding: C1
- Color coding: available
