STAUBLI 33.0141

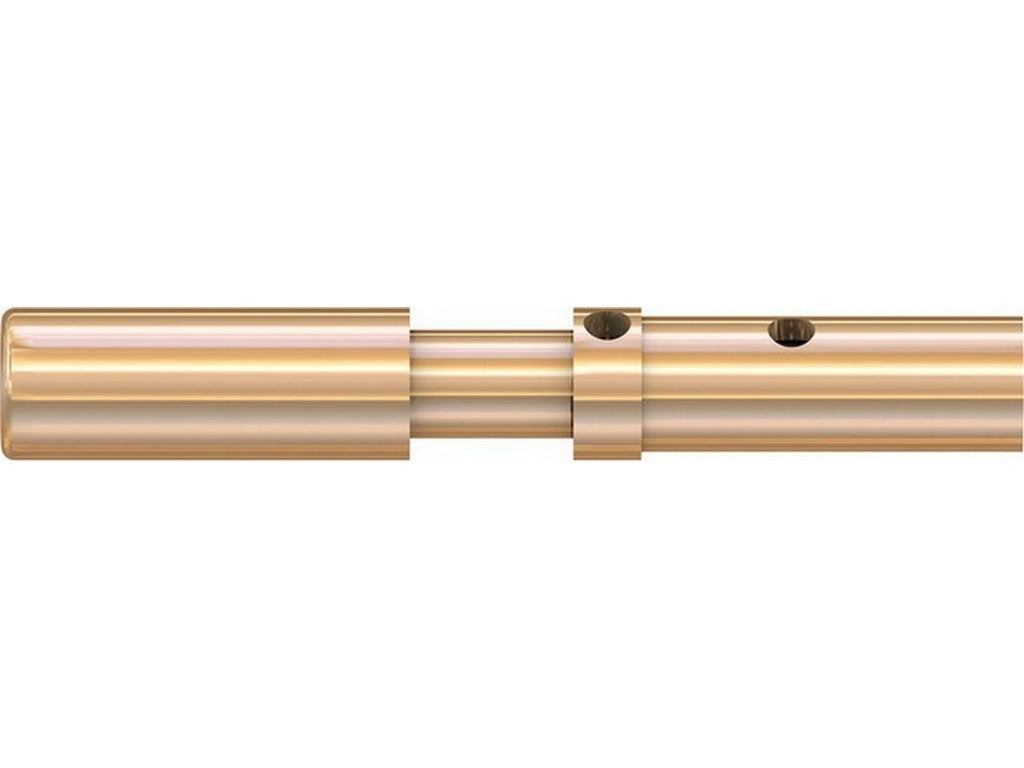

STAUBLI 33.0141 is a socket contact for Ø 1 mm CombiTac contacts. It is used as part of Stäubli's modular CombiTac system, where connections are assembled in a contact carrier as needed.
This is a crimp solution for Cu conductors with MULTILAM, so the wire is terminated by crimping instead of soldering. This makes the contact relevant when a stable and repeatable connection is required in a professional setup. The surface code AU is indicated in the type designation.
The approved conductor cross-sections for the contact are 0.25 mm², 0.5 mm², and 0.75 mm², corresponding to AWG 24, 20, and 18. The specified rated currents are 3 A, 4 A, and 6 A, depending on the conductor cross-section and construction.
It is therefore a small but important spare part in a CombiTac setup when building or maintaining a contact solution with Ø 1 mm signal or low-current contacts.
Typical applications
- CombiTac modules with Ø 1 mm socket contacts
- Building signal connections in modular connector systems
- Crimp termination of Cu conductors in professional equipment
Specifications
- Manufacturer: STAUBLI
- MPN: 33.0141
- Type: CT-BP1/0.25-0.75 AU
- Contact type: socket contact
- For Ø 1 mm CombiTac contacts
- Conductor cross-section: 0.25 mm², 0.5 mm², 0.75 mm²
- AWG: 24, 20, 18
- Rated current: 3 A, 4 A, 6 A
- Termination: crimp for Cu conductors with MULTILAM
- Surface code: AU
See datasheet from the manufacturer
