STÄUBLI MC‑CombiTac CT‑SP1/0,25‑0,75K AU

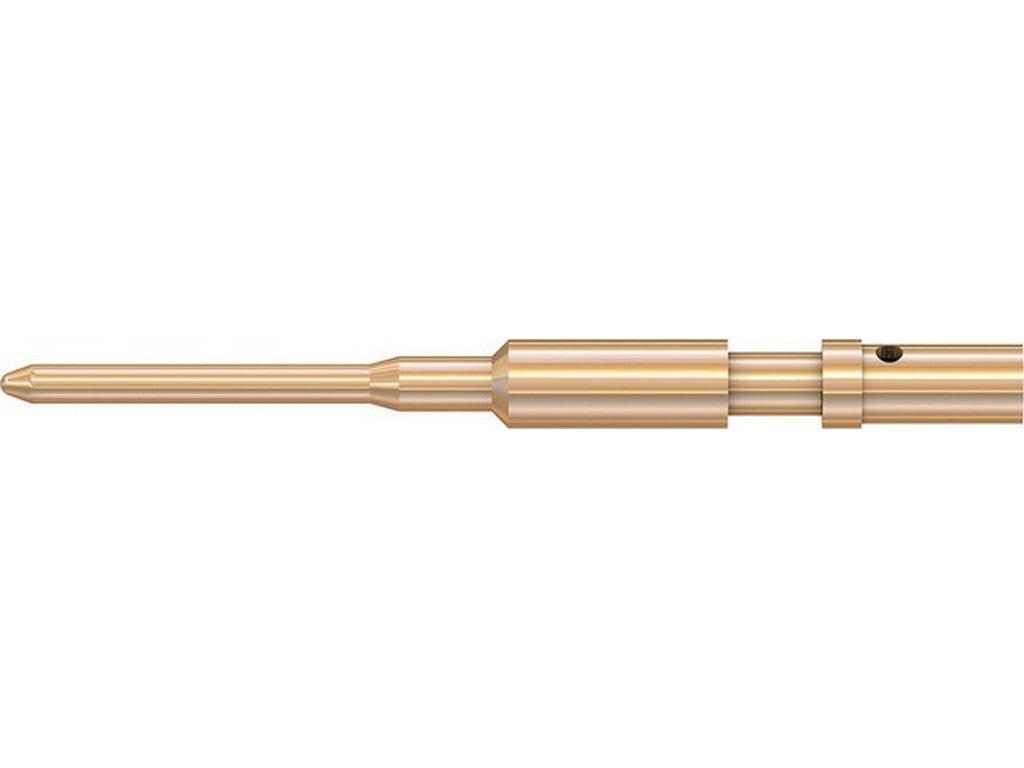

This is a 1 mm signal contact for the Stäubli CombiTac uniq system. It is used as a male contact, i.e., a pin, in modular connector assemblies where multiple connections are grouped in the same frame or housing. This is the small contact type, suitable for lighter signal applications, not for high-current power connections.
The contact is designed for contact carriers CT‑E1‑26, CT‑E1‑15, and CT‑E1‑6. This makes it relevant when building a CombiTac solution as needed and requiring a specific contact size in a single connection. It can be used with conductor cross-sections of 0.25 mm², 0.5 mm², and 0.75 mm², with corresponding rated currents of 3 A, 4 A, and 6 A respectively.
In practice, it is a spare part or component chosen when replacing or building a pin contact in a modular connector system. Stäubli also specifies low contact resistance and many mating cycles, which is important in equipment that is assembled and disassembled repeatedly. Therefore, it makes sense in professional installations where both stable contact and long lifespan are expected.
See datasheet from the manufacturer
Typical applications
- Modular CombiTac setups
- Signal connections in industrial equipment
- Assembly and maintenance of connector modules with CT‑E1‑26, CT‑E1‑15 or CT‑E1‑6
Specifications
- Manufacturer: STAUBLI
- MPN: 33.0541
- Series: CombiTac uniq
- Contact type: male / pin
- Nominal diameter: 1 mm
- Compatible contact carriers: CT‑E1‑26, CT‑E1‑15 and CT‑E1‑6
- Conductor cross-section: 0.25 mm², 0.5 mm² and 0.75 mm²
- Rated current: 3 A, 4 A and 6 A
- Contact resistance: <3 mΩ for pin
- Mating cycles: 100,000 for pin
