Product Overview

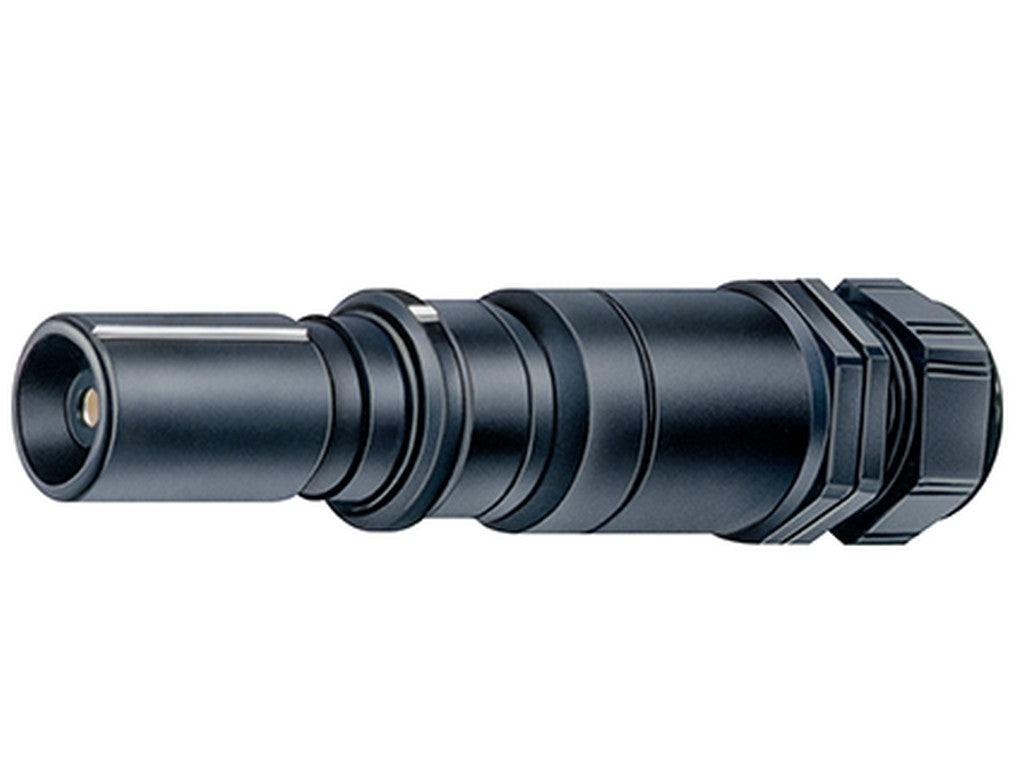

This description covers the KST16BV-NS/M40-50H plug (16BV series) from STAUBLI. The product is a plug/connector with bayonet locking and is designed for cable connection using a crimp sleeve. The description is factual and limited to information provided by the manufacturer.
Technical Function
The KST16BV-NS/M40-50H plug features a cable connection method based on a crimp sleeve and is intended for flexible cables (class 5). A prominent feature is an interchangeable crimp sleeve, which allows for servicing or replacement of the connection element without altering the rest of the plug. The plug uses bayonet locking for mechanical retention.
Documentation
Source
See manufacturer's product page
Typical Applications
- Used for connecting flexible (class 5) cables, where cable contact is made with a crimp sleeve.
- Used in contexts where bayonet locking and the possibility of replacing the crimp sleeve are desired.
Additional Information
- Product series: 16BV series (specified by manufacturer).
- Connection principle: crimp sleeve for cable contact.
- Contact mechanism: bayonet locking.
Specifications
- Manufacturer: STAUBLI.
- Part number / manufacturer number: 15.0611-22.
- Product name: KST16BV-NS/M40-50H plug (16BV series).
- Connection type: Crimp sleeve cable connection.
- Intended cables: Flexible cables (class 5).
- Special feature: Interchangeable crimp sleeve.
- Rated current: 200 A.
- Available accessories (stated by manufacturer): protective cover DST16-NS and tool WKZ-16BV-NS-A.
- Source: Manufacturer's product page (link under Documentation above).
