DC milliohm meter from GW‑INSTEK

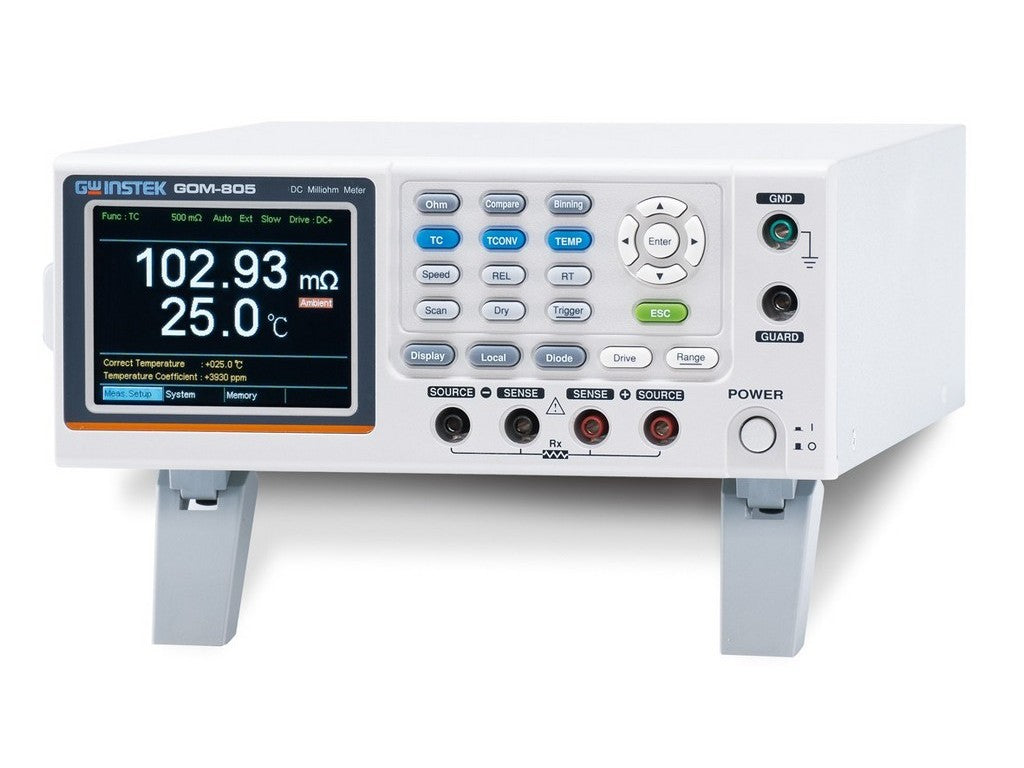

The GOM-805 is a DC milliohm meter in GW‑INSTEK's GOM-800 series. The instrument is designed for precise four-wire resistance measurement and includes functions for temperature measurement and temperature compensation, as specified by the manufacturer.Features and User Interface
The GOM-805 has a 3.5" (320 × 240) TFT LCD screen with a 50,000-count display. The device offers high accuracy (stated as 0.05% precision) and supports fast sampling up to 60 readings per second. The test current is 1 A according to the manufacturer's product text.Drive Modes and Functionality
A range of drive modes are documented for the GOM-805: DC+/DC-, Pulsed, PWM, Zero, and Standby. The GOM-805 also includes "Dry circuit" functionality, which is listed separately for this model in the manufacturer's information.Communication and I/O
According to the manufacturer, the GOM-805 comes with several interfaces: USB device port, RS-232C, a D-sub 25-pin Handler/Scan/EXT I/O, and GPIB (GOM-805: standard, while GOM-804 is mentioned as a possible option). The information in this product description is based on the manufacturer's product page for the GOM-805 from GW‑INSTEK.Specifications
- Product Name: GOM-805
- Manufacturer: GW‑INSTEK
- Series: GOM-800
- Type: DC milliohm meter (four-wire measurement)
- Display: 3.5" (320 × 240) TFT LCD, 50,000-count
- Accuracy: 0.05% (stated by the manufacturer)
- Sampling: Up to 60 readings/second
- Test current: 1 A
- Temperature: Temperature measurement and temperature compensation (stated by the manufacturer)
- Dry circuit: Included (GOM-805)
- Drive modes: DC+/DC-, Pulsed, PWM, Zero, Standby
- Interfaces: USB device, RS-232C, D-sub 25-pin Handler/Scan/EXT I/O, GPIB (standard on GOM-805)
