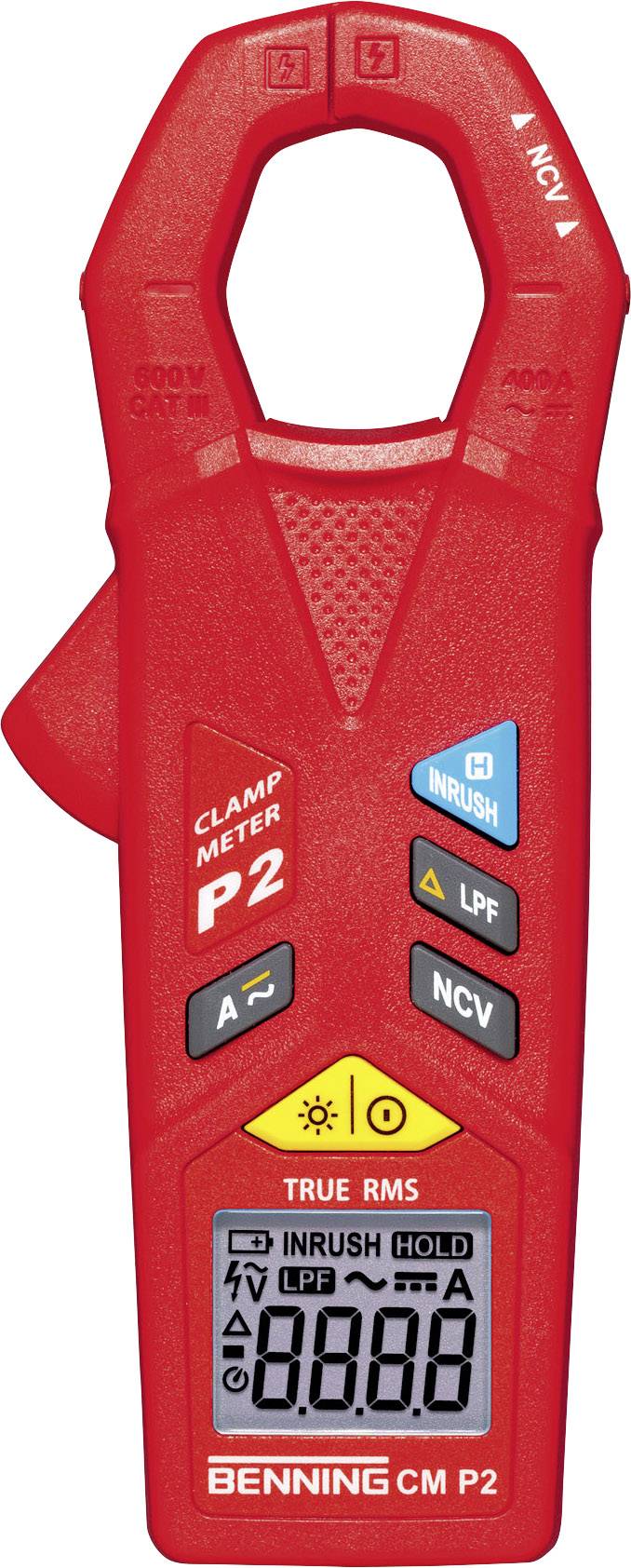

BENNING CM P2
The BENNING CM P2 is a small, pocket-sized clamp meter for measuring current without breaking the circuit. It is designed for both AC and DC measurements and uses TRUE RMS, so it can be used when the signal is not perfectly clean and uniform. This makes it relevant for many tasks where a quick and precise overview of current consumption is needed.
An important function is INRUSH measurement, which is used to capture inrush currents when equipment is switched on. In addition, it has a low-pass filter at approximately 160 Hz, which can be useful when attenuating higher frequency components in the measurement. The illuminated jaw opening is up to 23 mm, making it suitable for small and medium-sized conductors.
The display is an illuminated 4-digit LCD, making reading easier in poor lighting. The instrument is compact, weighing only 140g, and comes with batteries and a protective case. It is also rated for measurement category CAT III 600 V, which is relevant in professional electrical environments where safety and correct measurement equipment are closely linked.
Typical applications
Current is measured directly on conductors for service, troubleshooting, and continuous monitoring. This makes the clamp meter practical when working quickly or when space around the installation is limited.
Specifications
- TRUE RMS mini clamp meter
- Measures AC and DC current up to 400 A
- INRUSH measurement
- Low-pass filter: approx. 160 Hz
- Max. jaw opening: 23 mm
- Illuminated 4-digit LCD
- Max. resolution: 10 mA in the 40.00 A range
- Accuracy: ±2% of reading + 5 digits
- Measurement category: CAT III 600 V
- Dimensions: 149 x 59 x 27 mm
- Weight: 140 g
- Supplied with 2 × 1.5 V (IEC LR03) batteries
- Supplied with protective carrying case
- See datasheet from the manufacturer
