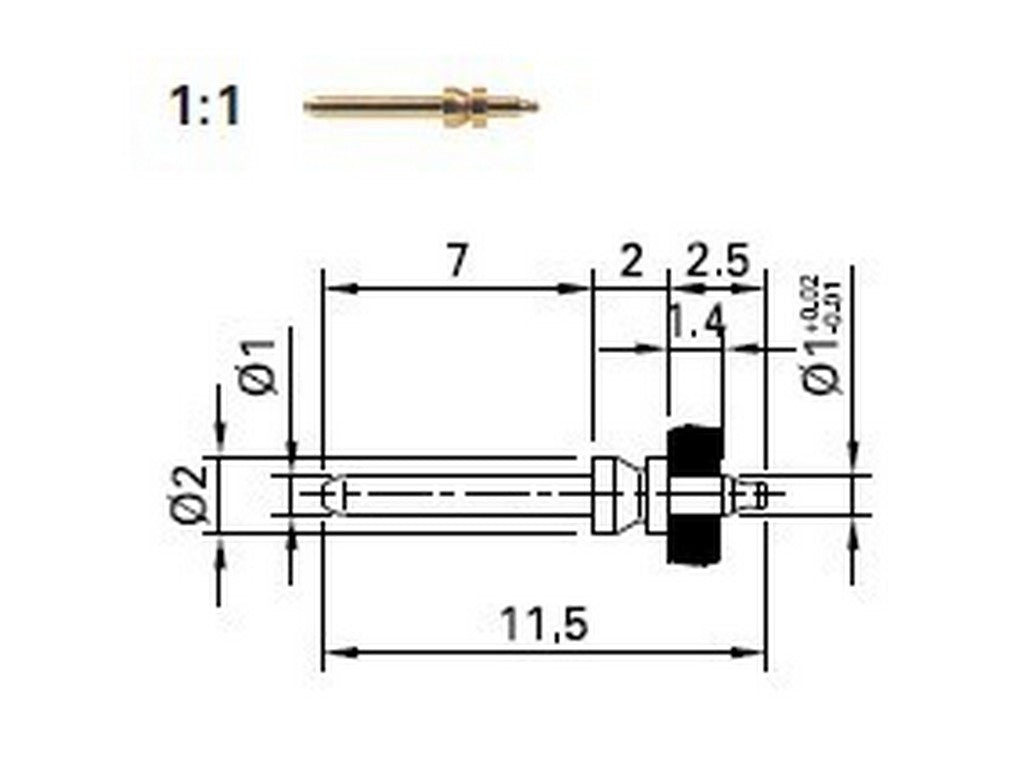

Miniline connector for PCB mounting S1-F

CAD component from STAUBLI Miniline

This description concerns the S1-F from Stäubli (STAUBLI) as a CAD component in the Miniline product series. The product is registered in the Stäubli Electrical Connectors CAD catalog with the manufacturer's part number 42.0005 and the catalog description "S1-F". The information is sourced from the Stäubli CAD catalog and includes filename and available CAD formats.

Identification and CAD data

• Manufacturer: STAUBLI.
• Part number: 42.0005.
• Catalog description: S1-F.
• CAD component filename: CAD-Bauteil 10081014.ipt.
• Available CAD formats: ipt, igs, sat, stp.
• Created with: INVENTOR 2016 (according to catalog information).

The information on the catalog page indicates that the CAD files are part of the Stäubli IS Miniline catalog. The catalog entry does not contain a separate, downloadable datasheet in PDF format, and there are no image or video links associated with the entry.

Documentation

See the verified catalog entry for further CAD information and download options via the Stäubli CAD catalog.

Sources

Stäubli CAD catalog (Miniline)

Specifications

• Manufacturer: STAUBLI.
• Part number: 42.0005.
• Catalog description: S1-F.
• CAD file: CAD-Bauteil 10081014.ipt.
• Available CAD formats: ipt, igs, sat, stp.
• Created with: INVENTOR 2016.

The content is generated using AI – we reserve the right to make errors.
Contact HIN for further information about the product.
