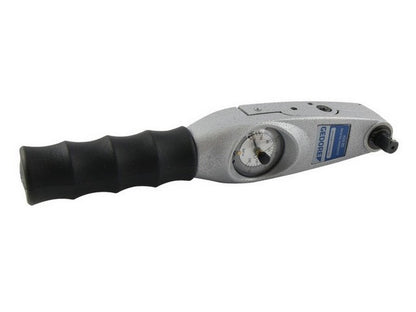

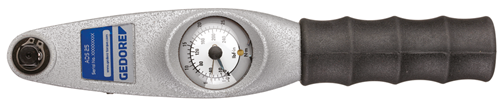

Torque Wrench: GEDORE ADS 40 F
This product description covers the GEDORE ADS 40 F (item no. 3108538), a dial-indicating torque wrench for controlled tightening and verification of torque values. The product's primary function and main characteristics are documented by the manufacturer GEDORE.
Design and Function
- Dial-indicating torque wrench with dual scale and drag pointer.
- 3/8" (10 mm) double-square drive with ball lock for controlled tightening in both directions (clockwise and counter-clockwise).
- Integrated ratchet function (for models ADS 4 to ADS 40) and mechanical overload protection (stop up to 25% above maximum value).
- Aluminum housing and black, non-slip rubber grips.
Documentation
Further manufacturer information can be found on GEDORE's product page: See manufacturer's product page.
Typical Applications
- Use: Controlled tightening and verification of torque values.
- Areas of application: Production, Quality control, Maintenance and repair (as indicated by the manufacturer).
Specifications
- Product name: GEDORE ADS 40 F (item no. 3108538).
- Torque range: 8–40 Nm (6–30 lbf·ft).
- Display accuracy: ±4% of the indicated value.
- Scale division: 1 Nm; graduation lbf·ft: 1 lbf·ft.
- Drive: 3/8" (10 mm) double-square drive with ball lock.
- Direction: Controlled tightening with both right- and left-hand rotation.
- Overload protection: Mechanical stop up to 25% above maximum value.
- Materials: Aluminum housing, black non-slip rubber grips.
- Dimensions: Total length 244 mm; total height 61 mm.
- Weight: 0.52 kg.
- Test and traceability: According to the manufacturer acc. to DIN EN ISO 6789, traceable to national standards; test certificate specified as DIN EN ISO 6789-2:2017.
- Model series features: Integrated ratchet function (ADS 4–ADS 40) and EPA/ESD compliant for electrostatic sensitive applications.
Source: Manufacturer information from GEDORE's product page for ADS 40 F (item no. 3108538).
