Product Overview

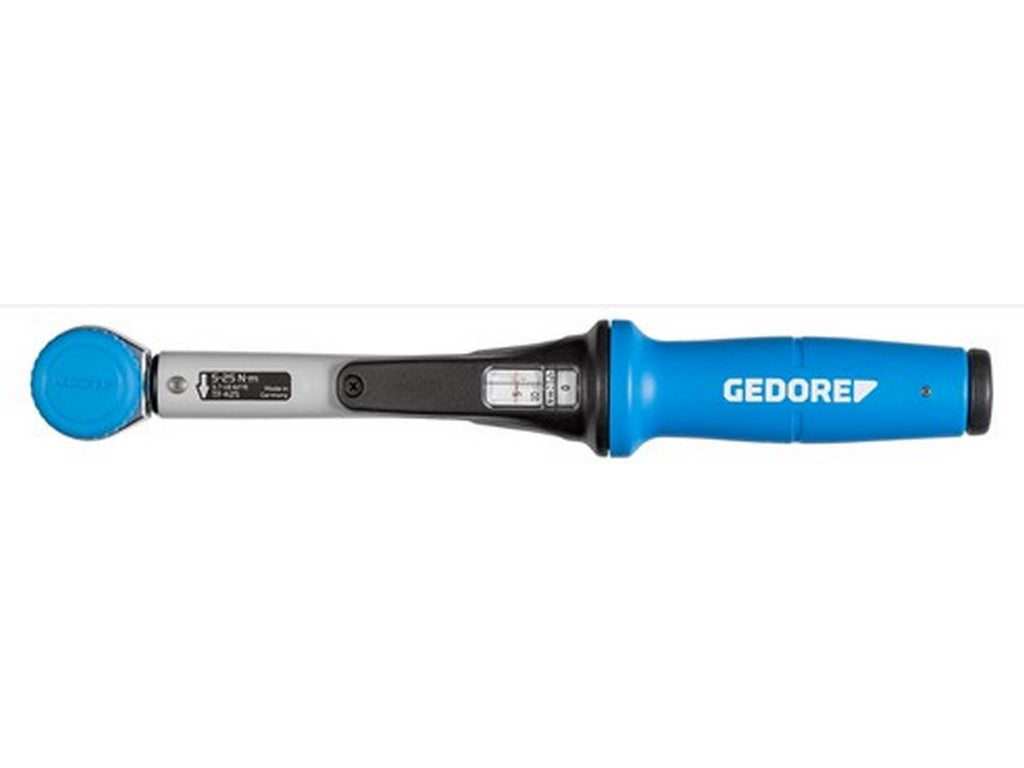

The GEDORE TF-K25 is a TORCOFIX K torque wrench in size 1/4" (item number 3288234) with a specified torque range of 5–25 Nm (3.7–18 lbf·ft). This adjustable, click-type tubular torque wrench features a built-in ratchet and a 1/4" square drive, and is classified and calibrated by the manufacturer according to applicable standards.Technical Description
The GEDORE TF-K25 is constructed as a robust, powder-coated tubular design with a galvanized ratchet and quality plastic components. The tool is designed with a dual scale (Nm / lbf·ft) and a vernier (Nonius) allowing reading and setting in 0.1 Nm intervals. The torque wrench comes with a traceable calibration certificate and is adjusted to a maximum permissible deviation of ±3% in accordance with DIN EN ISO 6789-2:2017 Type II Class A.Typical Applications
- Assembly
- Production
- Maintenance and repair
Further Information
Additional technical data and product information can be found with the manufacturer GEDORE. The manufacturer's product text specifies, among other things, calibration length, dimensions, weight, and delivery contents.Specifications
- Product name: GEDORE TF-K25 (Code no. 3288234)
- Torque range: 5–25 Nm (3.7–18 lbf·ft)
- Drive: 1/4" square drive (6.3 mm)
- Type: Adjustable, click-type tubular torque wrench with integrated ratchet
- Standard classification: DIN EN ISO 6789-2:2017 Type II Class A
- Calibration accuracy: Max. permissible deviation ±3% (traceable test certificate provided)
- Scale: Dual Nm / lbf·ft with vernier (Nonius) for 0.1 Nm
- Calibration length: 200.5 mm
- Dimensions: Total length 273 mm; total width 39 mm; total height 39.8 mm
- Weight: 0.68 kg
- Number of teeth (ratchet): 36
- Return angle: 10°
- Trigger mechanism: Short path triggering
- Delivery: Plastic box, 1 pc.
- EAN: 4010886965566
