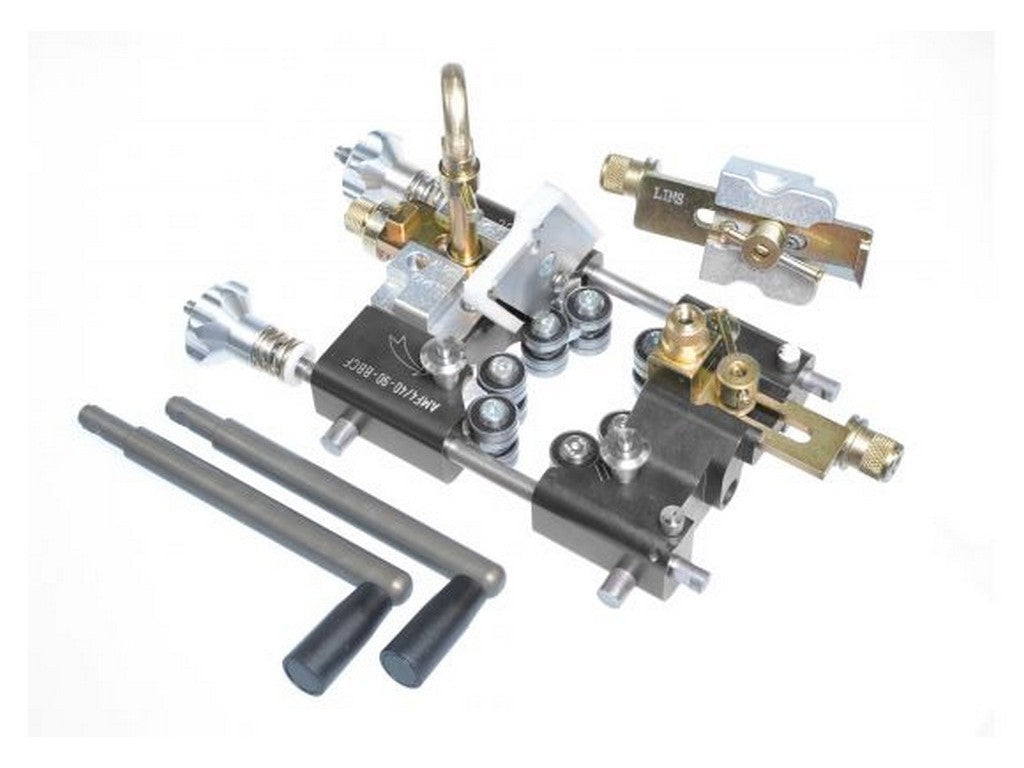

ALROC CAMF4/40-90-BBCF
The ALROC CAMF4/40-90-BBCF is a multifunctional tool for high-voltage cables, designed to remove both bonded semiconductor and insulation. In practice, this means that the same tool can be used for several steps in the stripping process, instead of switching between different tools during work.
When removing bonded semiconductor, the tool operates very stably. The 16 ball bearings are in contact with the cable and help guide the rotation, so the tool moves more smoothly around the cable. At the same time, the cable is rounded over the insulation, maintaining a uniform diameter so that the blade does not cut too deeply into the insulation. A chamfer can also be made at the transition.
When the insulation needs to be removed, the tool is equipped with a back-iron, which allows for adjusting the tool's pitch. This helps to make rotation easier during the stripping itself. This is a practical detail when working with cables where control over the cut is important.
The tool is for cables with a diameter from 40 to 90 mm. The verified technical data indicates a maximum cutting depth into the insulation of 35 mm, a remaining semiconductor length of 55 mm, and a maximum scoring depth of 2.5 mm.
See data sheet from the manufacturer
Typical applications
The tool is used in cable and connection work, especially in production and industry, where high-voltage cables are handled.
Specifications
- Manufacturer: ALROC
- MPN: CAMF4/40-90-BBCF
- Cable increase / diameter range: 40-90 mm
- Max. cutting depth: 35 mm
- Remaining semiconductor length: 55 mm
- Max. score depth: 2.5 mm
- Weight: 3.9 kg
- Length: 460 mm
- Width: 155 mm
- Height: 150 mm
