Fluke SMFT-1000/KIT Solar Test Kit
This is a test kit for working with solar panel systems. The kit combines a multifunction PV analyzer with the accessories typically used when a system needs to be checked, measured, and documented in practice.

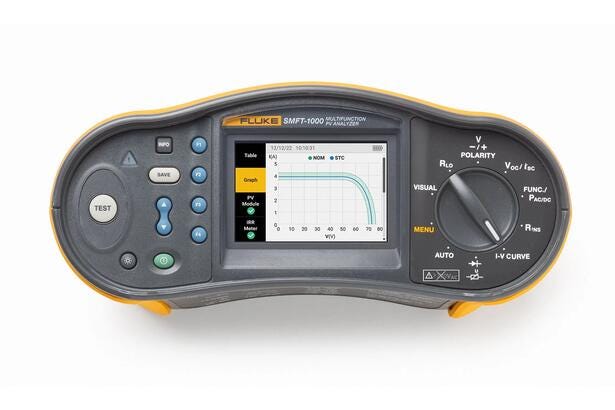

The core of the kit is the SMFT-1000, which is used to test both the safety and performance of PV systems. Among other things, it can measure open-circuit voltage, short-circuit current, insulation resistance, and protective conductor resistance, and it can also perform I-V curve tests. It is precisely this combination that makes the instrument relevant for installation, commissioning, and ongoing service of solar panel systems.
What makes the kit practical is especially the included components. It comes with a wireless irradiance meter with an external temperature probe, so measurements can be put into context with the conditions under which the solar cells operate. In addition, there is a current clamp, which is used when measuring current without interrupting more than necessary. Overall, this makes work smoother in the field and provides a more complete test process.
The kit is therefore ideal for checking whether a PV system delivers as expected and whether the installation is safe to put into operation. It is particularly suitable for professionals working with solar panel systems up to 1000 V DC and needing both measurement, analysis, and documentation in the same setup.
You can read more here:
See datasheet from the manufacturer
Specifications
- Solar test kit with SMFT-1000 multifunction PV analyzer
- Supports I-V curve testing
- Measures open-circuit voltage (Voc) up to 1000 V DC
- Measures short-circuit current (Isc) up to 20 A DC
- Supports IEC 62446-1 category 1 and category 2 testing
- Can perform protective conductor resistance (Rpe) testing
- Can perform insulation measurement (Rins)
- Can perform polarity check and visual inspection recording
- Includes IRR2-BT wireless irradiance meter with external temperature probe
- Includes i100 AC/DC current clamp
- Item number: 5280005
Content generated using AI - we reserve the right for errors.
Contact HIN for further product information.
