Product Overview

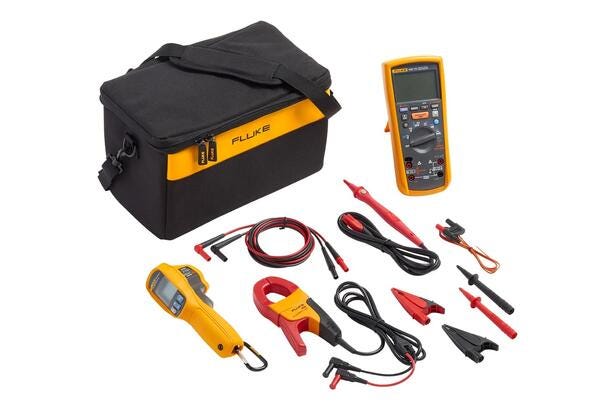

The Fluke 1587-62 MAX Plus FC Kit is a measurement kit from FLUKE, which combines a 1587 FC 2-in-1 insulation digital multimeter, an i400 AC current clamp, and a 62 MAX+ infrared thermometer. Technical data for the individual units is provided by the manufacturer and listed below.Kit Contents

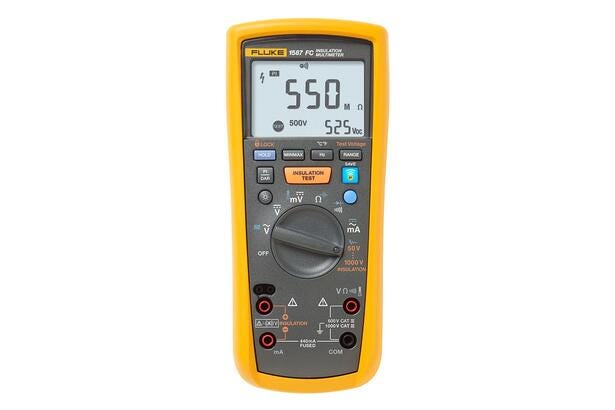

- Fluke 1587 FC 2-in-1 insulation digital multimeter
- Fluke i400 AC current clamp
- Fluke 62 MAX+ infrared thermometer
Technical Description
The Fluke 1587-62 MAX Plus FC Kit combines insulation measurement, AC current measurement, and infrared temperature measurement in one delivery package. The 1587 FC unit supports insulation test voltages and resistance range as listed below. The i400 provides an analog output of 1 mA per ampere and indicates nominal and maximum values. The 62 MAX+ measures temperature over a specified temperature range and has specified ingress protection (IP) rating and drop resistance.
Typical Applications
- Insulation resistance measurement using the Fluke 1587 FC with the specified test voltages and measurement range.
- AC current measurement using the Fluke i400 within the specified nominal measurement range and maximum non-destructive current.
- Non-contact temperature measurement with the Fluke 62 MAX+ within the specified temperature range.
For detailed technical documentation and additional information about the 1587 FC, the manufacturer's calibration and service manual is available. See data sheet from the manufacturer
Specifications
- Kit: Fluke 1587 FC insulation DMM, Fluke i400 AC current clamp, Fluke 62 MAX+ infrared thermometer
- Insulation test voltages (1587 FC): 50 V, 100 V, 250 V, 500 V, 1000 V
- Insulation test range (1587 FC): 0.01 MΩ to 2.0 GΩ
- i400 AC current clamp: nominal 1 A to 400 A AC
- i400 maximum non-destructive current: 1000 A
- i400 output: 1 mA/A
- Fluke 62 MAX+ temperature range: -30 °C to 650 °C
- Fluke 62 MAX+ ingress protection (IP) rating: IP54
- Fluke 62 MAX+ mechanical impact resistance: designed to withstand drops from 3 m
- Manufacturer: FLUKE, item number: 4692778
