Product Overview

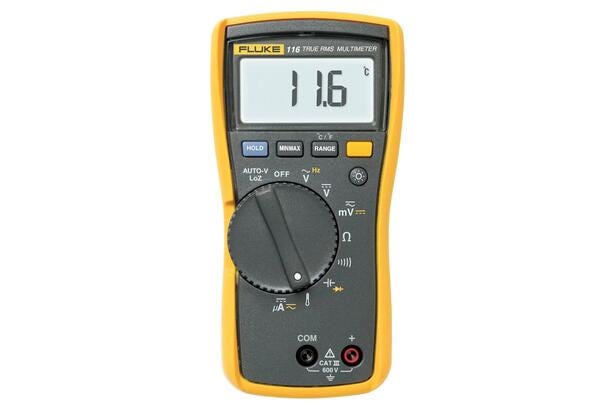

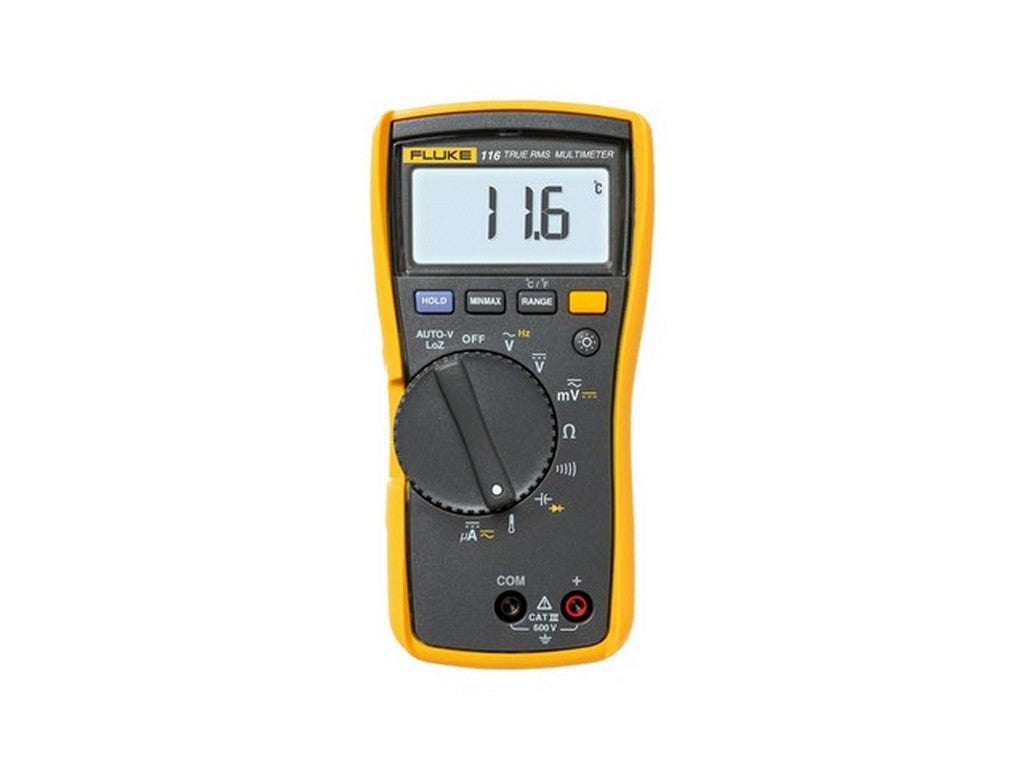

The Fluke 116 HVAC multimeter is a compact True-RMS digital multimeter designed for HVAC troubleshooting. The multimeter measures AC and DC voltage up to 600.0 V and AC/DC microamps up to 600.0 µA. A built-in Type-K temperature meter allows for temperature measurements from -40 °C to 400 °C. The Fluke 116 also provides measurements of resistance, continuity, frequency, and capacitance, as well as Min/Max/Average recording.
Features
- True-RMS measurements for more accurate AC readings
- Built-in Type-K thermometer (-40 °C to 400 °C)
- AC/DC μA measurement (up to 600.0 μA) suitable for testing flame sensors
- LoZ (low input impedance) to prevent false ghost voltages
- Min/Max/Average with time stamp to record signal variations
- Large white LED backlight for working in poorly lit areas
Typical Applications

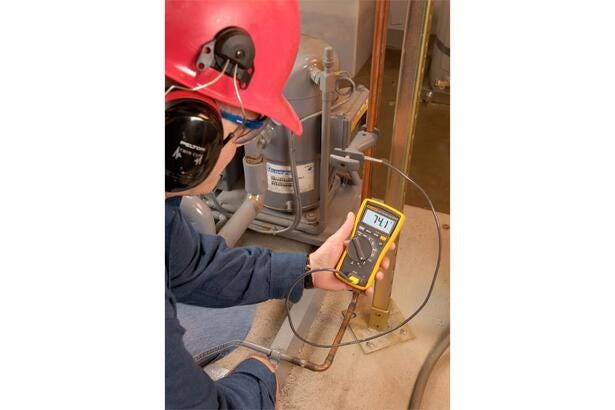

The Fluke 116 is used for troubleshooting HVAC equipment and for testing flame sensors, including measuring temperature and low currents in microamps for flame monitoring. These applications are described in the manufacturer's documentation for the Fluke 116.
Documentation
For detailed technical data and accuracy specifications, please refer to the manufacturer's datasheet:
Specifications
- Product: Fluke 116 HVAC multimeter
- Measurement ranges: AC/DC voltage up to 600.0 V; AC/DC μA up to 600.0 μA
- Temperature (Type-K): -40 °C to 400 °C
- Resistance: up to 6 MΩ (stated in manufacturer's data)
- Functions: True-RMS, Min/Max/Average, LoZ, continuity, frequency, capacitance
- Display: 6000 counts; bar graph 33 segments
- Safety rating: IEC 61010-2-033 CAT III 600 V (stated as CAT III 600 V)

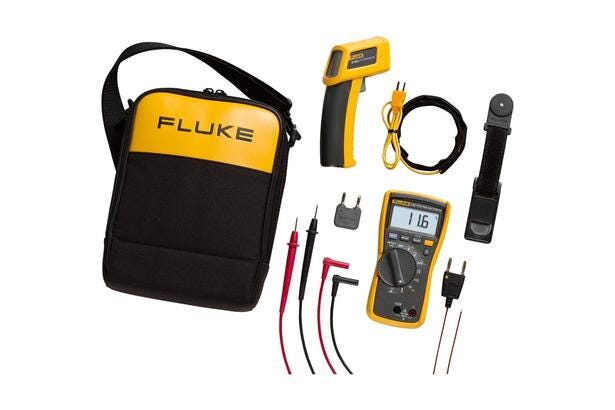

- Included in standard package: TL75 test leads, 80BK-A integrated temperature probe, holster, and installed 9 V battery
- Operating temperature: -10 °C to +50 °C; storage: -40 °C to +60 °C
- Battery: 9 V alkaline (IEC 6LR61); typical battery life 400 hours without backlight
- Warranty: Three-year warranty
