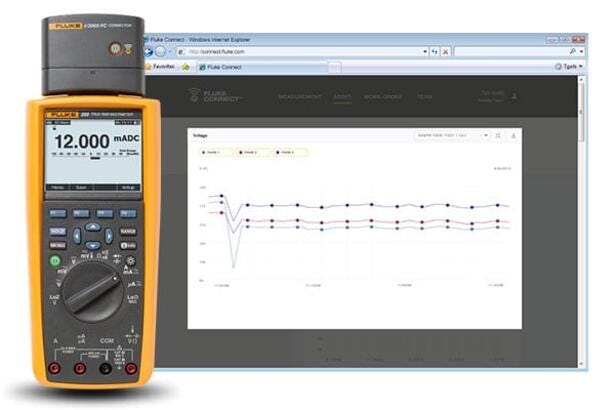

Fluke 289 multimeter with FlukeView Forms and ir3000 FC
This is a combination kit for measuring, logging, and documenting electrical signals. The package includes a Fluke 289 multimeter, FlukeView Forms software with cable, and an ir3000 FC infrared interface for wireless data transfer.
It is particularly relevant when you not only need to take a single measurement but also monitor a process over time. The multimeter can store measurements in a built-in data logger, and TrendCapture allows you to view the recorded data graphically directly on the instrument. This is useful if you need to find intermittent faults, monitor systems, or document variations in a signal while work continues elsewhere.

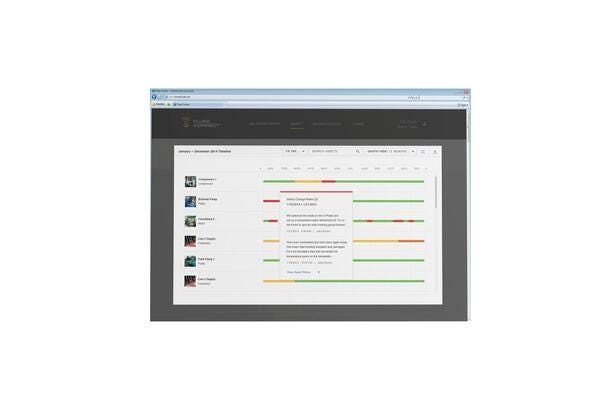

FlukeView Forms is used with the measurements so that data can be collected, stored, and processed on a PC. This makes it easier to create clear documentation and compare multiple measurement series. With ir3000 FC, measurements can also be sent wirelessly to the Fluke Connect app for sharing on the go.
The instrument is therefore suitable for tasks where ordinary voltage and current measurement is not enough, and where there is also a need for history, overview, and reporting. It can be a good solution in maintenance, troubleshooting, and other professional service where measurement data needs to be used further afterwards.
You can read more here:
See datasheet from the manufacturer
See product video from the manufacturer
Specifications
- Fluke FLK-289/FVF/IR3000 combination kit, item number 3947812

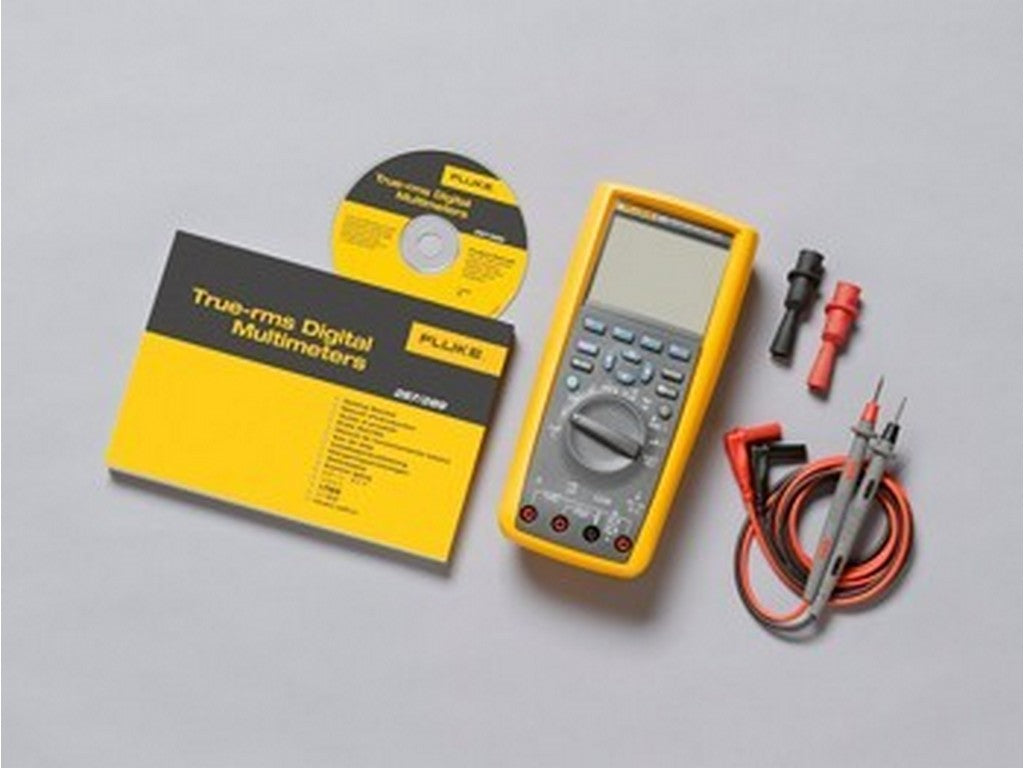

- Includes Fluke 289 multimeter, FlukeView Forms with cable, and ir3000 FC infrared interface
- Built-in data logger with TrendCapture
- Can store up to 15,000 recorded events
- 50,000-count display in 1/4 VGA format
- True RMS AC measurement
- AC bandwidth: 100 kHz
- Measures DC and AC voltage up to 1000 V
- Measures current up to 10 A, and up to 20 A for 30 seconds
- Wireless data transfer to Fluke Connect via ir3000 FC
- Power supply: 6 AA batteries
- Weight: 870.9 g
