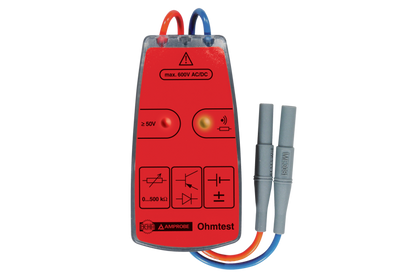

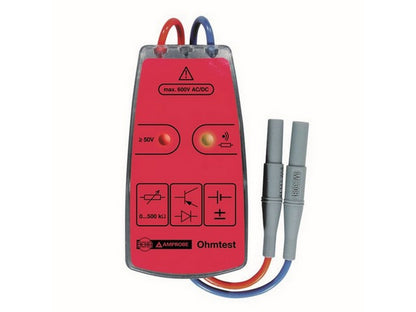

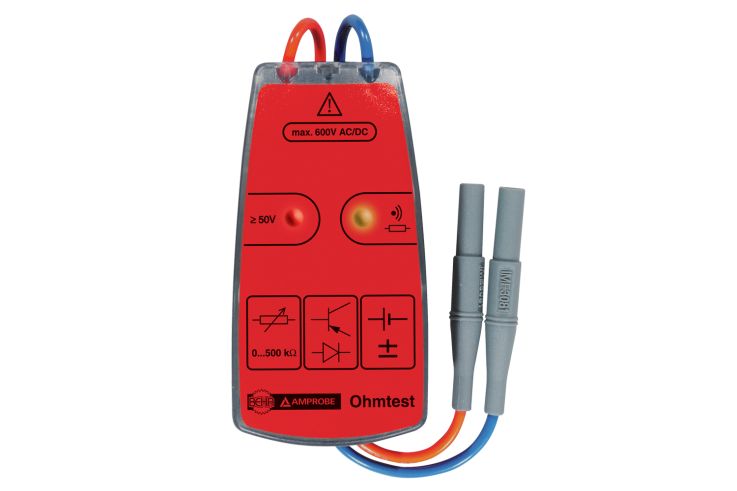

Amprobe 9072-D Ohmtest
The Amprobe 9072-D Ohmtest is a handheld continuity tester used to check for connection in a wire, component, or circuit part. It also measures resistance in the range of 0...500 kΩ, making it suitable for various simple control tasks in electrical and electronics work.
The instrument operates with a very low test current, approximately 5 µA, and the test voltage is below 9 V. This means it is suitable for sensitive measurements where low load is desired. Additionally, it has external voltage indication for 50...600 V, allowing for quick detection of voltage presence before proceeding.
It is voltage-resistant up to 600 V, making it usable in environments where higher voltages may occur. In practice, it is a simple and robust helper for troubleshooting, checking continuity, and quickly testing, for example, resistance, semiconductors, polarity, bulbs, and fuses.
Alligator clips, two probes, and a user manual are included, so it is ready for general service and installation work right away.
Typical applications
- Checking continuity in wires and connections
- Resistance measurement in the range of 0...500 kΩ
- Checking semiconductors and polarity
- Testing bulbs and fuses
- Quick check for the presence of external voltage
Specifications
- Manufacturer: AMPROBE
- MPN: 3454373
- Model: 9072-D Ohmtest
- Type: handheld continuity tester
- Measurement range: 0...500 kΩ
- Typical test current: approx. 5 µA
- Test voltage: below 9 V
- External voltage indication: 50...600 V
- Voltage resistant up to: 600 V
- Power supply: 1 x 9 V battery (IEC 6LR61)
- Protection class: IP40
- Dimensions: 110 x 58 x 24 mm
- Weight: approx. 150 g
- Includes: alligator clips, two probes, and user manual
- Datasheet: See datasheet from the manufacturer
