OPTA — Eyepiece-less Stereo Microscope

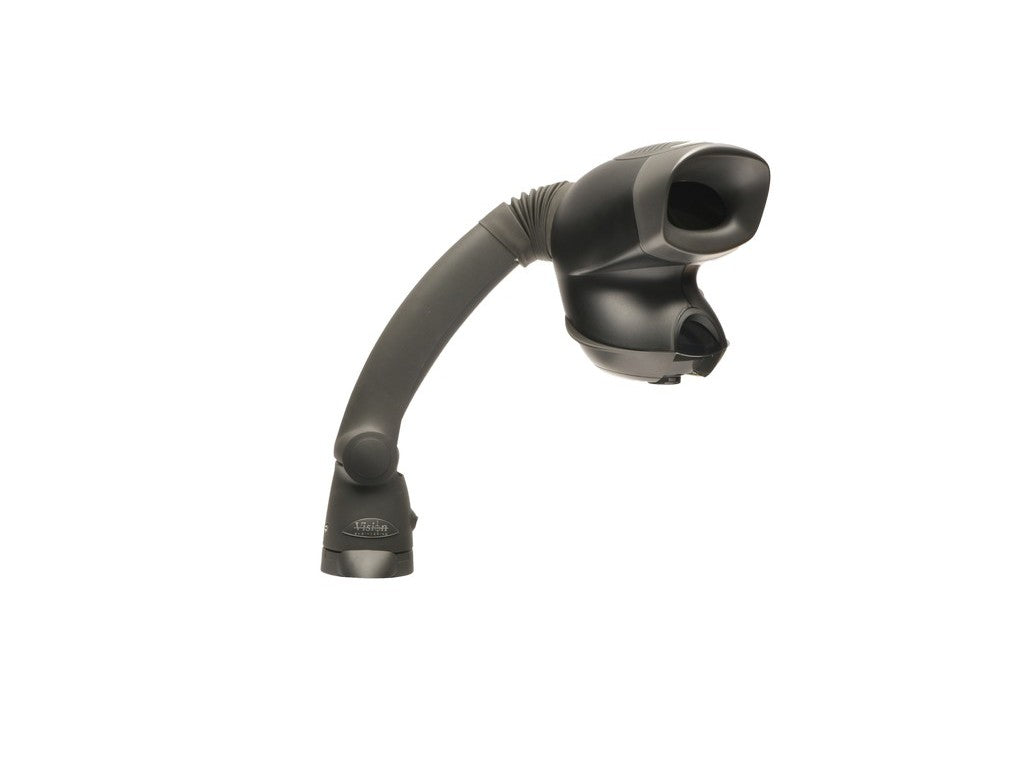

OPTA is an eyepiece-less 3D stereo magnifier that provides stereoscopic vision at 4x and 6x magnification. The instrument's main function is to offer a direct, three-dimensional view of the subject with enhanced depth perception and hand-to-eye coordination. System part number MOS005 specifically refers to OPTA with a 4x objective and universal stand kit.
Technical Overview
OPTA offers two objectives (4x and 6x) with specified working distances and fields of view, as well as integrated LED illumination. The power supply follows a standard global configuration with 100–240 V, 50/60 Hz.
Sources
See product page from manufacturer
Typical Applications
- Electronics: used for inspection and rework of electronic components and solders.
- Precision engineering: inspection of component finish, detection of defects in anodizing or hardening, and tool setup for deburring.
- Education and training: quick changes between users without the need for eyepiece adjustment for observation and teaching.
- Plastics and rubber: inspection at long working distance, e.g., flash removal from molded parts.
- Dental laboratories: inspection of dental frames for fit and finish.
Documentation and Support
Further product information, technical data, and support materials are documented on the manufacturer's product page. System part number MOS005 is specified as a configuration with a 4x objective and universal stand kit. The power supply is delivered in standard 100–240 V, 50/60 Hz versions with global plug configurations.
Specifications
- Product name: OPTA.
- System part number: MOS005 (OPTA + 4x objective + universal stand kit).
- Magnifications: 4x and 6x.
- 4x objective: working distance 96 mm; field of view (FOV) 27.5 mm.
- 6x objective: working distance 73 mm; field of view (FOV) 19.2 mm.
- Illumination: 20 LED; brightness measured at sample plane ~9,400 lux; color temperature ~7000 K; lifespan up to 10,000 hours.
- Power: Standard 100–240 V, 50/60 Hz.
- Stand options: Crescent stand, Square stand, Universal arm (maximum dimensions specified by manufacturer).
