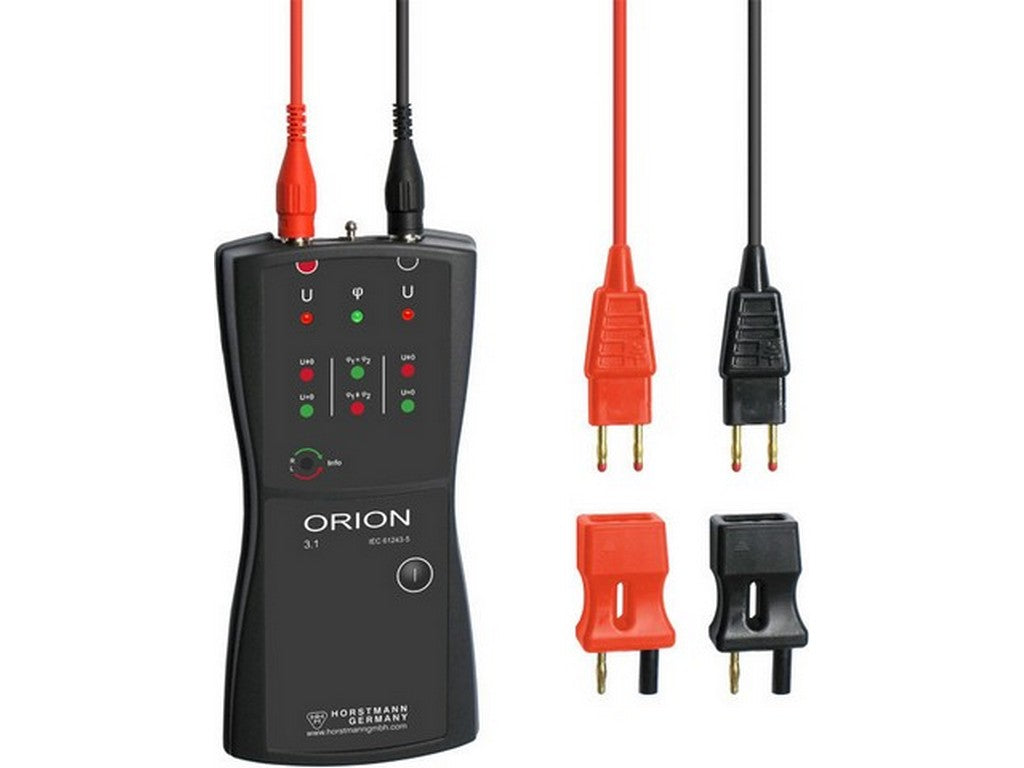

Orion 3.1 — Phase Comparator and Voltage Tester
The Orion 3.1 from HORSTMANN is a mobile testing and display unit for voltage testing, phase comparison, and coupling part testing on LRM and HR interfaces for medium-voltage switchgear in accordance with IEC 61243-5. The unit provides voltage display and rotating field direction, and includes visual and acoustic signals and automatic self-testing for operational safety.
Function and Design
The Orion 3.1 is designed as a handheld measuring device with a compact housing and ergonomic design. It supports nominal frequencies of 16.7 Hz, 50 Hz, and 60 Hz, and the input impedance is specified at 2.0 MΩ (±2 %). The unit is powered by four AA (LR6) cells.
Typical Applications
- Used for voltage testing on LRM and HR interfaces in medium-voltage switchgear.
- Used for phase comparison (rotating field direction) on the specified interfaces.
- Used for coupling part testing on LRM/HR interfaces.
Documentation
Further details and product information can be found on the manufacturer's product page:
See manufacturer's product page
Specifications
- Product: Orion 3.1.
- Manufacturer: HORSTMANN.
- Manufacturer's item number: 51-0206-101.
- Function: Mobile testing and display unit for voltage testing, phase comparison, and coupling part testing (IEC 61243-5).
- Nominal frequency: 16.7 Hz, 50 Hz, 60 Hz.
- Input impedance: 2.0 MΩ (±2 %).
- Response threshold, voltage test: 2.1 µA (4.2 V at 2.0 MΩ) at 50 Hz.
- Response threshold, phase comparison: ±30°.
- Response threshold, coupling part test: 3.2 µA (6.4 V at 2.0 MΩ) at 50 Hz.
- Power supply: 4 × AA (LR6) batteries.
- Weight: 380 g (incl. batteries).
- Housing dimensions: 220 mm × 100 mm × 40 mm.
- Protection class: IP40 or IP54.
- Operating temperature: -25 °C to +55 °C.
- Specified operating time/lifetime: 6 years, 1,000 standby cycles/year.
Source: Manufacturer's product page.
