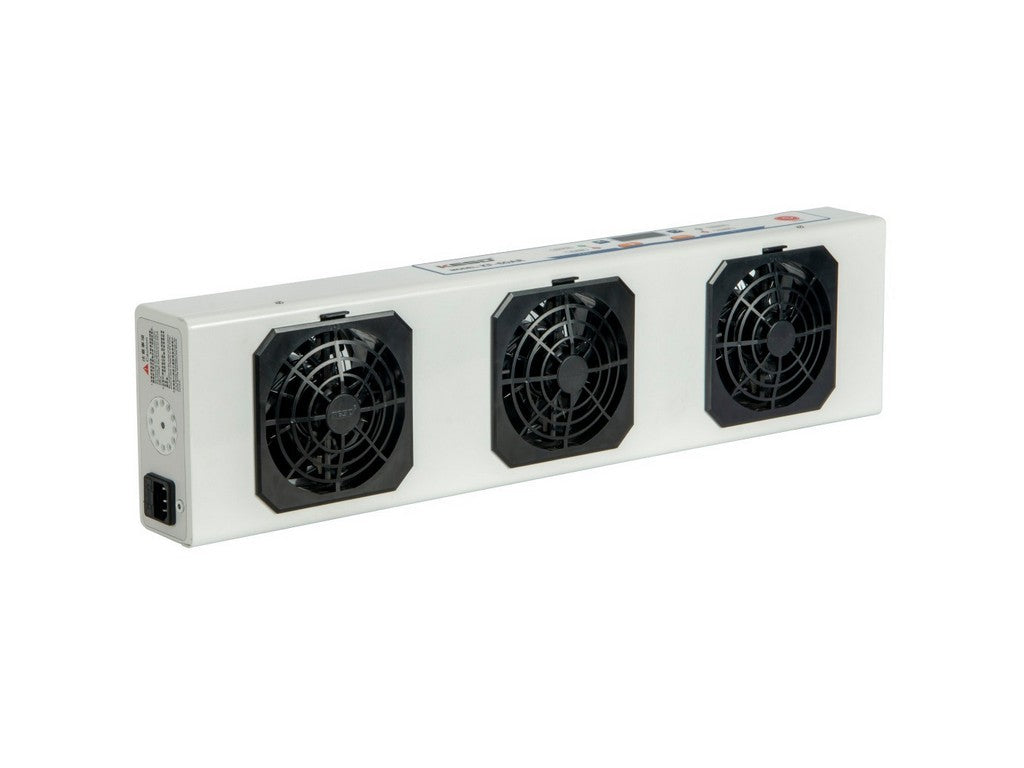

Overhead Ionizing Air Blower KF-60AR from KESD
This overhead ionizing air blower KF-60AR from KESD is specified as a professional anti-static device. The core function of the device is air ionization to achieve static electricity neutralization. Product identity and technical parameters are taken from the manufacturer's product page.
Key Features
- Model: KF-60AR.
- Power supply: DC24V.
- Automatic ion balance system specified to 0 ± 10 V.
- Reversible fan function for cleaning the unit.
- Automatic cleaning function for discharge needles.
- Full machine interlocking and wireless monitoring supported (LoRa + NB-IoT).
- LED display with adjustable cleaning/needle time 0–999 hours.
Operational Behavior and Indicators
The device has separate indicator lights for normal/normal discharge condition (green) and abnormal discharge (red). The airflow is specified as constant airflow in the range of 2.44–5.1 m³/min.
Specifications
- Product model: KF-60AR.
- Input voltage: DC24V.
- Ion balance (automatic): 0 ± 10 V.
- Air volume: 2.44–5.1 m³/min (constant airflow).
- Decay time at 300 mm: approx. 1.0–1.5 s; at 600 mm: 2.0–3.0 s; at 900 mm: 3.5–4.5 s.
- Ion balance at test distance: at 300 mm: 0 ± 10 V; at 600 mm: 0 ± 15 V; at 900 mm: 0 ± 20 V.
- Ozone concentration: below 0.015 ppm (at 50 mm).
- Applicable ambient temperature: 0–40 °C (non-condensing).
- Applicable humidity: 30–70 % RH (without water droplet condensation).
- Weight: 3.64 kg.
- Anti-static test conditions: Operating voltage DC24V; test voltage ±1000 V to ±100 V; ambient temperature during test 23 °C ± 2 °C.
- Functions: reversible fan for cleaning, automatic cleaning of discharge needles, full machine interlocking, wireless monitoring (LoRa + NB-IoT), LED adjustment of cleaning/needle time (0–999 hours).
The specifications above are taken from the manufacturer's product page for KF-60AR from Suzhou KESD Technology Co., Ltd. (manufacturer information).
