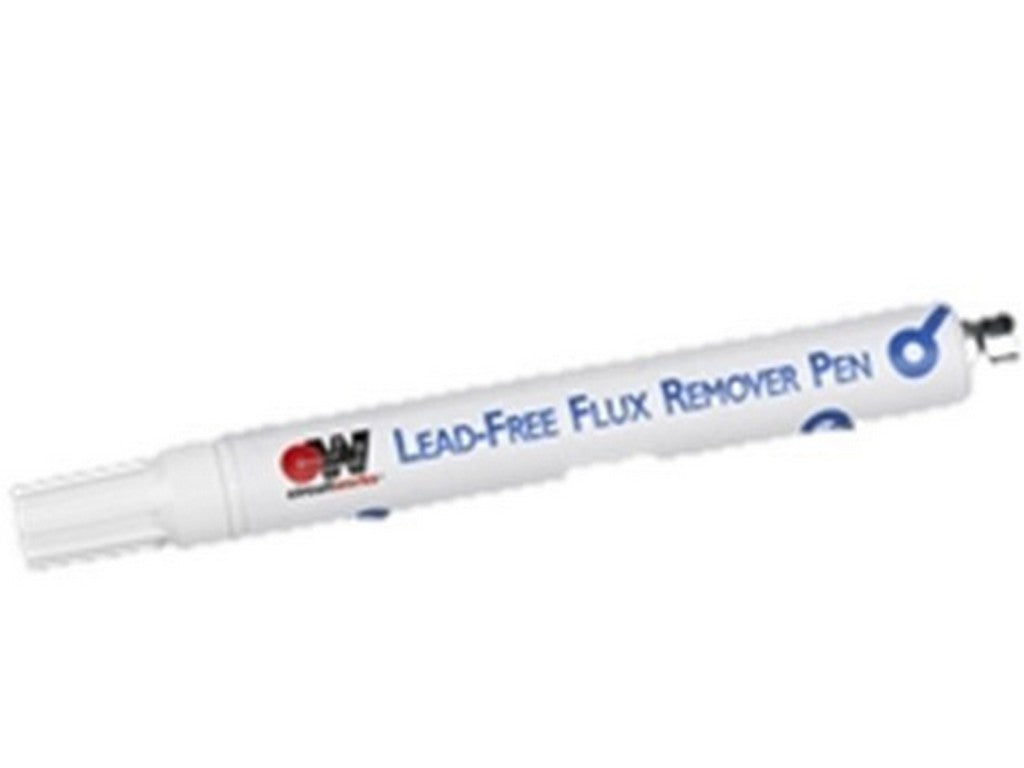

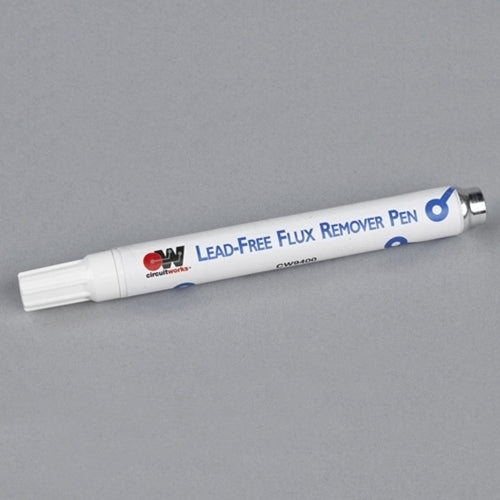

Flux Remover Pen
This product is the CircuitWorks Lead-Free Flux Remover Pen (CW9400) from CHEMTRONIC. The product is a cleaning pen designed for the removal of flux used in lead-free soldering and dispenses cleaning fluid through a marker-like tip for controlled spot cleaning and penetration into hard-to-reach areas.
Features
- Pen content: 9 g (0.32 oz)
- Removes Type R, RMA and RA rosin flux residues, as well as organic and synthetic no-clean fluxes
- Formulated to remove ionic and non-ionic residues
- Marker-style tip for controlled application
- Fast-drying liquid
- RoHS compliant
Instructions for use (from manufacturer)
- Hold the pen upright and press the tip briefly to start the liquid flow.
- Rub the pen over the flux residues to be removed.
- Wipe the side with a dry ControlWipe to remove dissolved residues.
Documentation
Technical data and additional product information can be found in the manufacturer's technical data sheet: See data sheet from the manufacturer.

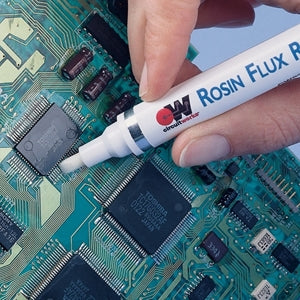

Typical applications
Areas of use are specified by the manufacturer and include the removal of flux residues on specific component types:
- Printed circuit boards
- Chip carriers
- Heat sinks
- Pads for surface-mounted devices (SMD pads)
- Switches
- Sockets
Specifications
- Product: CircuitWorks Lead-Free Flux Remover Pen (CW9400)
- Manufacturer: CHEMTRONIC
- Content: 9 g (0.32 oz)
- Removes: Type R, RMA and RA rosin flux as well as organic and synthetic no-clean fluxes
- Removes ionic and non-ionic residues
- Dosing: Marker-style tip for controlled application
- Drying: Fast-drying
- RoHS: Yes (RoHS compliant)
- Flash Point (TCC): 102 °F (39 °C)
- Vapor Density: >1 (air = 1)
- Surface Tension: 17.7 dyne/cm
- Appearance: Clear liquid
- Odor: Mild
- Shelf life: 5 years
- Product code/availability: CW9400 9 gm (0.32 oz)
