2-pole seal for PerforMore high-voltage connector

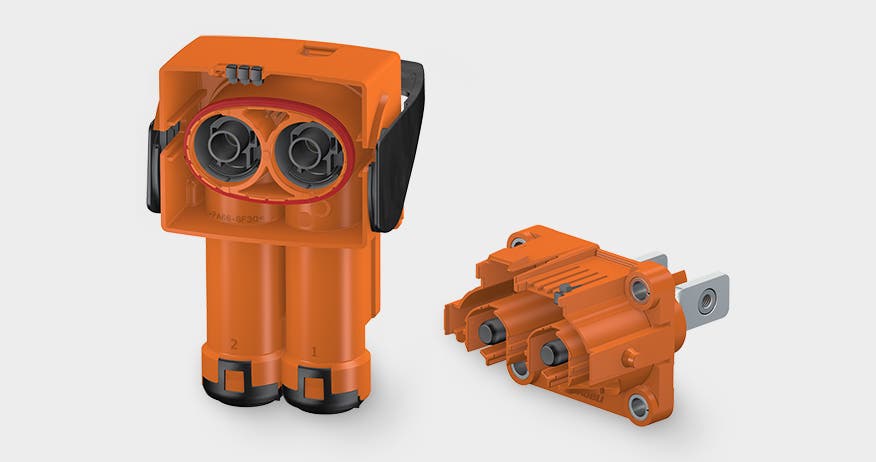

Stäubli 15.5894 (PM-SEAL2P) is documented as the 2-pole sealing component for the plug-side of the Stäubli PerforMore connector. The product is listed in the Stäubli PerforMore documentation and functions as a sealing part for the two-pole high-voltage connector that uses a 10 mm MULTILAM contact system.
Technical description
Stäubli 15.5894 (PM-SEAL2P) is explicitly identified as a plug-side seal in the PerforMore documentation. The PerforMore system uses a Ø 10 mm MULTILAM contact system and is stated in the manufacturer's material with a system rating of up to 600 A (depending on ambient temperature) and a rated voltage of DC 1000 V. The complementary socket-side sealing part is listed as Stäubli 15.5895 (PM-SEAL2S) in the manufacturer's spare parts list.
Documentation
Further technical details and system data for PerforMore can be found in Stäubli's official catalog and product documentation. See datasheet from the manufacturer
Typical applications
- Stated in manufacturer documentation as a component in vehicle applications within electric powertrains.
- Mentioned as suitable for components related to high power charging systems (HPC), high-voltage batteries, inverters, and high-voltage distribution units (HVDU) in the PerforMore documentation.
Specifications
- Manufacturer: STAUBLI
- Manufacturer number: 15.5894 (PM-SEAL2P)
- Function: 2-pole sealing component for the plug-side of the PerforMore connector (specified by the manufacturer)
- Contact system: Ø 10 mm MULTILAM (specified for the PerforMore system)
- System current: Up to 600 A (depending on ambient temperature) — specified in PerforMore documentation
- Rated voltage: DC 1000 V (specified in PerforMore documentation)
- Complementary part: 15.5895 (PM-SEAL2S) specified as the socket-side sealing part in the manufacturer's spare parts list
- Protection class (in connected/mated state) for PerforMore: IP68, IP6K9K — specified in the manufacturer documentation
