STAUBLI 15.5410

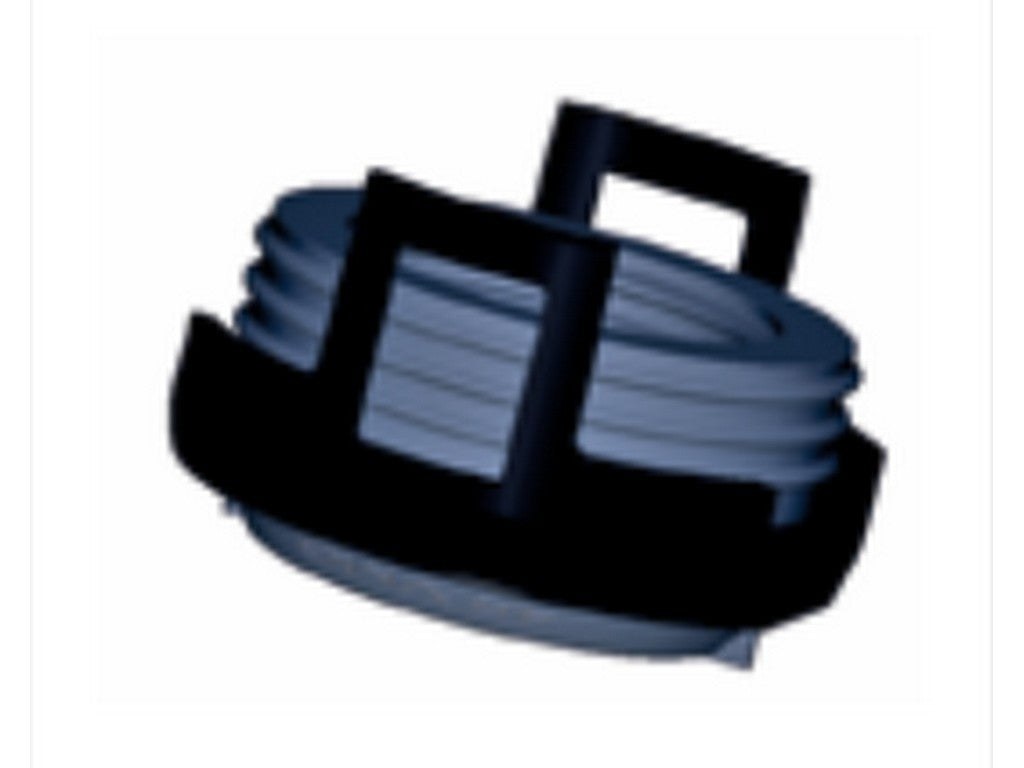

The STAUBLI 15.5410 is a PerforMore seal cover for 50 mm². In practice, it is a spare part belonging to Stäubli's PerforMore high-voltage connector, used where the cable needs to be properly terminated and protected within the connector family.
For an installer or technician, it is interesting because it constitutes a small but crucial part of the overall assembly. When working with the PerforMore series, the components must match in both mechanics and design, and this type of cover helps to support correct assembly.
PerforMore is designed for high-voltage connections in electric powertrains and can be used for conductor cross-sections of 50 mm², 70 mm², and 95 mm². The entire connector family is rated for up to 600 A continuous current, depending on temperature and derating, as well as a rated voltage of DC 1000 V. It is therefore a component that is part of an environment with high demands on both safety and reliability.
If you are working with the PerforMore series, the 15.5410 is therefore not a general seal, but a specific spare part for the 50 mm² version. It should be seen as part of the overall connector assembly, where each individual component has its fixed function.
See datasheet from the manufacturer
Specifications
- Manufacturer: STAUBLI
- MPN: 15.5410
- Type: PM-SEAL50
- Description: PerforMore seal cover 50 mm²
- Spare part for: PerforMore high-voltage connector family
- Conductor cross-sections in the PerforMore family: 50 mm² / 70 mm² / 95 mm²
- Rated current: 600 A at 40 °C (df 1), 475 A at 70 °C (df 0.9), 400 A at 85 °C (LV-215, df 0.8)
- Rated voltage: DC 1000 V
The content is generated using AI - we reserve the right for errors.
Contact HIN for further information about the product.
