STAUBLI 15.0737

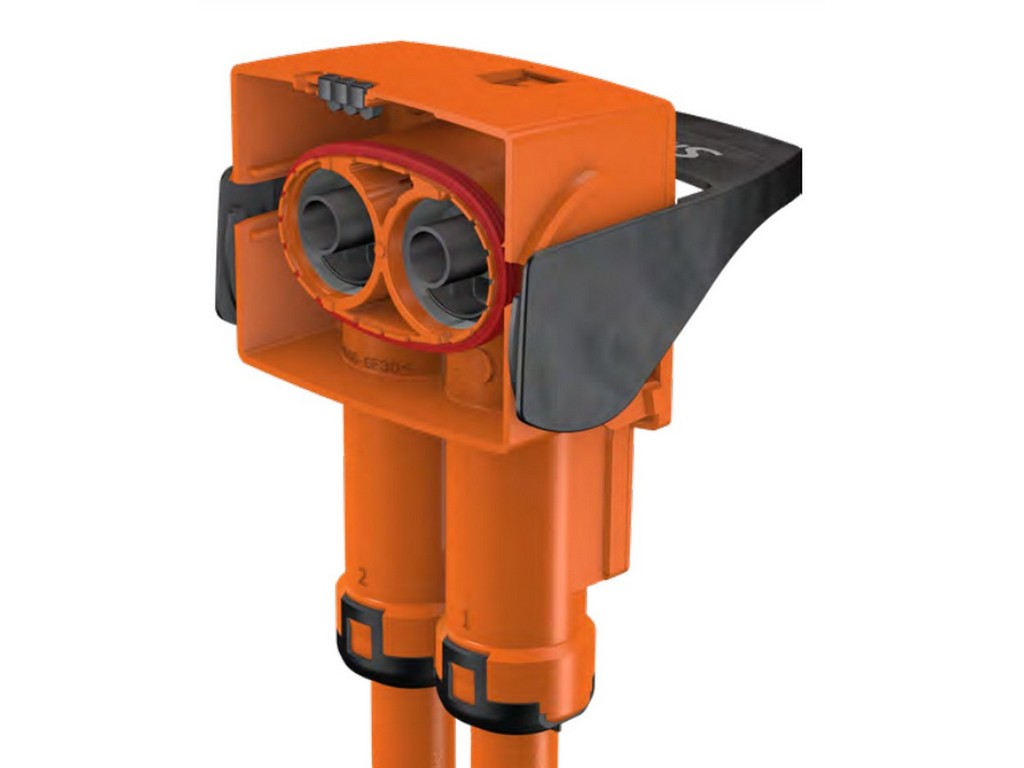

STAUBLI 15.0737 is a socket housing for the PerforMore series, used in high-voltage connections for electric drives and powertrains. It is the part of the connector that forms the fixed socket side in the system, and it belongs to Stäubli's Ø10 mm contact technology with the MULTILAM contact principle.
In practice, it is a component for establishing a safe and robust high-voltage connection where requirements are placed on current conduction, protection, and space constraints. The PerforMore system is developed for demanding applications such as high-power charging, high-voltage batteries, inverters, and high-voltage distribution units.
The technical design is made for professional installations where high current capacity in a compact format is required. Stäubli's documentation specifies a rated current of up to 600 A at 40 °C, a rated voltage of DC 1000 V, and a test voltage of AC 4260 V for 1 minute at 50 Hz. When assembled, the connection is rated with ingress protection IP6K9K and IP68.
Furthermore, emphasis has been placed on vibration resistance, EMC shielding, and a two-stage unlocking mechanism that helps separate interlock and power contacts in the correct order. These are precisely the details that make it relevant in electric vehicles and other high-voltage systems where incorrect connection and accidental disconnection must be avoided.
Typical applications
- Electric and hybrid drivetrains
- High-power charging (HPC)
- High-voltage batteries
- Inverters
- High-voltage distribution units (HVDU)
Specifications
- Manufacturer: STAUBLI
- MPN: 15.0737
- Type: PM-CS10-2SDD-AV
- Product: PerforMore socket housing
- Contact system: Ø10 mm
- Contact type: MULTILAM
- Rated current: up to 600 A at 40 °C
- Rated voltage: DC 1000 V
- Test voltage: AC 4260 V, 1 min/50 Hz
- Ingress protection, assembled: IP6K9K and IP68 (1 m; 1 h)
See datasheet from the manufacturer
