STAUBLI PerforMore 15.0728-0502122

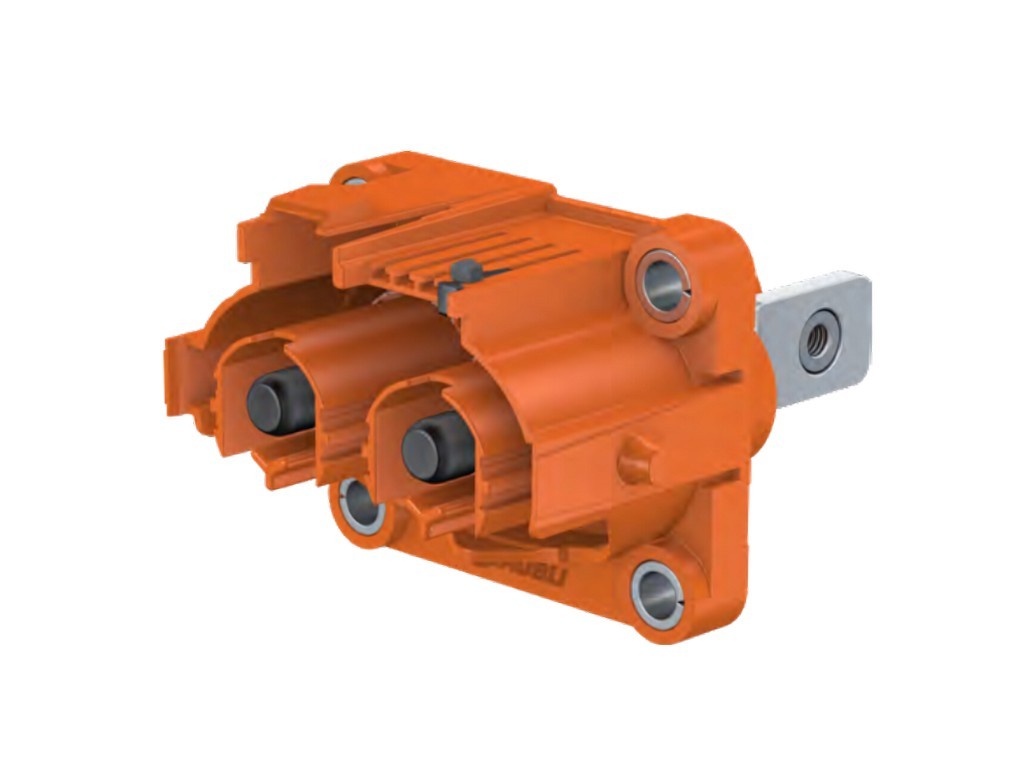

PerforMore 15.0728-0502122 is a two-pole high-voltage connector for e-mobility. It is used where high current and high voltage need to be safely routed between, for example, high-voltage batteries, inverters, and high-voltage distribution units (HVDUs).
Key features of this connector system include its compact design and Stäubli's MULTILAM contact technology with an Ø10 mm contact system. It is designed to handle continuous currents up to 600 A and a rated voltage of DC 1000 V, making it suitable for demanding high-voltage applications where there is no room for compromise in the connection.
Safety during disconnection has also been considered. The connector has a HVIL (high-voltage interlocking loop) with two-stage unlocking, where the HVIL is broken before the power contacts are separated. This allows for a more controlled disconnection and reduces the risk of accidental disconnection.
When assembled, the connector is protected against dust and water with IP68 and IP6K9K ratings, and it has been tested with a test voltage of AC 4260 V for 1 minute at 50 Hz. In practice, this means it is built to operate in environments where high demands are placed on sealing, operational reliability, and safe handling.
See datasheet from the manufacturer
Typical Applications
- High-voltage batteries
- Inverters
- High-voltage distribution units (HVDUs)
Specifications
- Manufacturer: STAUBLI
- MPN: 15.0728-0502122
- Two-pole e-mobility connector
- Ø10 mm contact system with MULTILAM contact technology
- Rated current: up to 600 A continuous
- Rated voltage: DC 1000 V
- HVIL with two-stage unlocking
- Protection rating in assembled condition: IP68 and IP6K9K
- Test voltage: AC 4260 V, 1 min. (50 Hz)
