Product Overview

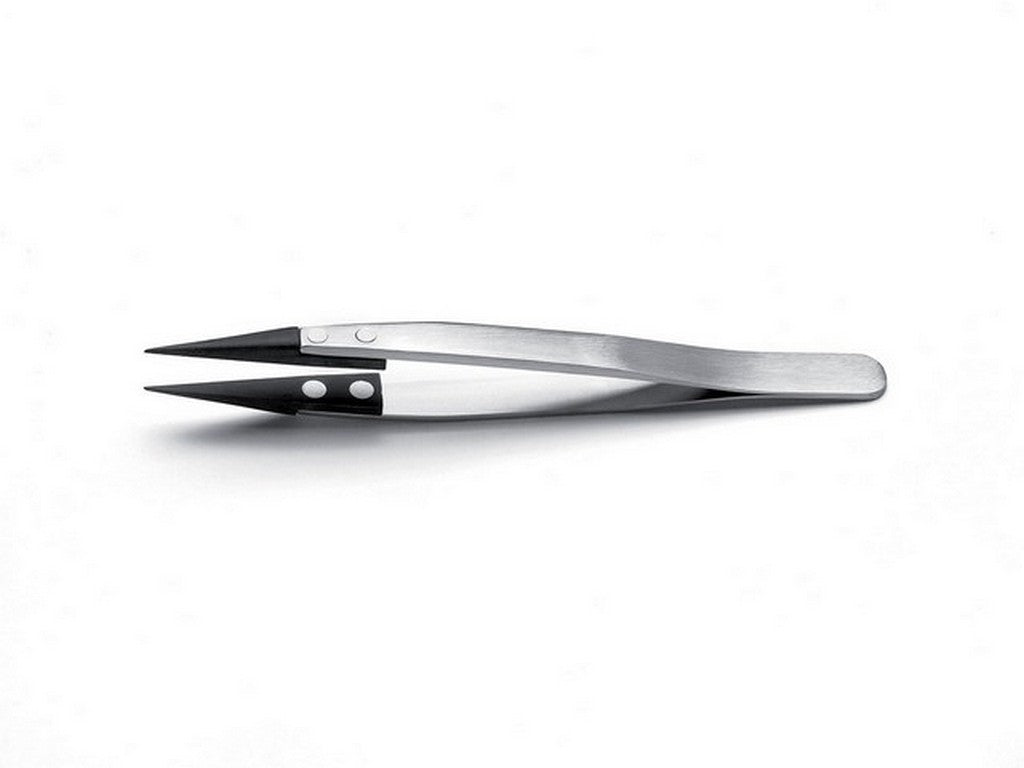

This plastic tip tweezer from IDEAL-TEK, model 259CF.SA.1, is a plastic-tipped tweezer with carbon fiber-reinforced tips. The product's primary function is the handling and holding of small components, where the tips' ESD properties and non-scratching surface are relevant.
Construction and Materials
- Tip Material: Plastic reinforced with Carbon Fiber (CF) — provides ESD and non-scratching properties.
- Body Material: Anti-Magnetic Anti-Acid Stainless Steel (SA) with a sandblasted finish.
- Tip Shape: Straight, fine, pointed, and strong (tip style 259).
- Net Weight: 17.0 g.
Typical Applications
According to the manufacturer's product description, the IDEAL-TEK 259CF.SA.1 is suitable for applications requiring the holding of a small component.
Dimensions
- Overall Length (OAL): 130.0 mm (5.118 in).
- Width (body width): 10.0 mm (0.394 in).
- Height: 16.0 mm (0.630 in).
- Tip Width: 0.50 mm (0.020 in).
- Tip Thickness: 0.45 mm (0.018 in).
Documentation
A manufacturer's datasheet is available for the IDEAL-TEK 259CF.SA.1, specifying materials, dimensions, and tip details. For further technical information, please refer to the manufacturer's datasheet:
View datasheet from the manufacturer
Specifications
- Product Code: 259CF.SA.1
- Product Type: Plastic Tip Tweezers
- Country of Manufacture: Switzerland
- Tip Description: Straight, fine, pointed, strong
- Tip Material: Plastic reinforced with Carbon Fiber (CF)
- Body Material: Anti-Magnetic Anti-Acid Stainless Steel (SA)
- Surface: Sandblasted finish
- OAL: 130.0 mm
- Tip width: 0.50 mm
- Tip thickness: 0.45 mm
- Net Weight: 17.0 g
Source: Manufacturer's product description and datasheet for 259CF.SA.1.
