Product Overview

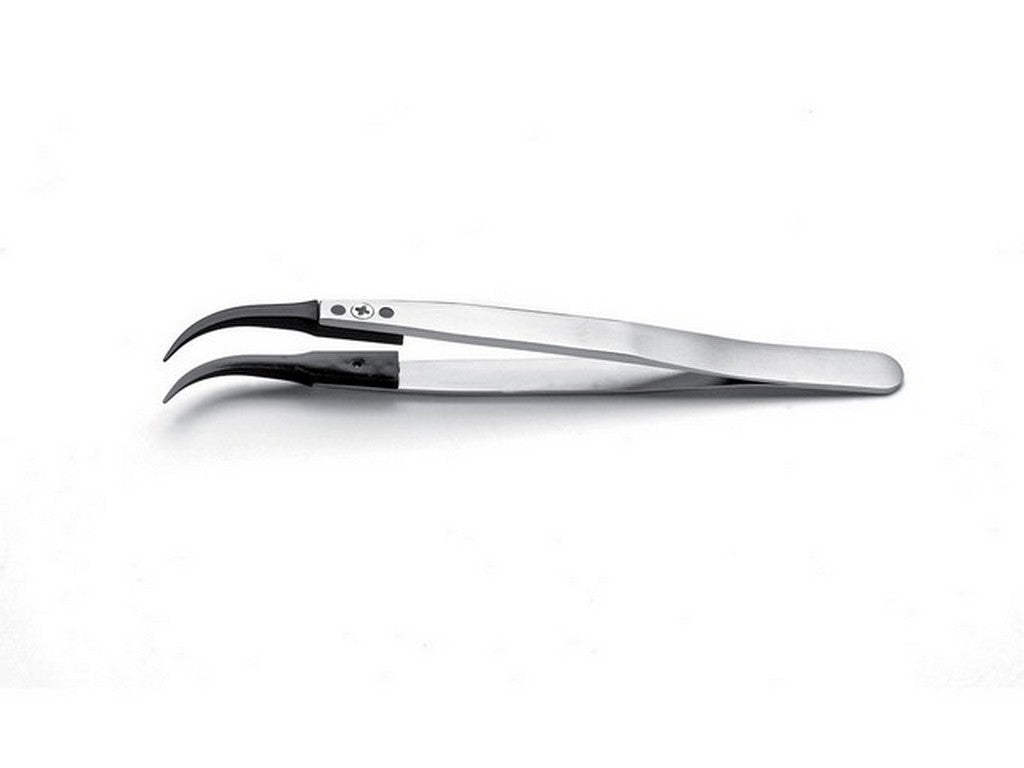

This plastic replaceable-tip tweezer from IDEAL-TEK, model 7CFR.SA.1, is a plastic-based replaceable-tip tweezer with carbon fiber (CF) reinforced tips in a curved, fine finish (A7CF). The 7CFR.SA.1 is designed for precise gripping of small components and combines an SA stainless body material with non-scratching, ESD-safe plastic tips.Materials and Construction
- Body material: Anti-magnetic, anti-acid stainless steel (SA) with sandblasted finish.
- Tip material: Plastic reinforced with carbon fiber (CF).
- Tip shape: Curved, fine (A7CF).
- Safety features: ESD-safe and RoHS compliant.
Documentation
Further technical details and dimensions can be found in the manufacturer's product datasheet.
View datasheet from manufacturer
Typical Applications
The product is suitable for applications requiring the gripping of small components. This application is indicated in the manufacturer's datasheet and describes the function of the tweezers as a tool for secure and precise gripping of small items.
Specifications
- Product Name: 7CFR.SA.1
- Manufacturer: IDEAL-TEK
- Product Code / Part No.: 7CFR.SA.1
- Product Type: Plastic Replaceable Tip Tweezers
- Made in: Switzerland
- Overall Length (OAL): 130.00 mm (5.118 in)
- Width (body): 15.0 mm (0.591 in)
- Height (body): 16.0 mm (0.630 in)
- Tip length: 25.00 mm
- Tip width: 0.50 mm (0.020 in)
- Tip thickness: 0.50 mm (0.020 in)
- Tip opening gap: 10.0 mm
- Tip bend degree: 60°
- Surface Finish: Sandblasted
- ESD: ESD-safe
- RoHS: RoHS compliant
Sources
The manufacturer's product datasheet has been used as the primary source for the above information.
