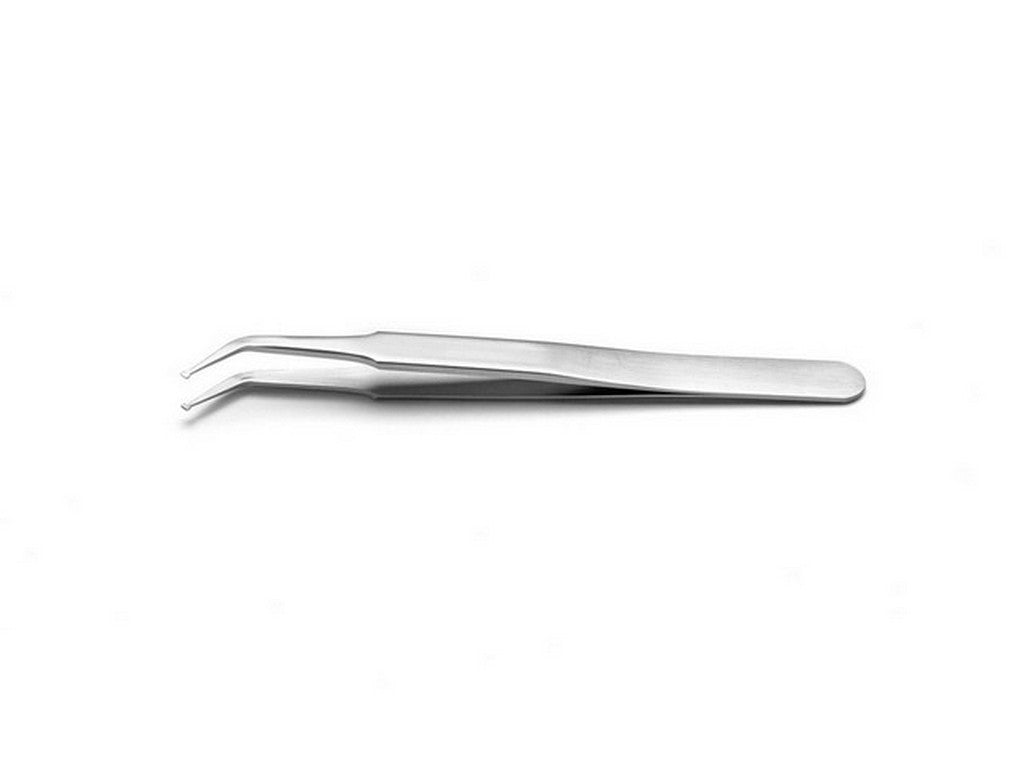

Type SM103 SMD tweezers from IDEAL-TEK
Type SM103 SMD tweezers are SMD tweezers designed for handling and positioning 2- and 3-lead SOT packages at a 45° angle. The product is constructed from Anti-Magnetic Anti-Acid Stainless Steel (SA) with a sandblasted surface and is declared RoHS-compliant. The technical description follows the manufacturer's information and official datasheet.
Design and construction
The tweezers have bent tips with a specified bend degree of 42° and an overall length (OAL) of 115.0 mm. The tips have dimensions specified in the manufacturer's documentation, and the body is made of the stated corrosion- and magnetic-resistant stainless steel with a sandblasted finish.
Documentation
Product information and dimensions can be found in the manufacturer's datasheet. See datasheet from the manufacturer
Typical applications
Type SM103 SMD tweezers are used for handling and positioning 2- and 3-lead SOT packages at a 45° angle, as stated by the manufacturer.
Further notes
The description is based solely on information provided in the manufacturer's short product description and the official datasheet. No other properties or uses are assumed or added.
Specifications
- Product name: Type SM103 SMD tweezers
- Manufacturer: IDEAL-TEK
- Product code / item number: SM103.SA.1.IT
- Product type: SMD tweezers
- Made in: Switzerland
- Application: Handling and positioning of 2- and 3-lead SOT packages at 45°
- Tip: Bent (bent tips), bend degree 42°
- Material: Anti-Magnetic Anti-Acid Stainless Steel (SA) with sandblasted finish
- Overall length (OAL): 115.0 mm
- Width (body): 14.0 mm
- Height (body): 12.0 mm
- Tip dimensions: width 1.60 mm, thickness 0.35 mm, tip length 28.00 mm
- Net weight: 15.2 g
- RoHS: Declared as RoHS-compliant
Source: Manufacturer's datasheet (link in the documentation section).
