Product Overview

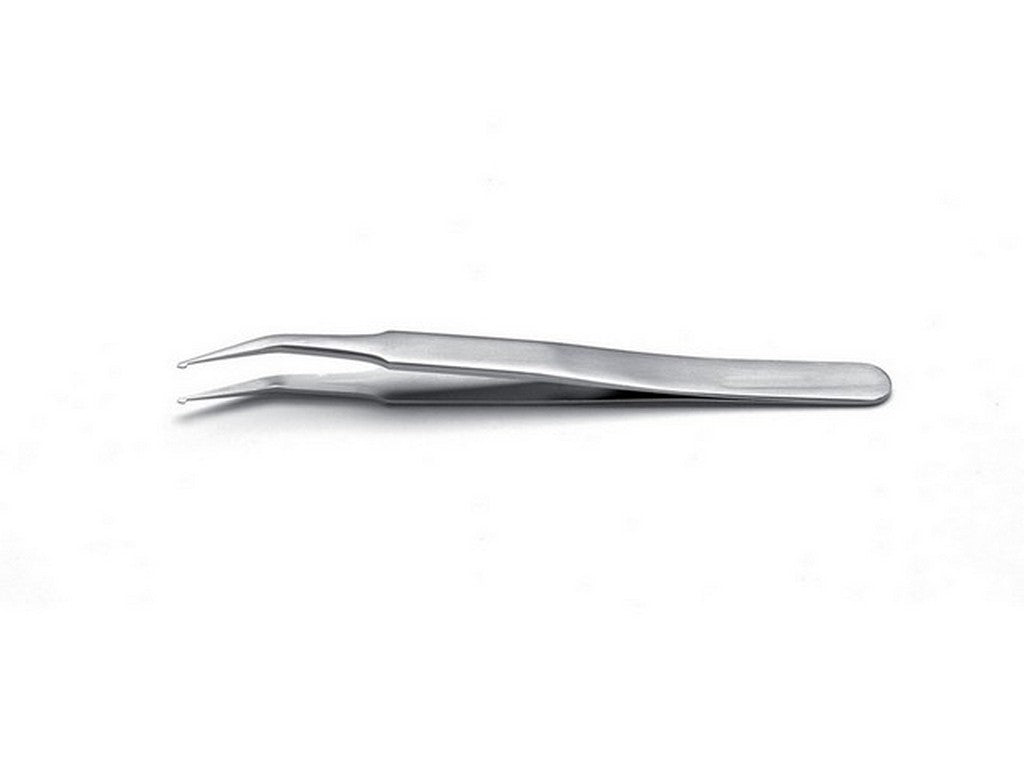

This SMD tweezer, SM117.SA.1 from IDEAL-TEK, is designed for handling and positioning SOT packages. The product is specified by the manufacturer and documented in the official datasheet.Material and finish
- Body: Anti-Magnetic Anti-Acid Stainless Steel (SA)
- Surface: Sandblasted (sandblasted finish)
- Tip: bent (tip description: bent)
Notes on angle
There are two reported values for the tip angle: the product's website mentions that the tip positions SOT packages at a 20° angle, while the manufacturer's datasheet states that the tweezers are suitable for handling and positioning 2- and 3-lead SOT packages at a 45° angle. Both pieces of information are reported as stated by IDEAL-TEK.
Typical applications
The SM117.SA.1 is stated by the manufacturer as suitable for the following:
- Handling and positioning of 2-lead SOT packages
- Handling and positioning of 3-lead SOT packages
Documentation
Official product data can be found in the manufacturer's datasheet:
View datasheet from manufacturer
Specifications
- Product name: SM117.SA.1
- Manufacturer: IDEAL-TEK
- Product type: SMD tweezers
- Body material: Anti-Magnetic Anti-Acid Stainless Steel (SA)
- Coating/finishing: Sandblasted
- Tip: bent
- Overall length (OAL): 120.0 mm (4.724 in)
- Tip length: 30.00 mm (1.181 in)
- Width: 10.0 mm (0.394 in)
- Height: 10.5 mm (0.413 in)
- Tip width: 1.5 - 1.0 mm (0.059 - 0.039 in)
- Tip thickness: 0.40 mm (0.016 in)
- Not reverse-action
- Not ESD-safe
- Net weight: 15.0 g
- RoHS compliant
- Made in: Switzerland
