Product Overview

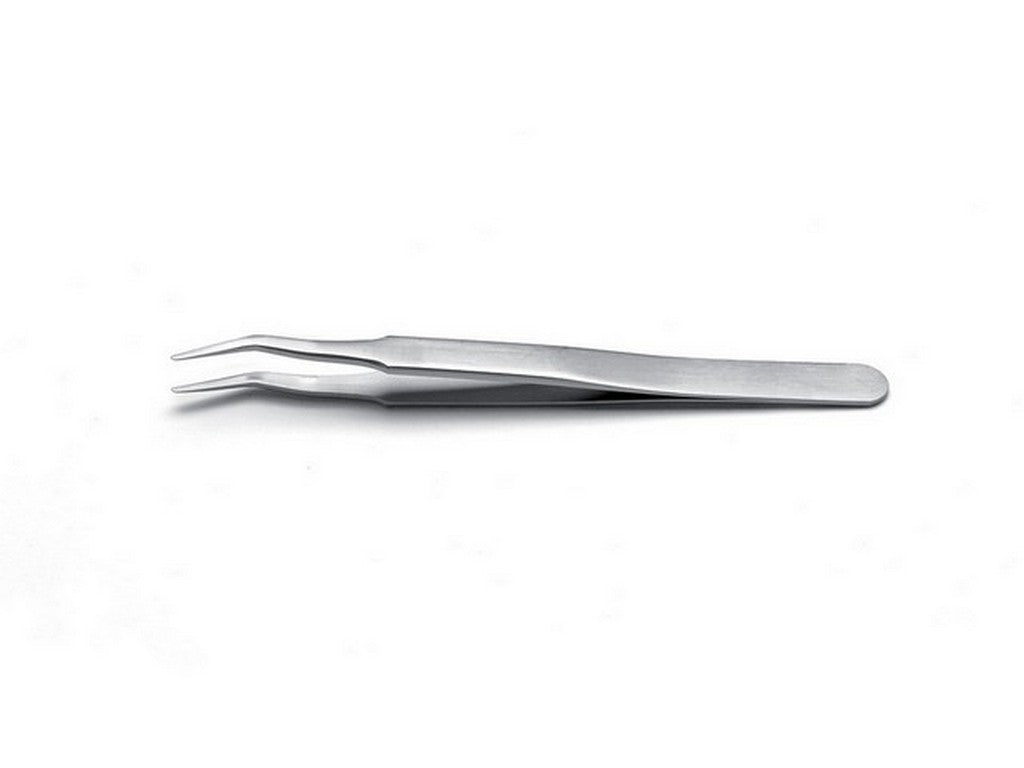

This SMD tweezer from IDEAL-TEK, Ideal-tek SM107.SA.1, is an SMD tweezer designed for positioning flat components at a 60° angle. The product is uniquely identified as type SM107.SA.1 and is manufactured in Switzerland.
Design and materials
- Body material: Anti-Magnetic Anti-Acid Stainless Steel (SA)
- Surface finish: Sandblasted (matte surface)
- Tip: bent, flat
Documentation
For technical details and manufacturer information, please refer to the manufacturer's data sheet:
View data sheet from the manufacturerTypical applications
The Ideal-tek SM107.SA.1 is used for positioning flat components, specifically for positioning components at a 60° angle relative to the tweezer's axis, as indicated in the manufacturer's data sheet. The tips are described as bent and flat, which supports working with flat components.
Specifications
- Product code: SM107.SA.1
- Product type: SMD tweezers
- Made in: Switzerland
- Description: Designed for positioning flat components at a 60° angle
- Tip description: bent, flat
- Coating/finishing: Sandblasted
- Body material: Anti-Magnetic Anti-Acid Stainless Steel (SA)
- Overall length (OAL): 120.0 mm
- Width: 10.0 mm
- Height: 11.0 mm
- Tip length: 32.00 mm
- Tip width: 1.40 mm
- Tip thickness: 0.15 mm
- Tip opening (gap): 8.0 mm
Source: IDEAL-TEK product data sheet
Content generated using AI – we reserve the right for errors.
Contact HIN for further information about the product.
