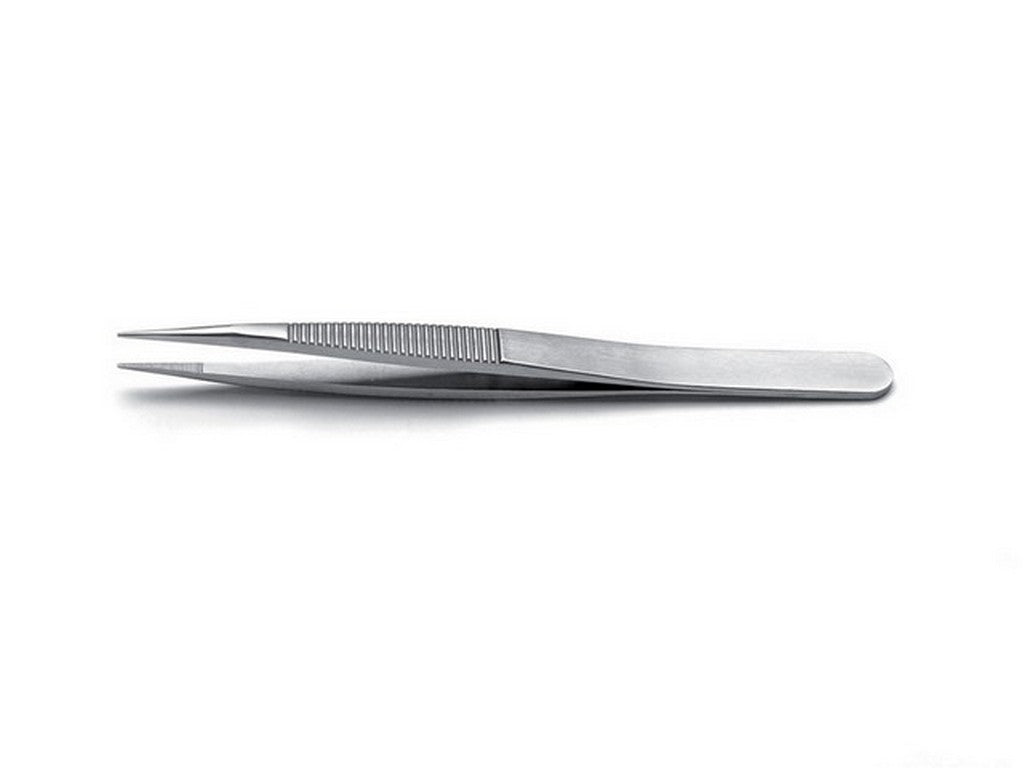

High-precision tweezers: 00D.SA.0
00D.SA.0 is a high-precision tweezer from IDEAL-TEK intended for applications where a component needs to be held very firmly. The tweezer is made of Anti-Magnetic Anti-Acid Stainless Steel (SA) with a sandblasted surface finish and has straight, thick, and square tips with line serration on both the tips and the grip. The product is listed on the manufacturer's official datasheet and documentation.
Construction and materials
- Material: Anti-Magnetic Anti-Acid Stainless Steel (SA)
- Surface finish: Sandblasted
- Tips: Straight, thick, squared, strong, line serrated with superior finish
- Weight: Net weight 20.0 g
Dimensional information
- Overall length (OAL): 120.0 mm
- Width: 10.0 mm
- Height: 12.0 mm
- Tip width: 0.90 mm
- Tip thickness: 0.50 mm
Typical applications
00D.SA.0 is suitable for applications that require holding a component very firmly. This application is directly stated in the manufacturer's product description.
Documentation
For detailed information and official data, please refer to the manufacturer's product datasheet: See datasheet from manufacturer
Specifications
- Product code: 00D.SA.0
- Product type: High precision tweezers
- Material: Anti-Magnetic Anti-Acid Stainless Steel (SA)
- Surface: Sandblasted
- Tips: Straight, thick, squared, line serrated
- OAL: 120.0 mm
- Width: 10.0 mm
- Height: 12.0 mm
- Tip width: 0.90 mm
- Tip thickness: 0.50 mm
- Net weight: 20.0 g
- Max service temperature in air: 925°C
- Manufactured in: Switzerland
The content is generated using AI – we reserve the right for errors.
Contact HIN for further information about the product.
