Description

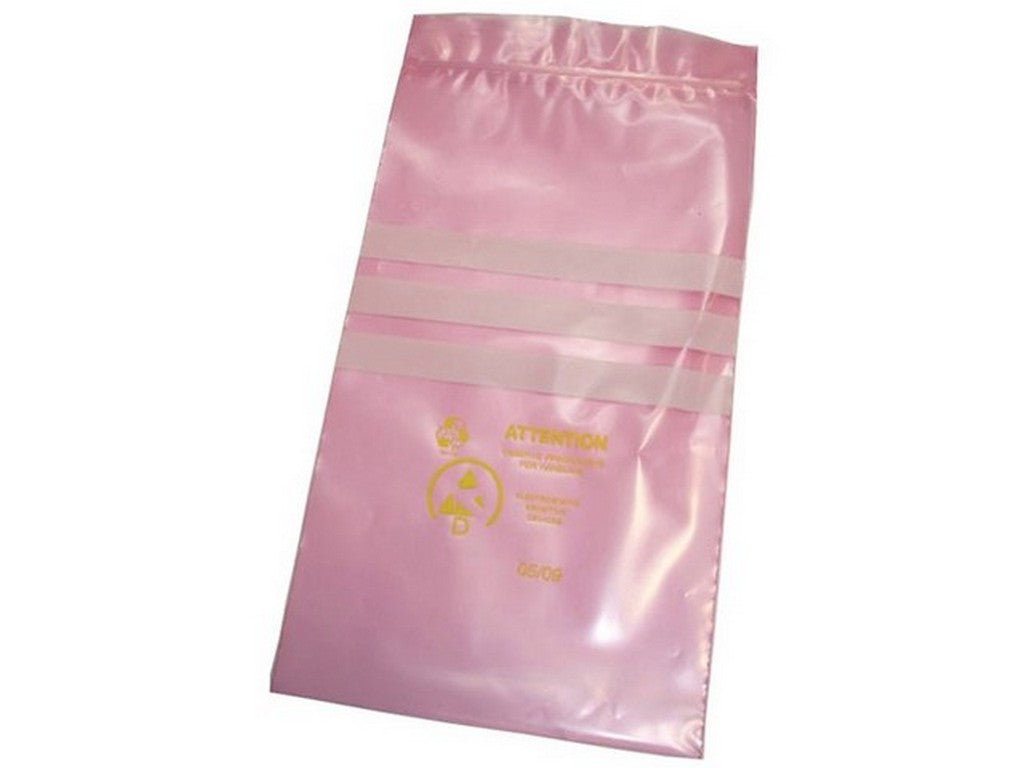

203000 is an antistatic pink zipper bag from DESCO. The product is designed as a dissipative protective bag made of antistatic polyethylene film, transparent with a pink tint and a write-on panel. The bag comes with a double-toothed, locked polyethylene zipper that is impulse-sealed to the bag.Material and Electrical Properties
- Material: Antistatic polyethylene film
- Typical film thickness: 75 micron
- Inner surface resistance (50 % RH): 1 x 10^5 to < 1 x 10^11 ohms (IEC 61340-2-3)
- Outer surface resistance (50 % RH): 1 x 10^5 to < 1 x 10^11 ohms (IEC 61340-2-3)
Additional Features
- Amine-free, non-corrosive and polycarbonate compatible
- Hot-foil print in yellow with descriptive text and ESD protection symbol in accordance with EN 61340-5-1
- Sold in packs of 100 pcs.
- Stated shelf life: 2 years
Documentation
Technical details and further measurements are provided in the manufacturer's product sheet: See manufacturer's datasheet.
Typical Applications
- Packaging of ESDS (electrostatic sensitive) items
- Packaging of non-ESD-sensitive items in ESD protected areas, e.g. passive components and screws
Specifications
- Manufacturer: DESCO
- Part number: 203000
- Size: 75 x 125 mm (3" x 5") with write-on panel and zipper
- Material: Antistatic polyethylene film
- Typical thickness: 75 micron
- Inner/outer surface resistance (50 % RH): 1 x 10^5 to < 1 x 10^11 ohms (IEC 61340-2-3)
- Zip: Double-toothed locked polyethylene closure, impulse sealed
- Physical values: Density 920 kg/m^3 (ASTM D792)
- Tensile strength: MD >10-12 MPa, CD >10-12 MPa (BS 2782)
- Elongation: MD >250-300 %, CD >400-500 % (BS 2782)
- Tear strength: >50 N/mm thickness (BS 2782)
- Chemical properties: Amine-free, non-corrosive, RoHS 2 and REACH compliant
- Packaging: 100 pcs. per pack
- Shelf life: 2 years
- Country of manufacture: United Kingdom
