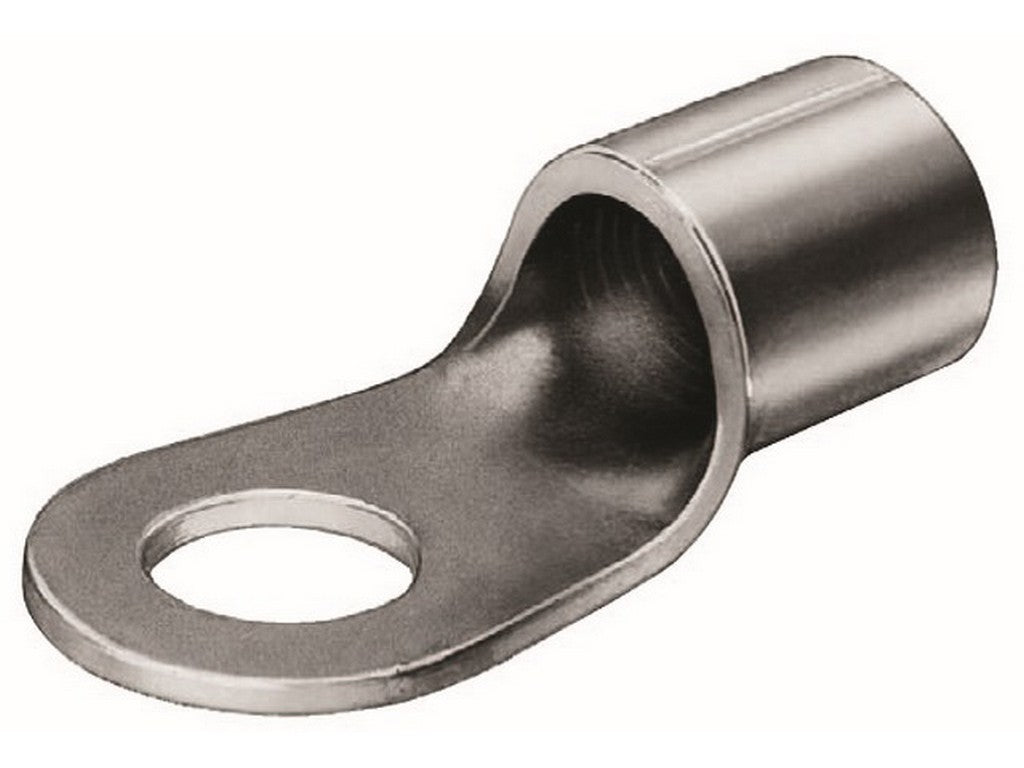

Non-insulated crimp terminal (Quetschkabelschuh) – ICQ23
ICQ23 is a non-insulated crimp terminal (Quetschkabelschuh) in accordance with DIN 46234, supplied by the manufacturer WEITKOWITZ and listed on the Intercable Tools product page. The product is specified for stranded and fine-stranded conductors and has a hard-soldered crimping area.
Product Details
- Product Name: ICQ23
- Manufacturer: WEITKOWITZ
- Type: Non-insulated crimp terminal (Quetschkabelschuh) – reference DIN 46234
- Supplied in packs of 100 pcs.
Typical Applications
ICQ23 is used for connecting stranded and fine-stranded conductors with a maximum conductor cross-section of 2.5 mm². The product's metric screw thread is specified as M3 (metrical thread size 3) and is suitable for applications where a non-insulated cable lug with a hard-soldered crimping area is desired.
Documentation
Product information and dimensions are listed on the manufacturer's product list. Source: See product details at Intercable Tools
Specifications
- Type: Non-insulated Quetschkabelschuh (DIN 46234)
- Manufacturer part number: ICQ23
- Suitable for: Stranded and fine-stranded conductors
- Nominal cross-section (max): 2.5 mm²
- Connection thread size (metric): 3 (M3)
- Dimensions: d1 = 2 mm, D2 = 3 mm, d3 = 6 mm, L = 11 mm, A = 5 mm
- Crimping area: Hard-soldered
- Net weight: 0.07 kg per 100 pcs.
- Packaging: 100 pcs. per pack
