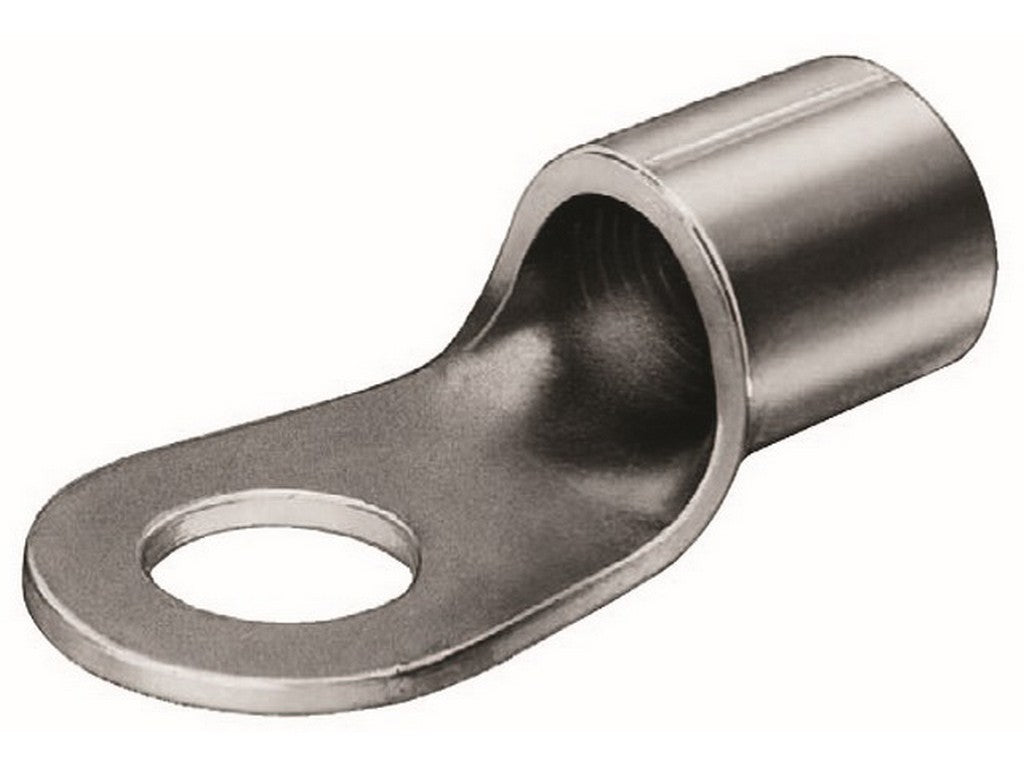

Compression cable lug (crimp cable lug) — ICQ25
This Compression cable lug ICQ25 from WEITKOWITZ is a non-insulated crimp cable lug manufactured in accordance with DIN 46234. The product is specified for multi-stranded and fine-stranded conductors, and the crimp area is hartverlötet (hard-soldered). The product identification on the manufacturer's side is shown as ICQ25.
Technical description
- Standard: DIN 46234 (specified on the manufacturer's product page).
- Application: for multi-stranded and fine-stranded conductors (specified by the manufacturer).
- Crimp area: hartverlötet (hard-soldered), as stated in the product text.
- Package size: 100 pcs (specified in the product table).
Typical applications
The manufacturer's stated application for the product is:
- For connecting multi-stranded conductors.
- For connecting fine-stranded conductors.
- For fastening with metric bolt M5 (Anschlussgewindemaß = 5), as specified in the product table.
Documentation
Product information and dimensions have been verified on the manufacturer's product page. Source: manufacturer's product page.
Specifications
- Manufacturer: WEITKOWITZ (specified in input).
- Manufacturer's part number: ICQ25.
- Standard: DIN 46234 (specified on the product page).
- Nominal cross-section (max): 2.5 mm².
- Anschlussgewindemaß (metric bolt size): 5 (M5).
- Dimensions: d1 = 2 mm; D2 = 5 mm; d3 = 10 mm; L = 14 mm; A = 5 mm.
- Net weight: 0.1 kg per 100 pcs.
- Package size: 100 pcs per package.
- Crimp area: hartverlötet (hard-soldered) — specified by the manufacturer.
