Product Overview

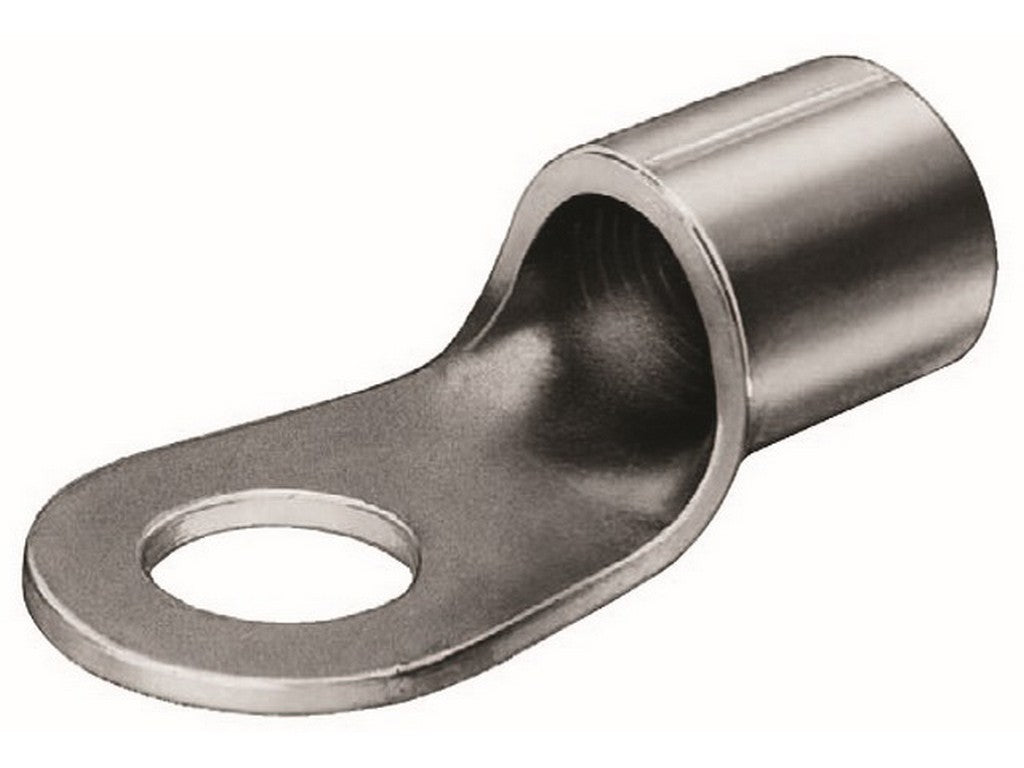

This description covers the Quetschkabelschuh (DIN 46234) ICQ256 from WEITKOWITZ. The product is a non-insulated cable lug according to DIN 46234, intended for multi-stranded and fine-stranded conductors, and is specified for the "hard-soldered crimping range".Function and Construction
The Quetschkabelschuh (DIN 46234) ICQ256 is designed as a cable lug with metric mounting threads and an open collar for conductor insertion. The following specifications are listed on the manufacturer's product sheet and are used here without further interpretation:- Nominal cross-section: 25 mm².
- Connection thread: M6.
- Crimping range specified as: hard-soldered (hartverlötet).
Typical Applications
The product's stated application areas from the manufacturer are:- Used for multi-stranded conductors.
- Used for fine-stranded conductors.
- Designed for crimping in the specified "hard-soldered" crimping range.
Documentation
The information is taken from Intercable Tools' product catalog for DIN Quetschkabelschuh. Please refer to the manufacturer's product page for the verified table and product data: See manufacturer's product page.Specifications
- Product name: Quetschkabelschuh (DIN 46234) ICQ256.
- Manufacturer: WEITKOWITZ (provided in input).
- Type number / manufacturer no.: ICQ256.
- Nominal cross-section: 25 mm².
- Connection thread (metric): M6.
- Dimensions (provided by Intercable): d1 = 7 mm, D2 = 6 mm, d3 = 12 mm, L = 25 mm, A = 11 mm.
- Packaging unit: 100 pcs.
- Net weight: 0.69 kg per 100 pcs.
The content is generated using AI – we reserve the right for errors.
Contact HIN for further information about the product.
