Metal-in shielding bubble bag 100 mm x 150 mm (DESCO 200510)

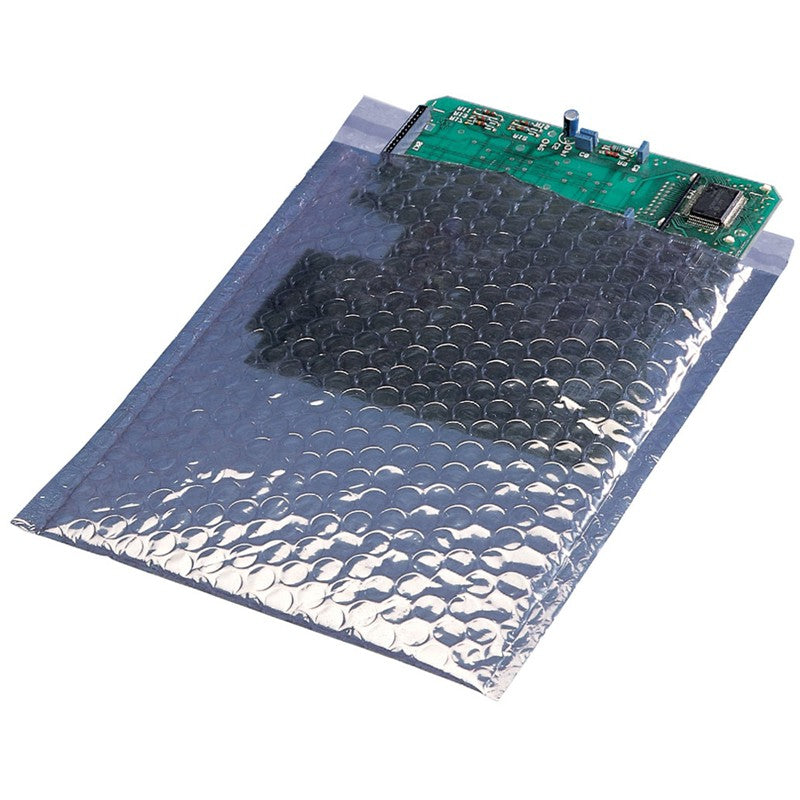

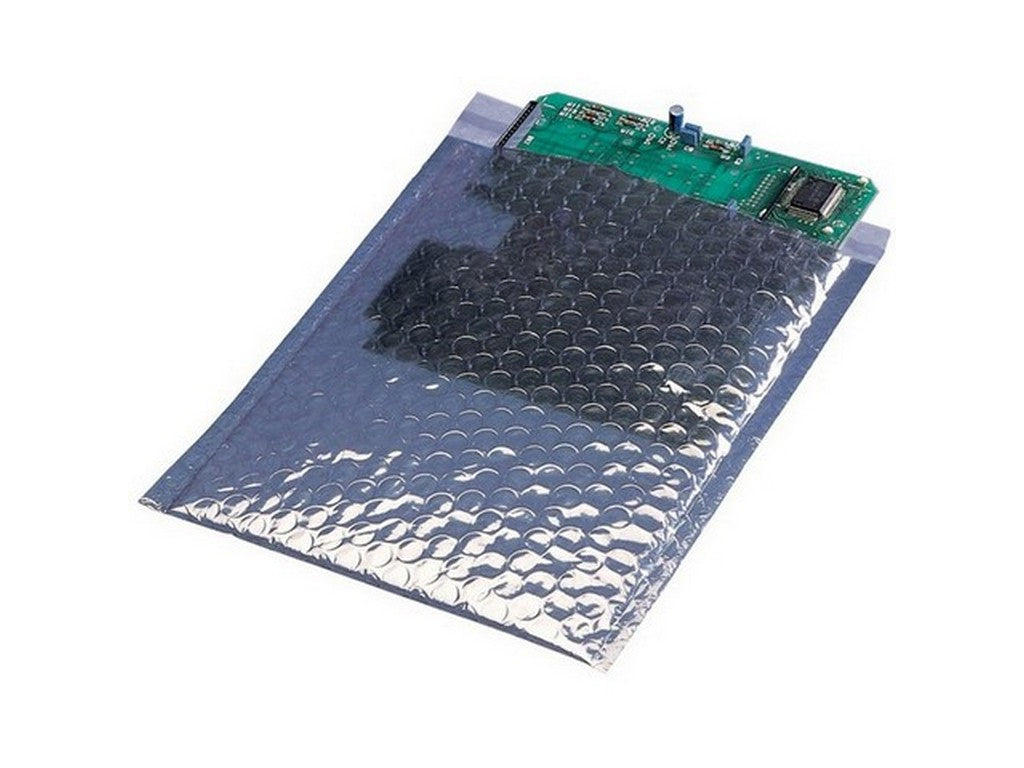

This Metal-in shielding bubble bag from DESCO is a shielding and mechanically protective bubble bag constructed from metallized film laminated to antistatic pink bubble film. The product provides a combined Faraday cage effect and an air gap for electrical shielding, along with physical shock absorption. The bag's flap seals the contents, and the bag's partially transparent material allows for identification of contents without opening.
Material and electrical properties
- Metallized film laminated to antistatic pink bubble film (Metal-in shielding layer + pink dissipative open cell cushioning layer).
- Outer and inner surface resistance: 1 x 10^4 to < 1 x 10^11 ohms (IEC 61340-2-3).
- Static decay: <0.2 s (MIL-STD-3010 4046).
- Discharge shielding: <20 nJ (IEC 61340-4-8).
Typical applications
- Protection of ESD-sensitive contents against electrostatic discharges during packaging and storage, based on the product's specified shielding and surface properties.
- Use where combined electrical shielding and mechanical damping are desired, as the bubble structure provides physical protection along with the metallic layer.
Documentation
The product's dimensions, electrical and physical properties, and compliance with standards are stated in the manufacturer's data sheet: See manufacturer's data sheet
Specifications
- Drawing number: 200510
- Size: 100 mm x 150 mm + 25 mm flap
- Sales unit: 10 pcs. per pack
- Material construction: Metallized film laminated to antistatic pink bubble film
- Outer/inner surface resistance: 1 x 10^4 to < 1 x 10^11 ohms (IEC 61340-2-3)
- Static decay: <0.2 s (MIL-STD-3010 4046)
- Discharge shielding: <20 nJ (IEC 61340-4-8)
- Bubble diameter: 10 mm; bubble height: 5 mm
- Material thicknesses: Polyester 13 μm; Antistatic PE 60 μm
- Tensile strength: >15 lbs/in² (ASTM D882)
- Puncture resistance: >25 lbs (FTMS 10001C)
- Transparency: >15 % (ASTM D-1003-77)
- Meets: EN 61340-5-1 and packaging requirements in EN 61340-5-3 (excluding Packaging Marking)
- Manufactured in: United Kingdom
- RoHS 2 / REACH: Manufacturer's statement that no RoHS 2 restricted materials or REACH SVHC are intentionally added as of 2020/06/25
