Product Category: STATIC SHIELD BAG, 1000 SERIES METAL-IN
Description

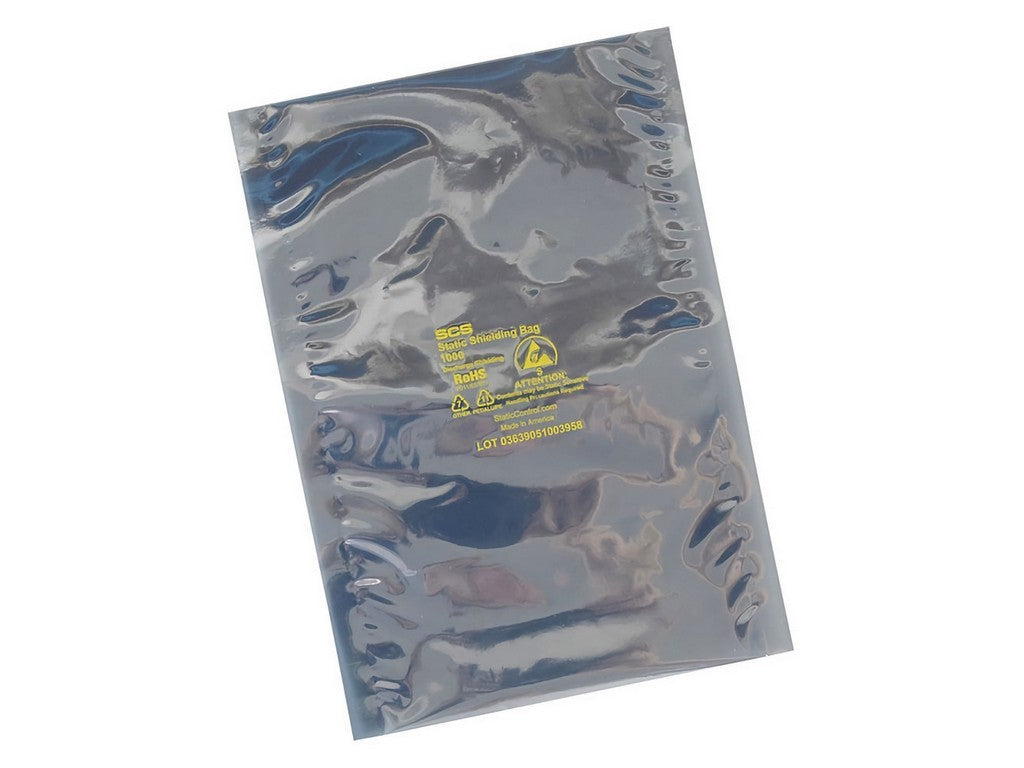

The STATIC SHIELD BAG, 1000 SERIES METAL-IN from DESCO (SCS) is a pre-opened metal-in static shielding bag as specified by the manufacturer. The product has a bag size of 305 x 610 mm and comes in packs of 100 EA. The material is a Metal-In film laminate with a specified thickness of 0.0028 in (2.8 mil).Technical Specifications
- Film thickness: 0.0028 in (2.8 mil)
- ESD shielding: < 10 nJ according to ANSI/ESD STM11.31
- Surface resistance (outer/inner): 1 x 10^4 to < 1 x 10^11 ohms (dissipative range) according to ANSI/ESD STM11.11
- Static Decay: < 2 seconds (ETS 406D)
- Transparency: 40% (Tobias)
- Packing size: 100 EA per package (as specified by the manufacturer)
Documentation
An official technical document for the 1000 Series is available from the manufacturer. View manufacturer's datasheetTypical Applications
- Used for static shielding of components and devices where ESD shielding is required (the product name and specifications indicate a shielding function).
- Compatible with pre-opened bags on a roll and intended for use in in-line bagging situations, as indicated in the manufacturer's series description.
Specifications
- Manufacturer: DESCO (SCS brand)
- Manufacturer part number: 1001224
- Product name: STATIC SHIELD BAG, 1000 SERIES METAL-IN
- Bag size: 305 x 610 mm
- Packaging: 100 EA per package
- Metal-In film thickness: 0.0028 in (2.8 mil)
- ESD shielding energy: < 10 nJ (ANSI/ESD STM11.31)
- Surface resistance: 1 x 10^4 to < 1 x 10^11 ohms (ANSI/ESD STM11.11)
- Static decay: < 2 seconds (ETS 406D)
- Transparency: 40% (Tobias)
- Source: Manufacturer's 1000 Series technical document
