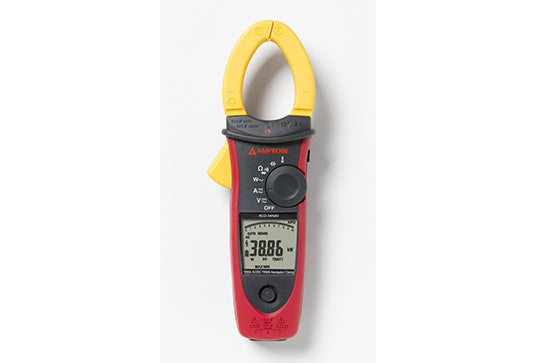

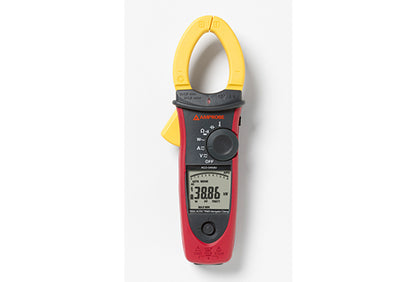

This clamp meter from AMPROBE
The ACDC-54NAV (Amprobe ACDC-54NAV) is a clamp meter designed for direct measurement of AC and DC current and voltage. The instrument's core functions are specified by the manufacturer and include True-rms measurements, a wide measuring range for both current and voltage, and temperature monitoring.Primary functions
- AC/DC current up to 1000 A (ACDC-54NAV).
- AC/DC voltage up to 1000 V.
- True-rms measurement technology for accurate measurements in noisy signals.
- Temperature measurement from -50 °C to 1000 °C.
- Ability to measure power and power factor up to 1000 kW, as well as reporting total harmonic distortion (THD) and individual harmonics.
- Jaw opening that accepts conductors up to 1.6 in (40 mm).
Safety and operation
- Safety rating: CAT IV 600 V / CAT III 1000 V (as stated by the manufacturer).
- Built-in non-contact voltage detection (NCV) and work light (flashlight) in the jaw for illuminating dark panels.
- Functions such as inrush current measurement, phase rotation indication, and low-pass filter for measuring on variable frequency drives are specified by the manufacturer.
- Additional user functions such as Min/Max, Smart Data Hold, Peak Hold, and continuity beeper are stated by the manufacturer.
Typical applications
- Checking phase rotation on 3-phase motors using the phase rotation indicator (directly stated in the manufacturer's material).
- Measuring inrush current on appliances and motors (function specified by the manufacturer).
- Analysis of total harmonic distortion (THD) and individual harmonics (1–25) as specified by the manufacturer.
- Measuring voltage and frequency on variable frequency drives using the low-pass filter function.
For further information, the manufacturer's product page can be consulted as a source.
See manufacturer's product page
Specifications
- Product name: Amprobe ACDC-54NAV / ACDC-54NAV.
- Manufacturer: AMPROBE.
- Item number / SKU: 3729989.
- AC/DC current: up to 1000 A.
- AC/DC voltage: up to 1000 V.
- True-rms measurement technology.
- Temperature range: -50 °C to 1000 °C (-50 °F to 1832 °F).
- Power/power factor: up to 1000 kW.
- Reporting of THD and individual harmonics (1–25).
- Jaw opening: up to 1.6 in (40 mm).
- Inrush current measurement and phase rotation indicator.
- Non-contact voltage detection (NCV) and built-in work light in the jaw.
- Safety classification: CAT IV 600 V / CAT III 1000 V.
