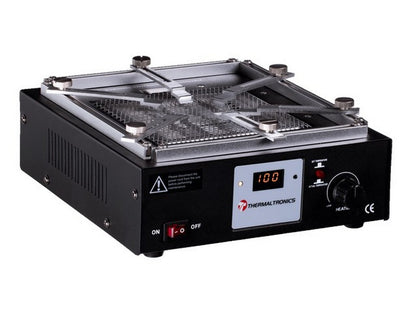

Infrared Preheater — TMT-PH200
The TMT-PH200 is an infrared preheater designed for 220–240 VAC operation. The unit has a power output of 600 W and a documented temperature range from 100 °C to 380 °C. The TMT-PH200 uses a quartz infrared heating element and is controlled via a sensor-based feedback circuit with an adjustable temperature knob and digital temperature display.
Functional features
- Operating voltage: 220–240 VAC.
- Power: 600 W.
- Temperature range: 100 °C–380 °C.
- Heating element: quartz infrared heater.
- Control: sensor feedback control loop, adjustable temperature knob and digital display.
- Heating area: 130 mm × 130 mm.
- Maximum allowed PCB size: 140 mm × 185 mm.
- Fuse: 250 V 5 A (specified on the manufacturer's website).
- Dimensions (W × H × D): 220 mm × 73 mm × 250 mm; weight: 2.1 kg.
Typical applications
According to the manufacturer, the TMT-PH200 is suitable for preheating in leaded and lead-free processes. The sensor-controlled feedback loop and digital display ensure control of the surface temperature within the specified range.
Documentation
Further product information and the specified specifications can be found on the manufacturer's product page: Thermaltronics product page.
Specifications
- Product name: TMT-PH200.
- Manufacturer: THERMALTRO.
- Input Line Voltage: 220–240 VAC.
- Power: 600 Watts.
- Temperature range: 100 °C – 380 °C.
- Heating area (W × L): 130 mm × 130 mm.
- Max allowed PCB size (L): 140 mm × 185 mm.
- Heating element: quartz infrared heater.
- Control: sensor feedback control loop, adjustable temperature knob, digital display.
- Fuse: 250V 5A.
- Dimensions: 220 mm × 73 mm × 250 mm.
- Weight: 2.1 kg.
