Product Overview

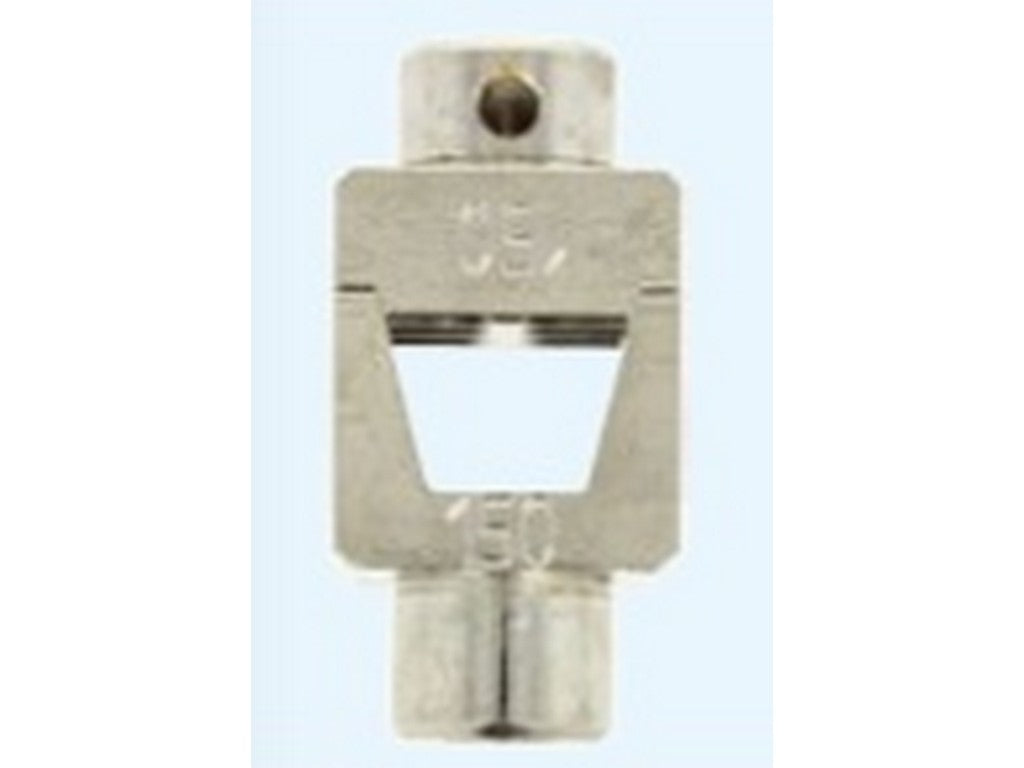

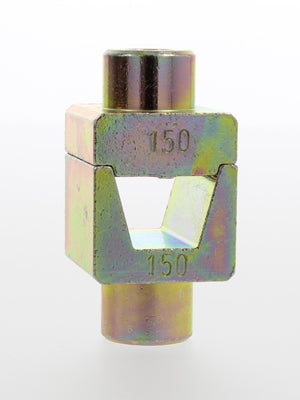

Crimp die W903286 is an interchangeable insert from EISENACHER designed for the EAP240 hand crimping tool. The product is specified for crimping a single wire-end ferrule with a conductor cross-section of 150 mm² and utilizes a trapezoidal (TRAPEZ) crimp profile.
Application and Function
Crimp die W903286 is installed in the EAP240 as one of the compatible interchangeable insert sizes. The insert is exclusively intended for the mechanical crimping of single wire-end ferrules with the specified cross-sectional size. The specified crimp profile is trapezoidal (TRAPEZ), which is the manufacturer's designation for the insert's geometry.
Compatibility and Position in the Insert Series
- Stated as compatible with the EAP240 hand crimping tool.
- Identified by the manufacturer as the 150 mm² insert in the EAP240 series insert range (inserts for 25 mm² to 240 mm²).
The description is based on the manufacturer's information that W903286 is listed as one of the interchangeable crimp dies for the EAP240, specifically for 150 mm² with trapezoidal crimping.
Specifications
- Manufacturer: EISENACHER
- Manufacturer's article number: W903286
- Compatibility: EAP240 hand crimping tool (insert)
- Application: Crimping of a single wire-end ferrule
- Cross-section (stated): 150 mm²
- Crimp profile: Trapezoidal (TRAPEZ)
The content is generated using AI – we reserve the right to make errors.
Contact HIN for further information about the product.
