STAUBLI TB8-17

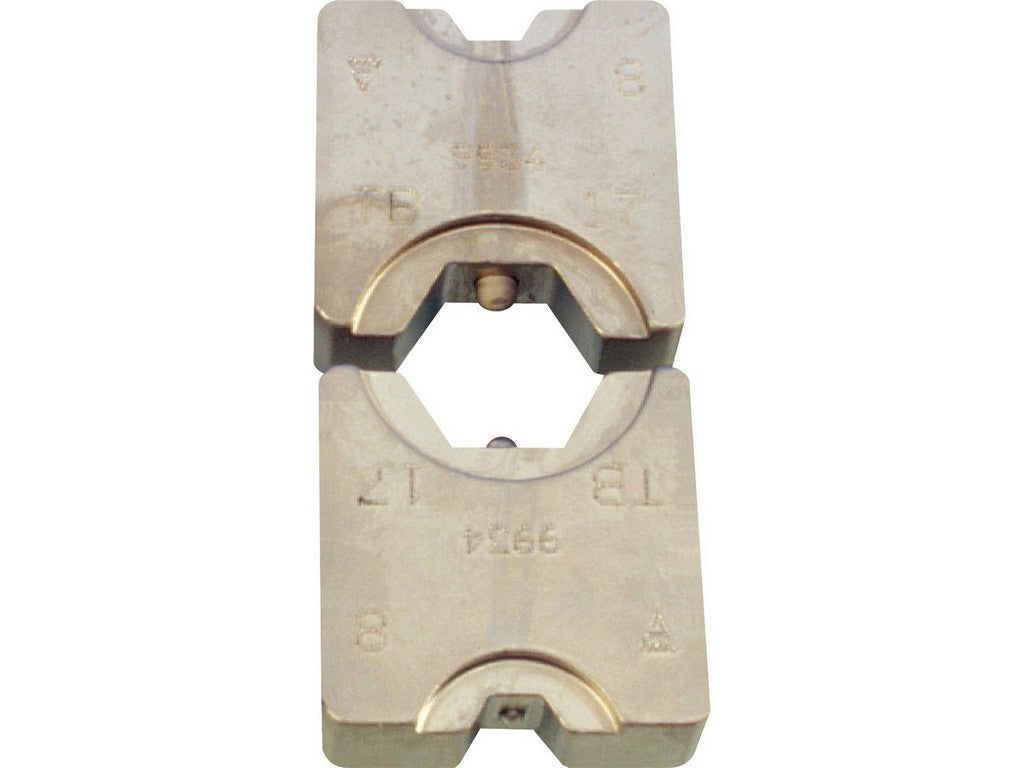

The TB8-17 is a crimping die insert for Stäubli's crimping pliers. It is used when a conductor needs to be crimped correctly into a contact with the right tool and the right dimension. In this case, it is not the pliers themselves, but the insert that determines which conductor size can be crimped.
The insert is specified for conductor cross-sections of 10 mm² and 70 mm², corresponding to AWG 8 and 2/0. Stäubli's documentation also specifies stripping lengths and control measurements for the two sizes, so that the conductor can be prepared correctly and the crimping can be checked to ensure it ends up as it should.
In practice, it is a spare part and a working tool for installers working with Stäubli's crimping solutions. It allows the same pliers to be used for different conductor sizes, so the tool can be adapted to the task at hand.
When crimping, it is important to use the tools specified by Stäubli themselves for the task and to follow the assembly instructions. This is how a consistent and technically correct connection is ensured in professional work.
See datasheet from the manufacturer
Typical applications
- Crimping of conductors in Stäubli's crimping solutions
- Adaptation of crimping pliers for conductor cross-sections 10 mm² and 70 mm²
- Assembly work in electrical engineering and industrial installations
Specifications
- Manufacturer: STAUBLI
- MPN: 18.3711
- Type: Crimping die insert
- Stäubli designation: TB8-17
- For conductor cross-section: 10 mm² and 70 mm²
- AWG: 8 and 2/0
- Stripping length: 13 mm at 10 mm² and 26 mm at 70 mm²
- Control measurement: 6.3 mm at 10 mm² and 13.4 mm at 70 mm²
- Documented in Stäubli's official assembly/operating instructions
The content is generated using AI - we reserve the right for errors.
Contact HIN for further information about the product.
